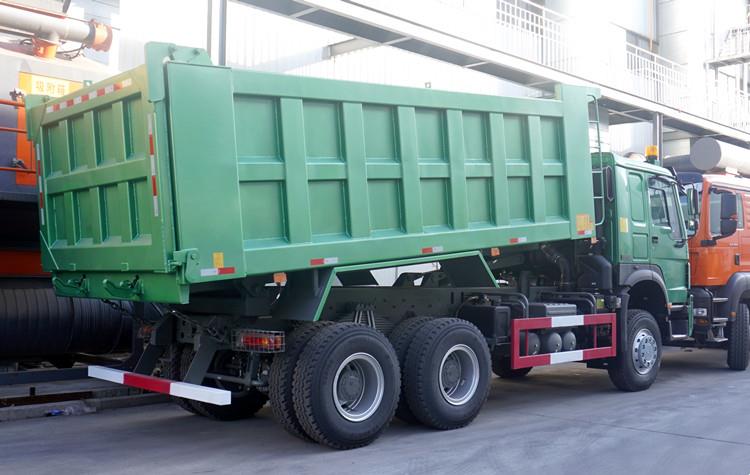

Howo 6x4 Tipper Semi Trailers

Description:

Sino Truck is the 3rd largest Truck manufacturer in China. Howo Tipper Truck Trailers for sale are sold extensively throughout Africa.

Howo 371 6x4 tipper truck trailer in Ghana has excellent power, stable and reliable performance, economy and comfort reach the international level.

Its safety, reliability and intelligence level are in line with international standards.

How Much is Tipper | Prices of Howo 6x4 Tipper Semi Trailers for Sale in Ghana Kumasi

How Much is Tipper | Prices of Howo 6x4 Tipper Semi Trailers for Sale in Ghana Kumasi

How Much is Tipper | Prices of Howo 6x4 Tipper Semi Trailers for Sale in Ghana Kumasi

Specification:

CHASSIS MODEL: ZZ4257V3241W

OVERALL DIMENSION: 6900*2550*3450mm

DRIVING TYPE: LHD (RHD is optional)

CABIN: HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.

ENGINE:

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

Engine model: D12.42, Euro 2, 420 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 11.596 L

TRANSMISSION:

HW19712, 12F & 2R

Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

STEERING: ZF power steering, model ZF8118, hydraulic steering with power assistance;

FRONT AXLE :

HF9, 1×9000 KGS

Steering with doubleT-cross section beam

REAR AXLE:

HC16, 2×16000 KGS

Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.

Ratio: 4.42

PROPELLER SHAFT: Double universal joint propeller shaft with gear-shaped coupling flange

CHASSIS:

Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members

Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer

BRAKE:

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

ELECTRICS:

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

TYRES: 315/80R22.5, one spare tyre

FUEL TANK: 400L

FIFTH WHEEL: 90#
