Product Description:

Howo a7 dump truck 371 refers to a that unloads goods by hydraulic or mechanical lifting, also known as a tipper truck. It is composed of automobile chassis, hydraulic lifting mechanism, cargo compartment and power take-off device.

Since the 6x4 cheap dump truck for sale can automatically tip over for unloading at a certain angle, it greatly saves unloading time and labor, shortens the transportation cycle, improves production efficiency, and reduces transportation costs. Howo a7 dump truck is a commonly used special transportation.

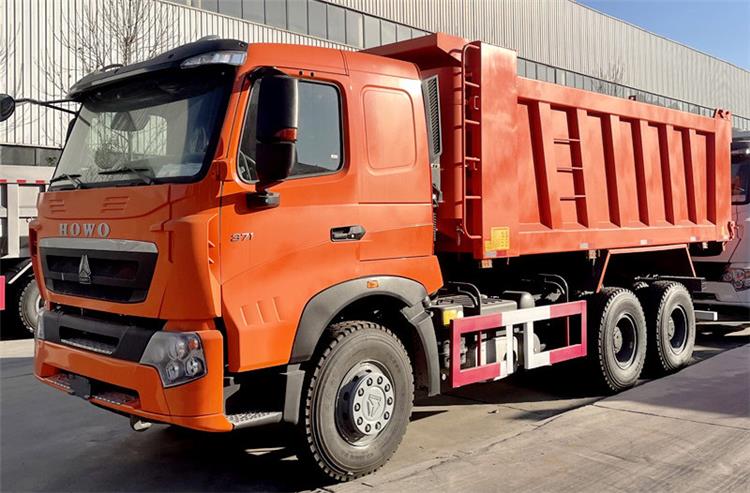

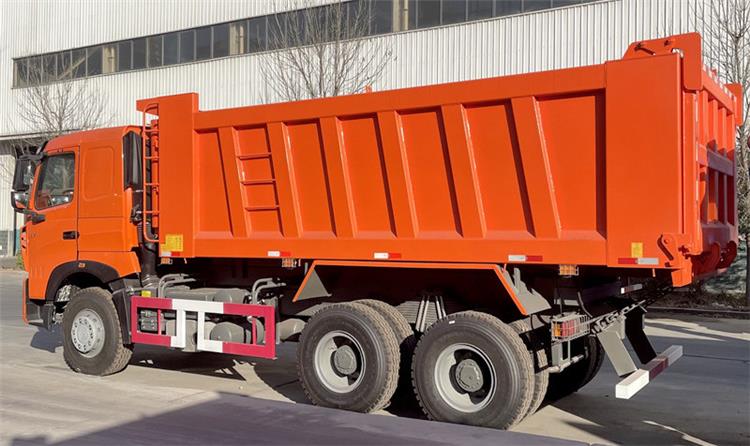

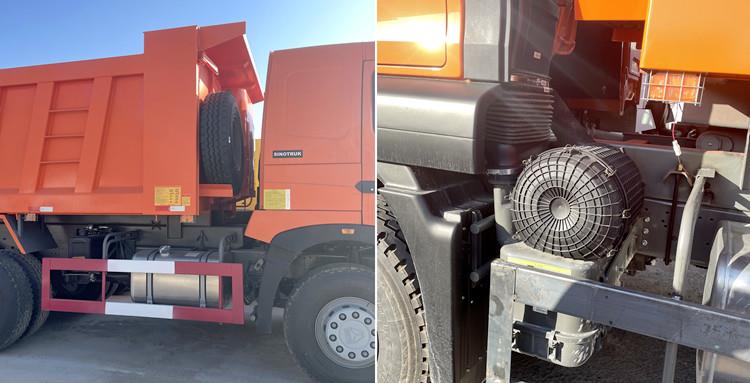

HOWO A7 371 6x4 Cheap Dump Truck for Sale Cost

HOWO A7 371 6x4 Cheap Dump Truck for Sale Cost



Specification:

MODEL: ZZ3257N3847N1B

ENGINE:

Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water

cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system

Maximum output: 371PS (273kW) at 2000 rpm

Maximum torque: 1560Nm at 1200-1500rpm

Bore: 126mm

Stroke: 130mm

Displacement: 9.726L

CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance

TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse Ratio: 5.73

FRONT AXLE: New HF9 series, with drum brake system

REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.

STEERING: ZF8118, hydraulic steering with power assistance  Ratio: 22.2-26.2:1

WHEELS&TYRES:

Rims: 8.5-20,10 hole-steel

Types: 12.00R20

CARGO BODY: 5600*2300*1500, bottom 8mm, side 6mm, Front lift system China brand (Other sizes are optional)

DRIVER CAB:

A7-W,Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner

DIMENSIONS(in mm):

Wheel base (mm): 3800+1350

Front wheel track (mm): 2022/2041

Rear wheel track (mm):1830/1830

Overhang(front/rear) (mm):1500/2295

Approach angle(°):19

Departure angle(°):20

Overall Dimension (mm):9745x2496x3550

WEIGHT(in kg):

Permissible loading capacity (kg):12370

Dead weight (kg):12500

Gross weight (kg):25000

Front axle loading capacity (kg): 9000

Rear axle loading capacity (kg):2*16000

PERFORMANCE:

Maximum driving speed(km/h):75(reference data)

Maximum gradeability (%):36

Minimum ground clearance(mm):314

Minimum turning radius (m):15

Fuel consumption(L/100km):40(reference data)



About SINOTRUK:

TITAN is authorised distributor of SINOTRUK, We produce New SINOTRUK Howo Trucks  Trailer according to your order.



SINOTRUK is China's first heavy duty truck trailer manufacturer, initially founded in 1956 and the cradle of China's heavy duty truck trailer industry. SINOTRUK once manufactured China's first heavy duty truck trailer, and it is China's first company to comprehensively introduce foreign heavy duty truck trailer manufacturing technology of complete .

Today, SINOTRUK has developed into China's largest heavy duty truck trailer manufacturing base and made significant contributions to the development of China's heavy duty truck trailer industry and national economic growth.



SINOTRUK has been adhering to implementing independent innovations, carrying out its leading strategy in technologies and building its core competitiveness with intellectual property rights. It has the most patents in China's automotive industry.

SINOTRUK’s main truck trailer models include HOWO, HOWO A7, HOHAN, main truck types include truck tractor trailer, tipper truck trailer, cargo truck trailer, truck chassis, fuel tanker truck, water tank truck, and other special trucks.
