Product Description:

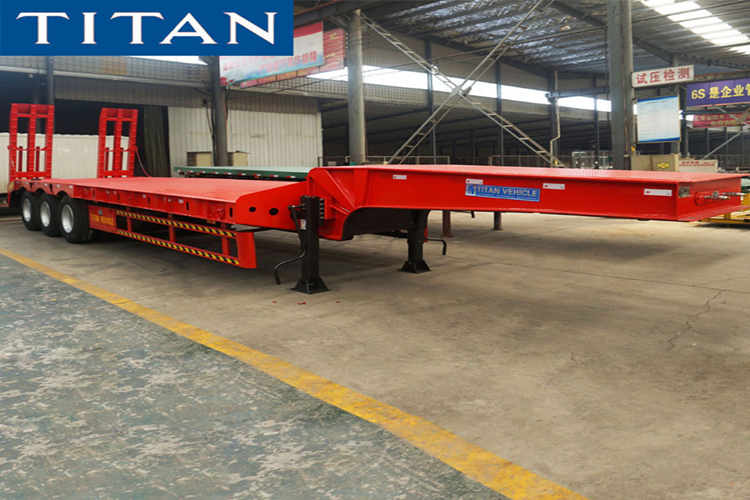

TITAN 3 axle 80 ton low bed trailers are widely used in heavy machines transportation.

Advantage:

1. The beam is made of Q460C high-strength manganese steel, which has high strength and good toughness capacity.

    The height of the longitudinal beam is 550mm and the thickness is 14mm;

    The upper beam is 22mm thick and 220mm wide;

    The lower beam is 22mm thick, 220mm wide, and the neutral plate is 14mm

2.Side beam: The side beam is made of T700 high-strength steel, 300mm high, 140mm wide, 8mm thick "H" design, the bearing capacity is twice that of other steels, and will not deform for 10 years.

3.Side beam tires (tire pockets): Titan will reinforce the entire double web at the low flat side beam tires (rear 3 axles).

4.The link in the middle of the beam is also made of high-strength steel with a thickness of 6mm. Effectively link the main beam and side beam into a whole. The beams reinforce the vertical plates at the trapezoidal welds to prevent the vertical plates from being deformed by pressing down on both sides.

5.Inclined Strut:The side beam supports 6mm thick manganese plate diagonally, the lowbed trailer  adopts H-shaped bending bottom plate trapezoid weighing

6.Ladder:Titan's ladder is made of high-strength steel H60 steel, with a four-in-one welded box structure. Strong and durable, no deformation. We use high-quality springs (high-elasticity double-spring ladders) for the ladder, which can be easily lifted by ordinary people with one hand, which is convenient for operation.

7.Gooseneck design: Titan's gooseneck adopts a down-pressed forehead to prevent the head from tilting during heavy load, which is conducive to climbing.

8.Bottom platform: 5mm pattern plate

Gooseneck/Suspension/Tires

Main beam/Side beam/Axle/Landing gear

Rope/Ramp/Package

Specification：

Overall dimension: 13000mm * 3000mm *1250mm

Loading capacity: 80 T

Axle:TITAN 3 axles 16T

Tire:TITAN 12R22.5 , 12 units

Spring:16mm thick , 120mm width 10 pcs

Kingpin: JOST brand

Landing gear: JOST 28 Ton

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm，Material: Q345B steel.

Bottom Platform: 5mm checkered plate

Ramp: Spring ramp

Spare tire rack: 1 spare tire rack

Valve: WABCO valve

Light: LED light

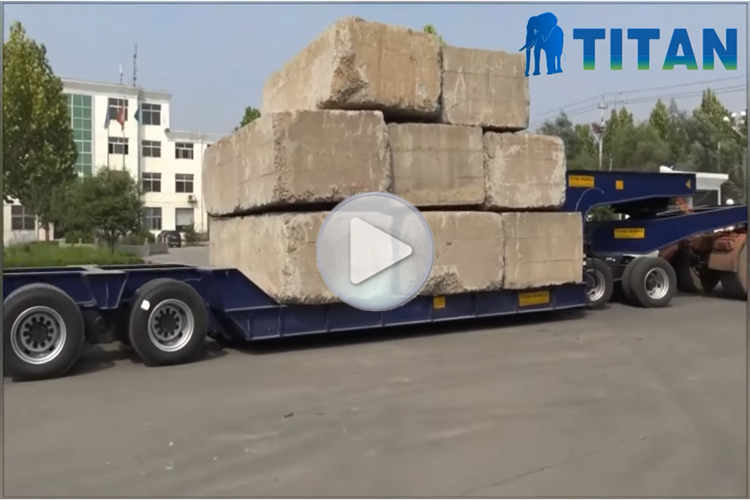

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

TITAN VEHICLE exported more than 1,200 various trailer to all over the world every year.
