TITAN Vehicle Semi Trailer dimensions & drawings



Container Flatbed Trailer dimensions and drawings

TITAN flatbed trailer is a kind of trailer whose design is suitably made to carry bulk cargo and containers between shipping facilities and terminals. By simple definition, this is a long flat platform of either 20ft, 40ft, 48ft or 53ft length. Flatbed trailer is usually used to transport 20ft or 40ft containers, they are mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport.

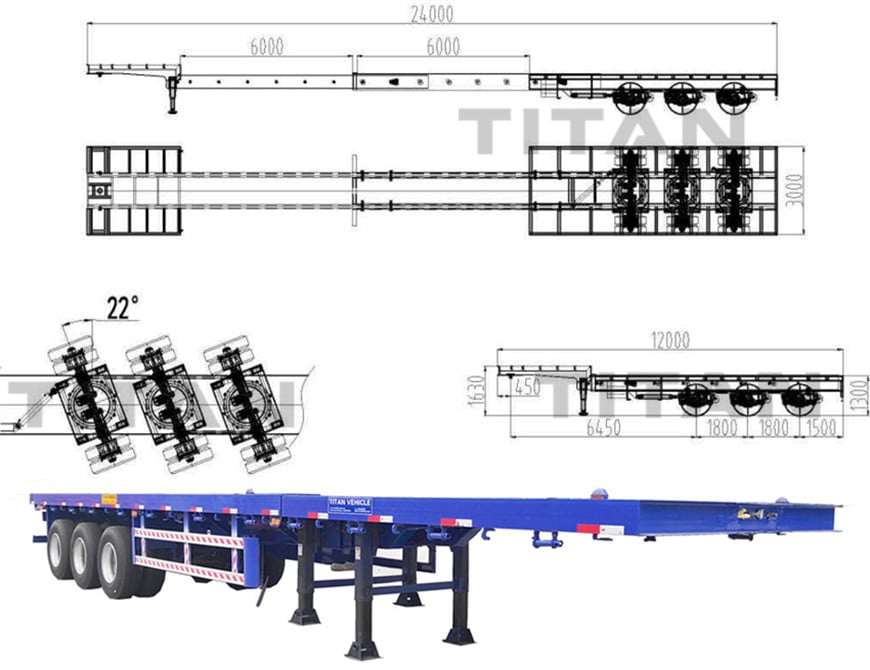

40ft flatbed semi trailer dimensions and drawings

3 Axle 40Ft Flatbed Trailer

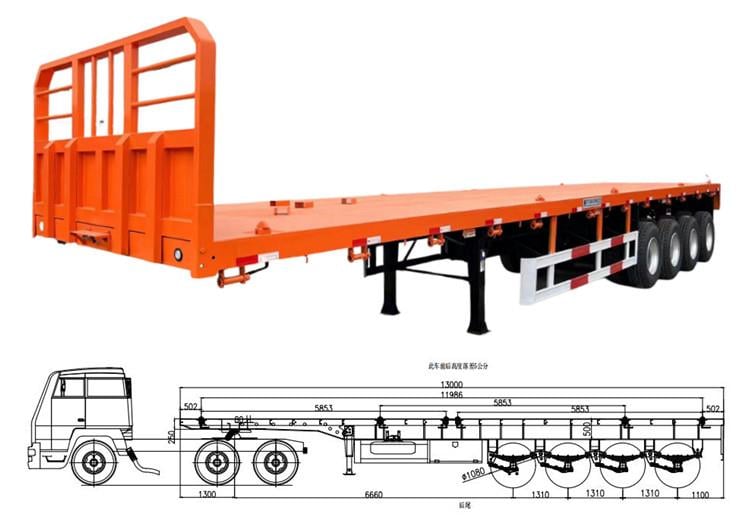

4 axle flatbed trailer dimensions and drawings

4 Axle Flatbed Trailer with Front Wall




Side Wall Trailer dimensions and drawings

The side wall truck trailer use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry. Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo. The high side 3 axle side wall truck trailer can be added with a container turn lock to transport the container.

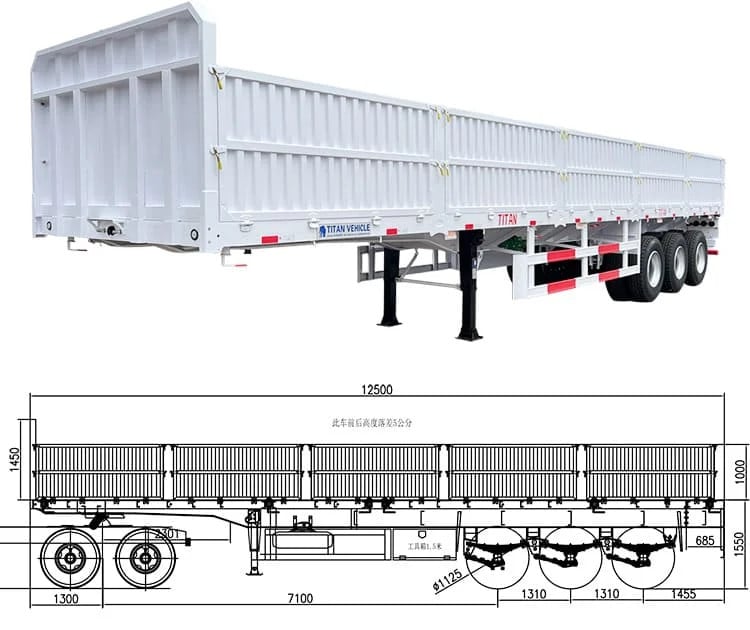

side wall truck trailer dimensions and drawings

3 Axle 60 Ton Side Wall Trailer

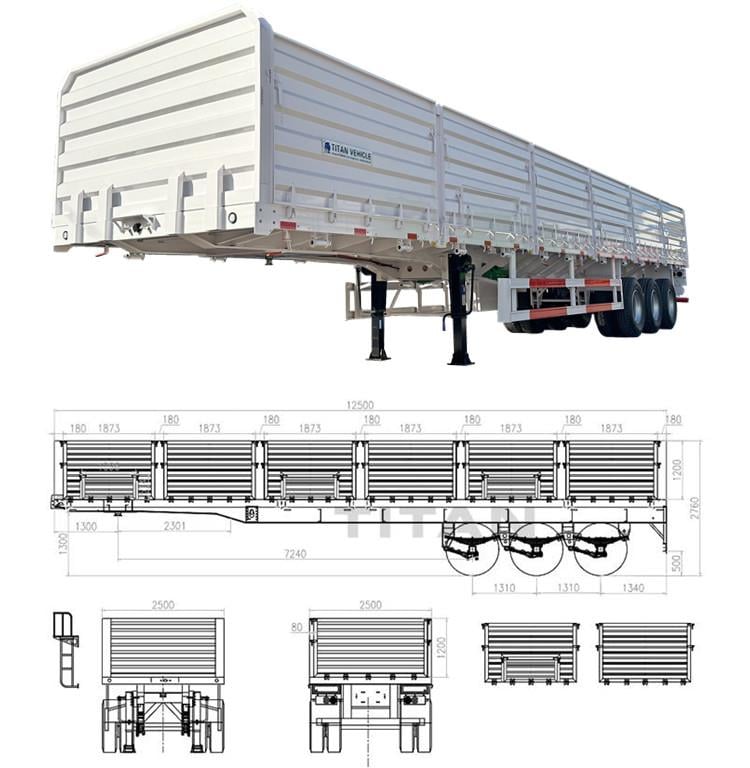

tri axle grain trailer dimensions and drawings

Tri Axle Grain Semi Trailer




Fuel Tanker Trailer dimensions & drawings

TITAN fuel tanker trailer adopt advanced design concept. We can customized the fuel tanker trailer for you according to your request.  And we TITAN offer carbon steel, stainless steel or aluminum alloy material fuel tanker trailers. To fabric the most durable tankers, especially for Africa Market, considering the road condition. This distortion resistance, earthquake resistance and bump, make your transport safety, also beneficial.

TITAN fuel tanker trailer can be designed in different capacities: 30 cubics fuel tanker trailer, 40 cubics fuel tanker trailer, 50 cubics fuel tanker trailer, etc. To carry 40,000 litres, 45,000 litres, 54,000 litres, up to 90,000 litres of liquid.

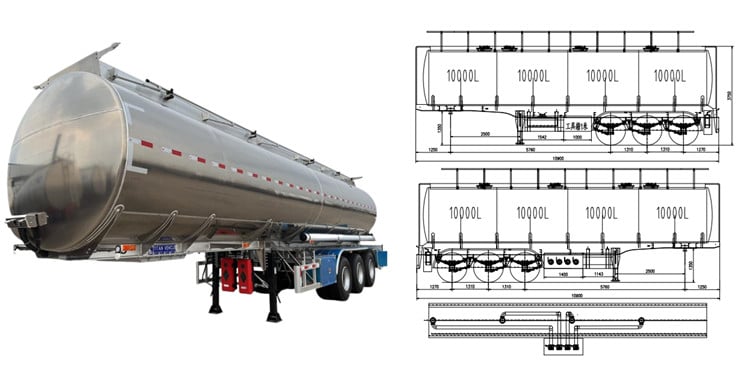

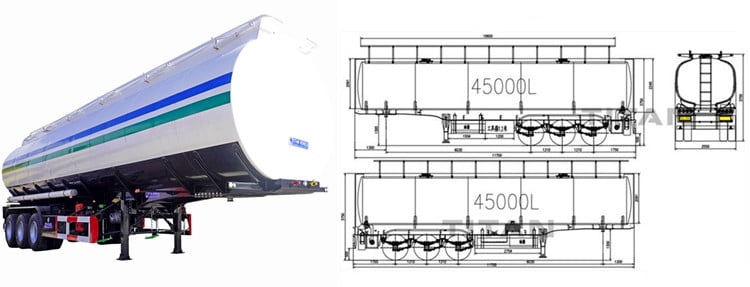

40,000 litres fuel tanker trailer dimensions and drawings

3 Axle 45000liters fuel tanker trailer



45,000 litres fuel tanker trailer dimensions and drawings

40000liters Aluminum Tanker Trailer




Container Chassis Trailer dimensions & drawings

TITAN Container chassis trailer is used to transport containers, and container chassis trailers have different shapes and sizes. Sea Container chassis trailer can be divided into two types: common 40ft Container chassis trailer and special Container chassis trailer. TITAN common Container chassis trailers can be customized to 20 ft Container chassis trailer, 40 foot Container chassis trailer, 45ft Container chassis trailer, 53 feet Container chassis trailer. We also provide customers with different options: 2 axles gooseneck container trailers, 3 axles shipping container delivery trailer, 4 axles intermodal container chassis, airbag suspension, spring steel suspension.

Container Chassis Trailer dimensions & drawings

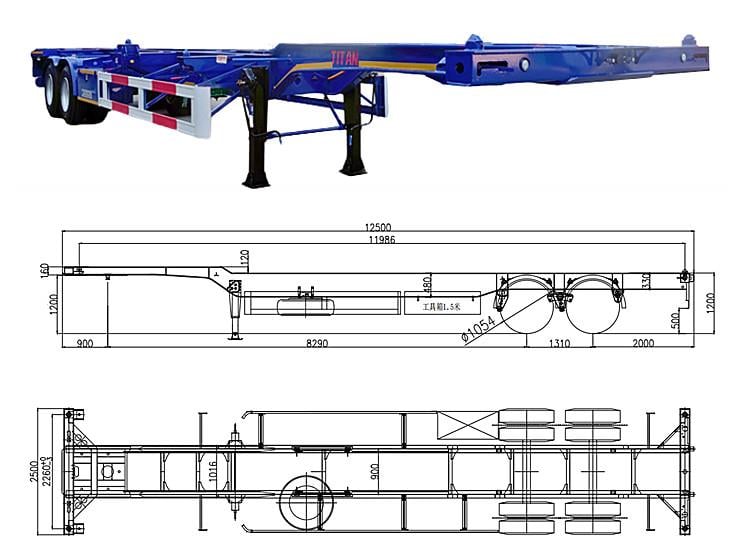

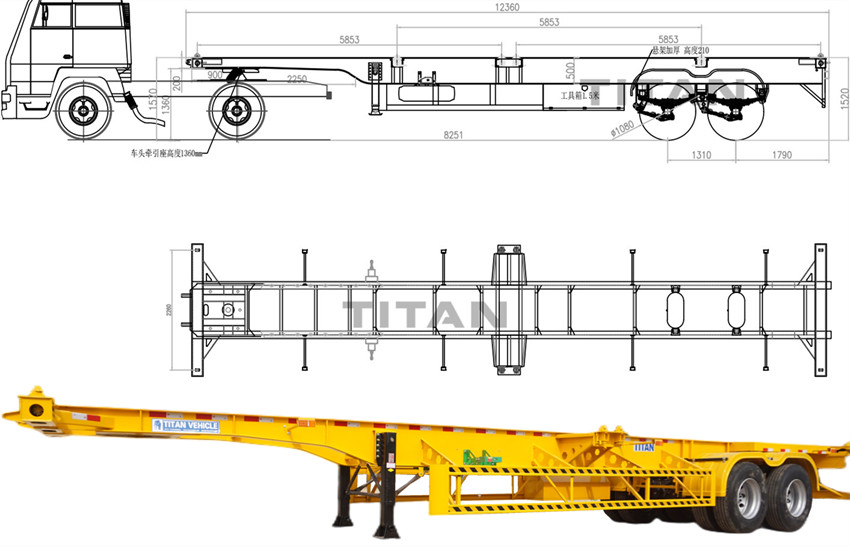

2 axle gooseneck container chassis trailer

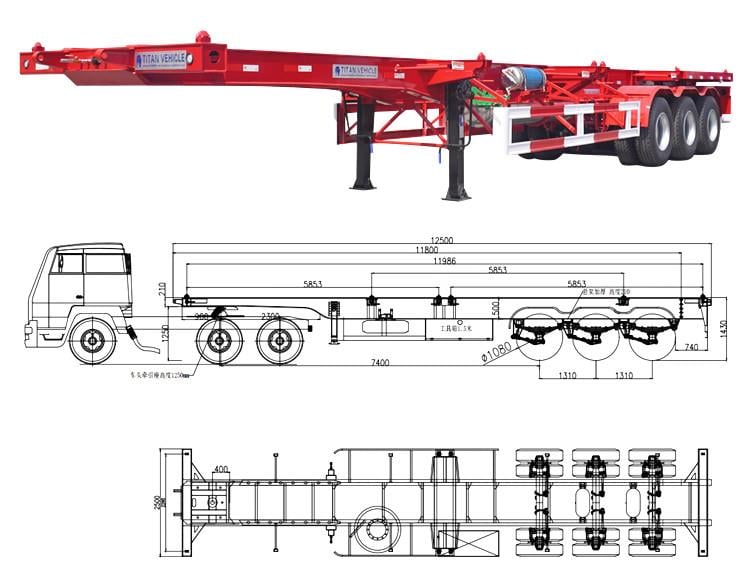

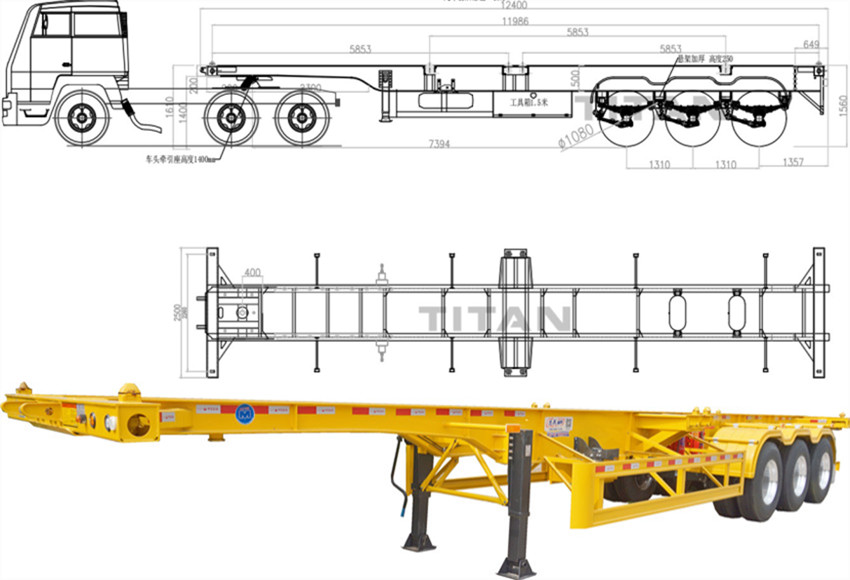

3 axle 40 foot Container Chassis Trailer dimensions & drawings3 Axle 40ft Container Chassis Trailer

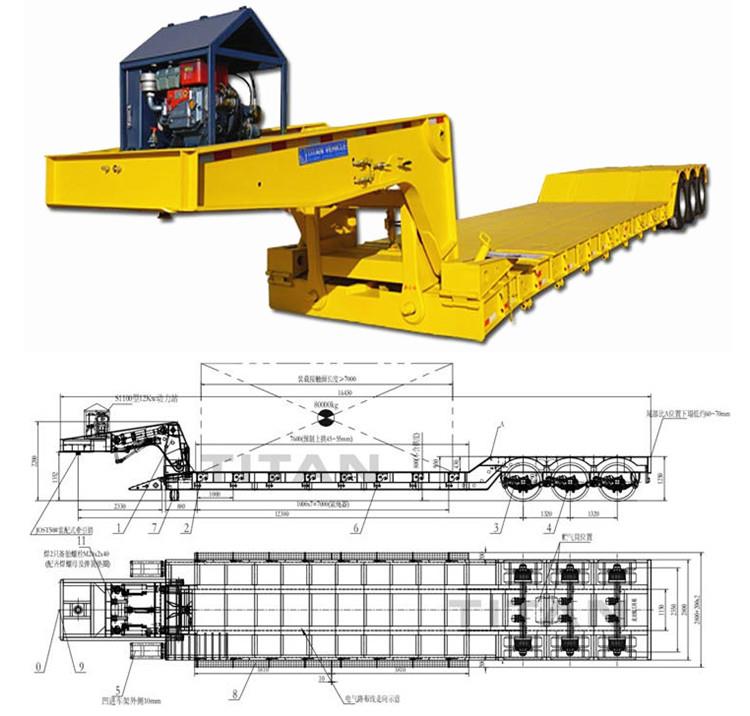

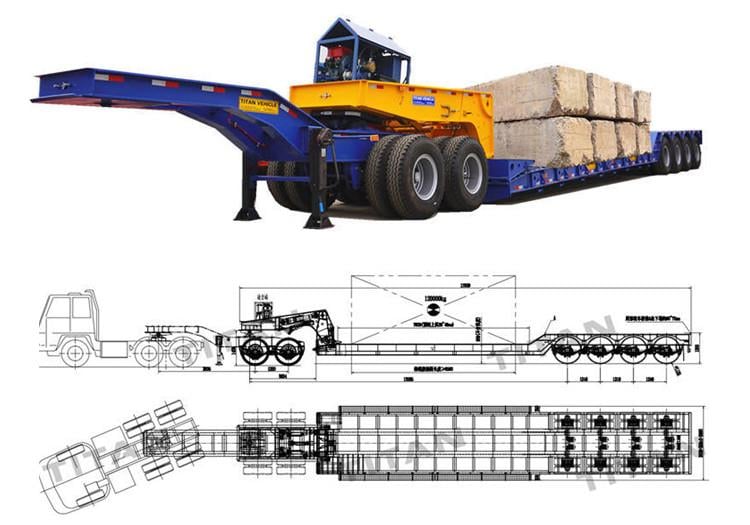

Detachable Gooseneck Lowboy Trailer dimensions & drawings

TITAN -detachable gooseneck lowboy trailer can make the 2/3/4 axles detachable gooseneck lowboy trailer and 3 lines 6 axles detachable gooseneck lowboy trailer,  the capacity of 60/80/100/120/150 ton detachable gooseneck lowboy trailer.

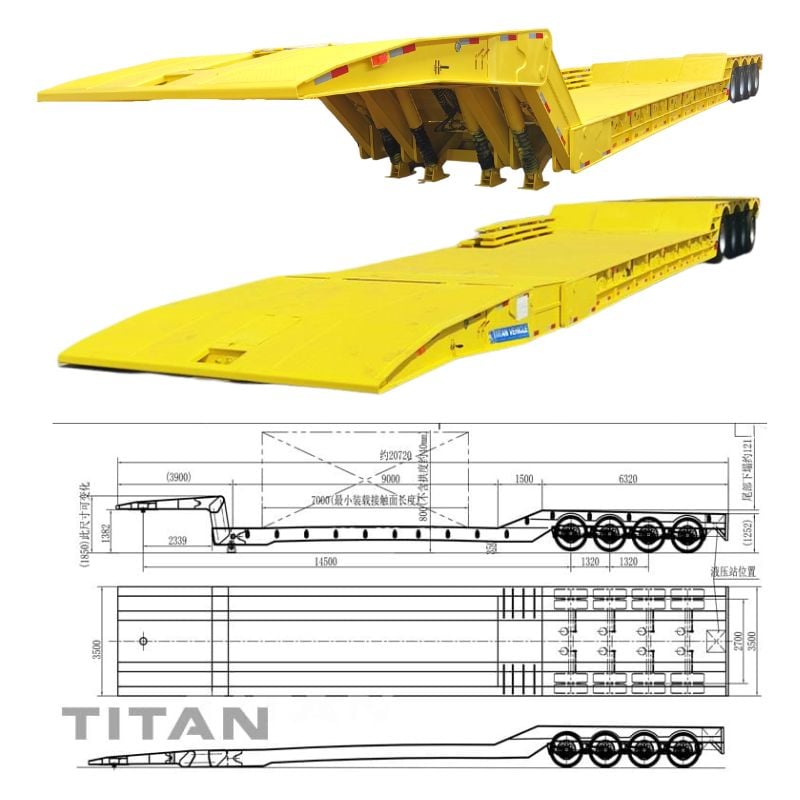

Detachable Gooseneck Lowboy Trailer dimensions & drawings

3 Axle Detachable Gooseneck Lowboy Trailer



100 tons Detachable Gooseneck Lowboy Trailer dimensions & drawings

4 axle 150 Ton detachable gooseneck lowboy trailer



100 ton folding detachable gooseneck lowboy trailer




Lowbed Semi Trailer dimensions & drawings

TITAN Lowbed semi trailers are widely used, mainly for medium and long-distance freight transportation. Lowbed semi trailers are commonly used to transport heavy vehicles, rail vehicles, mining machinery, forestry machinery, agricultural machinery, and other heavy-duty cargo.

The Lowbed semi trailer structure usually adopts a concave beam frame. The lower the center of gravity, the better the stability and safety, and the stronger the ability to transport ultra-high cargo. The front section of the frame is a gooseneck (the traction pin in the front section of the gooseneck is connected to the traction saddle on the tractor, and the rear end of the gooseneck is connected to the low bed semi trailerframe) Cargo platform (the lowest part of the frame), the rear end is the wheel frame (including wheels).

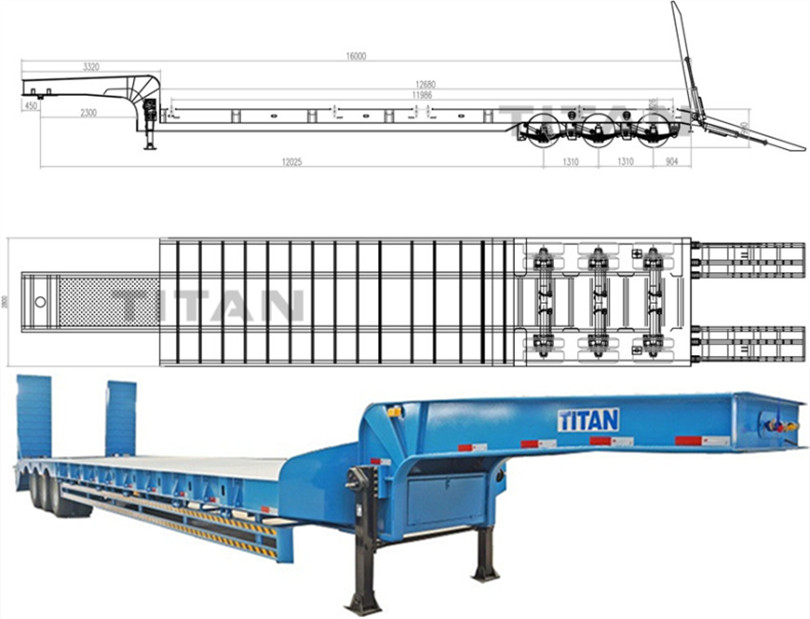

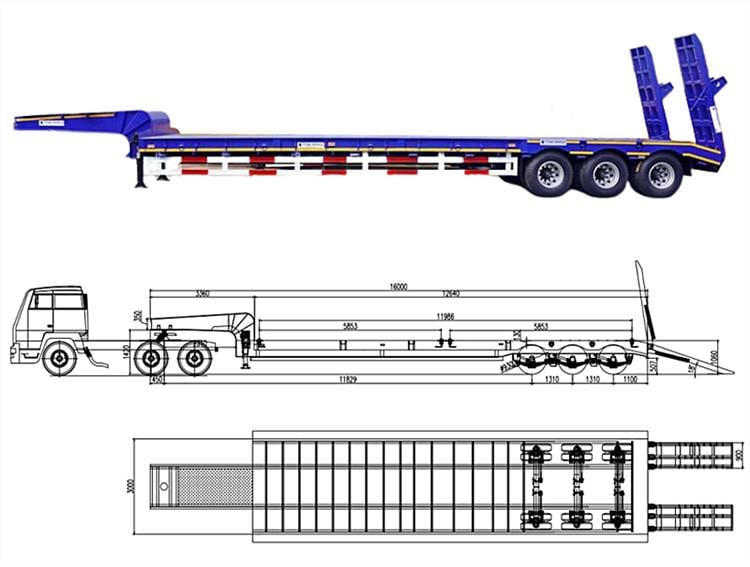

3 axle Lowbed Semi Trailer dimensions & drawings

3 Axle 80Ton Lowbed Semi Trailer

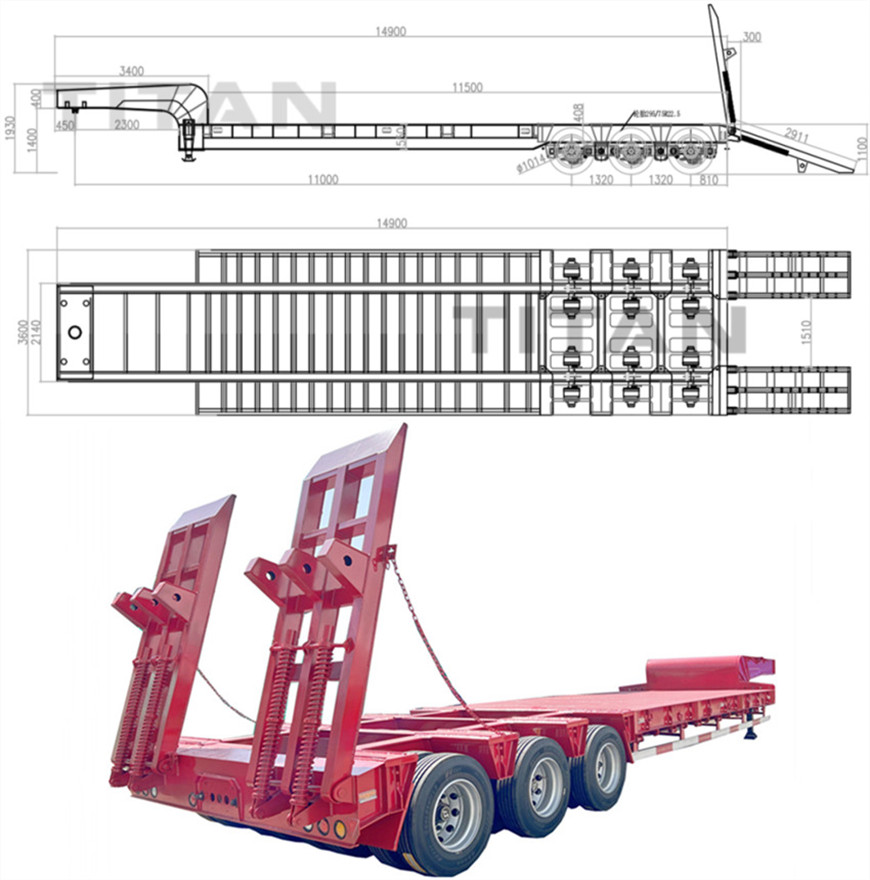

100 tons axle Lowbed Semi Trailer dimensions & drawings

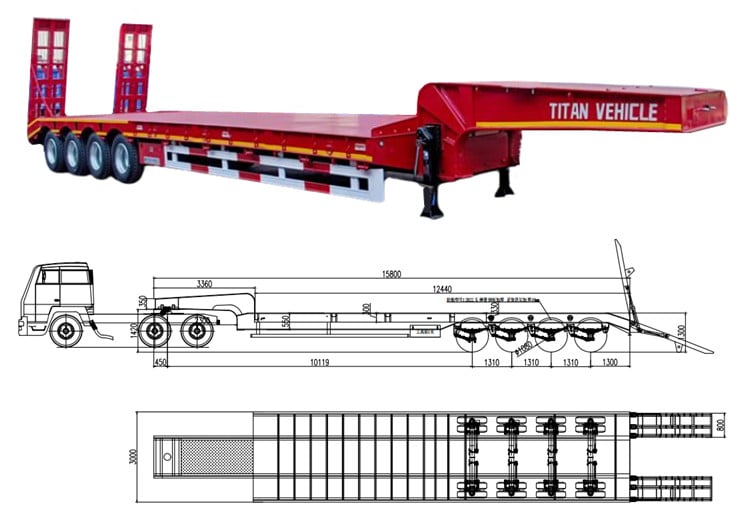

4 Axle hydraulic lowbed semi trailer

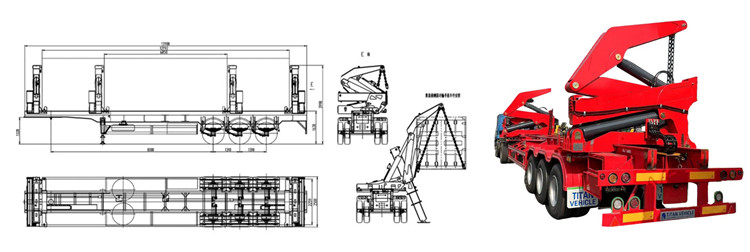

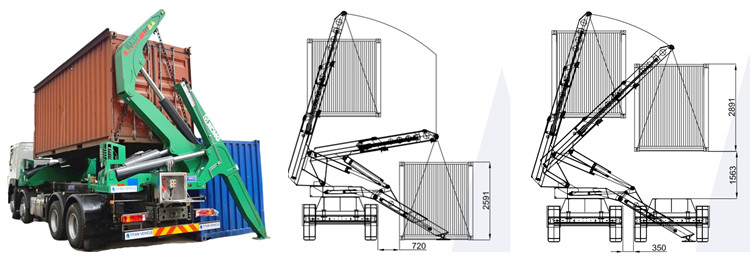

Container Side Loader dimensions & drawings

TITAN container side loader for sale is a type of specialized container side loader for sale that is used to hoist and transport standard containers over long distances. Also known as a container side loader, container side loader is basically used for container transfer. It comprises of lift modules or cranes that are installed to the container side loader for sale chassis. These lifting components can also be fitted onto a sub-frame usually mounted on a truck.

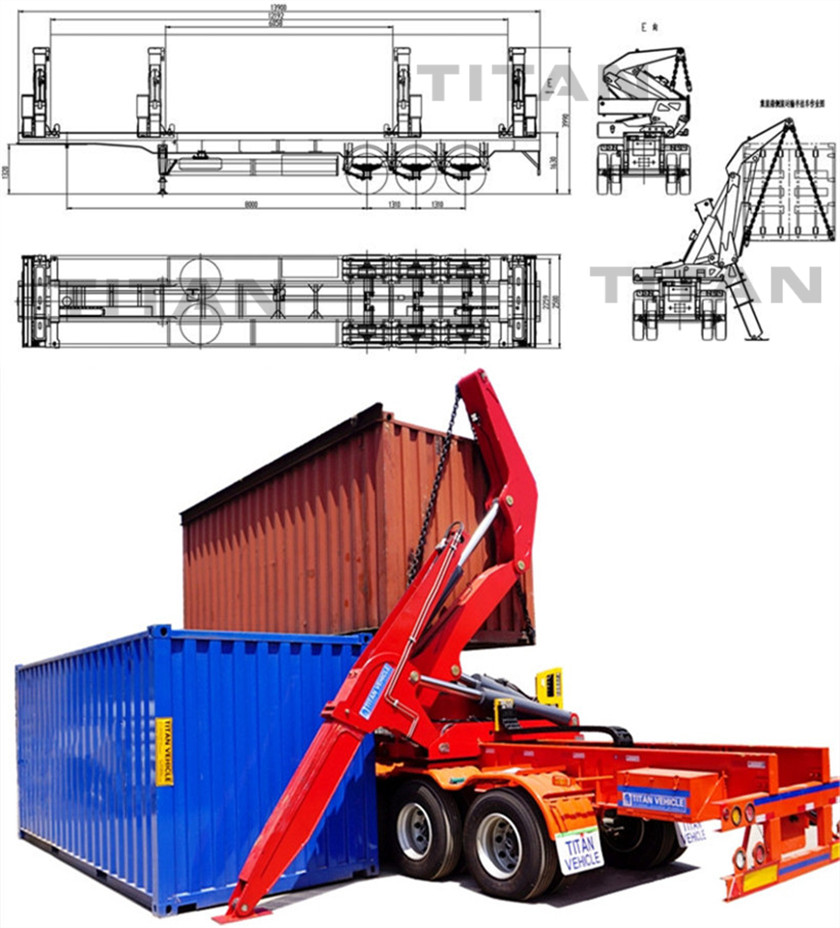

40Ft Container Side Loader Trailer



20FT Container Side Loader Truck




Bulk Cement Trailer dimensions & drawings

The bulk cement trailers are mainly used to transport 30 tons, 40 tons, 45 tons and 80 tons of cement. The main volumes of bulk cement trailers are 25 cubic meters bulk cement trailer, 30 cubic meters bulk cement trailer, 35 cubic meters bulk cement trailer, 38 cubic meters bulk cement trailer, 40 cubic meters bulk cement trailer, 50 cubic meters bulk cement trailerr, 60 cubic meters, and 80 cubic meters.

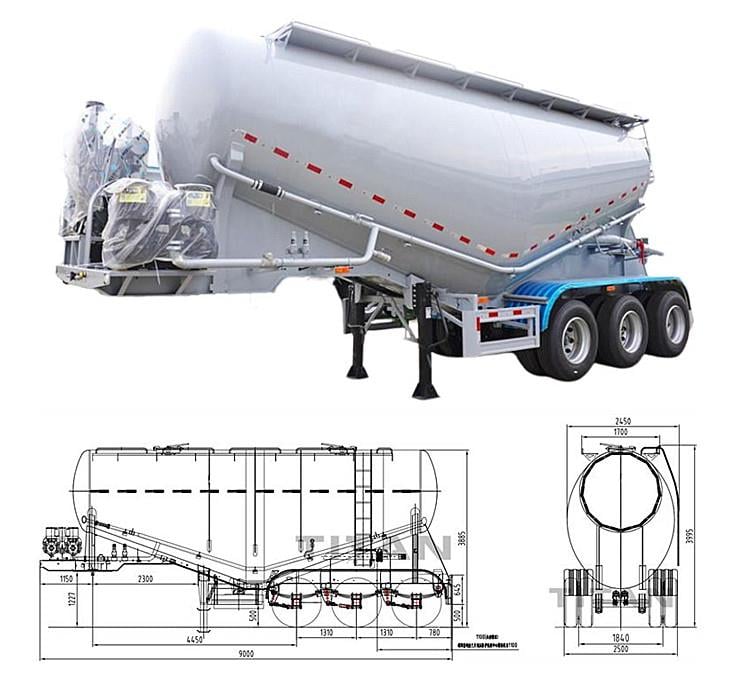

3 axle 40 tons Bulk Cement Trailer dimensions & drawings

3 Axle Bulk Cement Trailer


Tipper Semi Trailer dimensions & drawings

TITAN tipper semi trailers can be used in many other fields such as construction, agriculture, etc. We have different shapes and types of tipper semi trailers, which are divided into tipper semi trailers and rear tipping trailer. skeleton tipper semi trailers, and flatbed type tipping trailer, Drawbar tipper trailer.

Hydraulic tipper semi trailers can be customized from 15 tons to 80 tons tipper semi trailers for sale, 80 tons to 120 tons tipper semi trailers,  120 tons-180 tons tipper semi trailers of different tonnage according to the different cargoes. The common volumes are 30 cubic meters tipper semi trailers, 32 cubic meters tipper semi trailers, 35 cubic meters, 45 cubic meters, 50 cubic meters, 60 cubic meters, 80 cubic meters and so on.

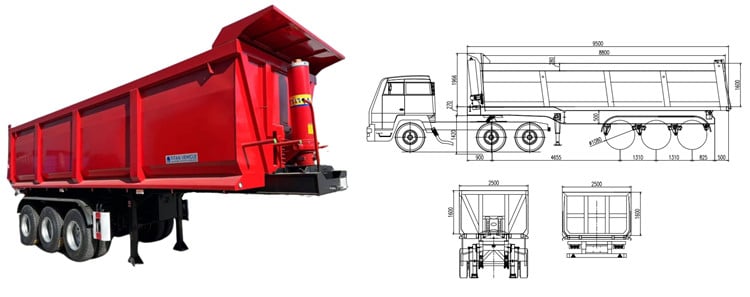

3 axle Tipper Semi Trailer dimensions & drawings

Tri Axles Hydraulic Tipper Semi Trailer

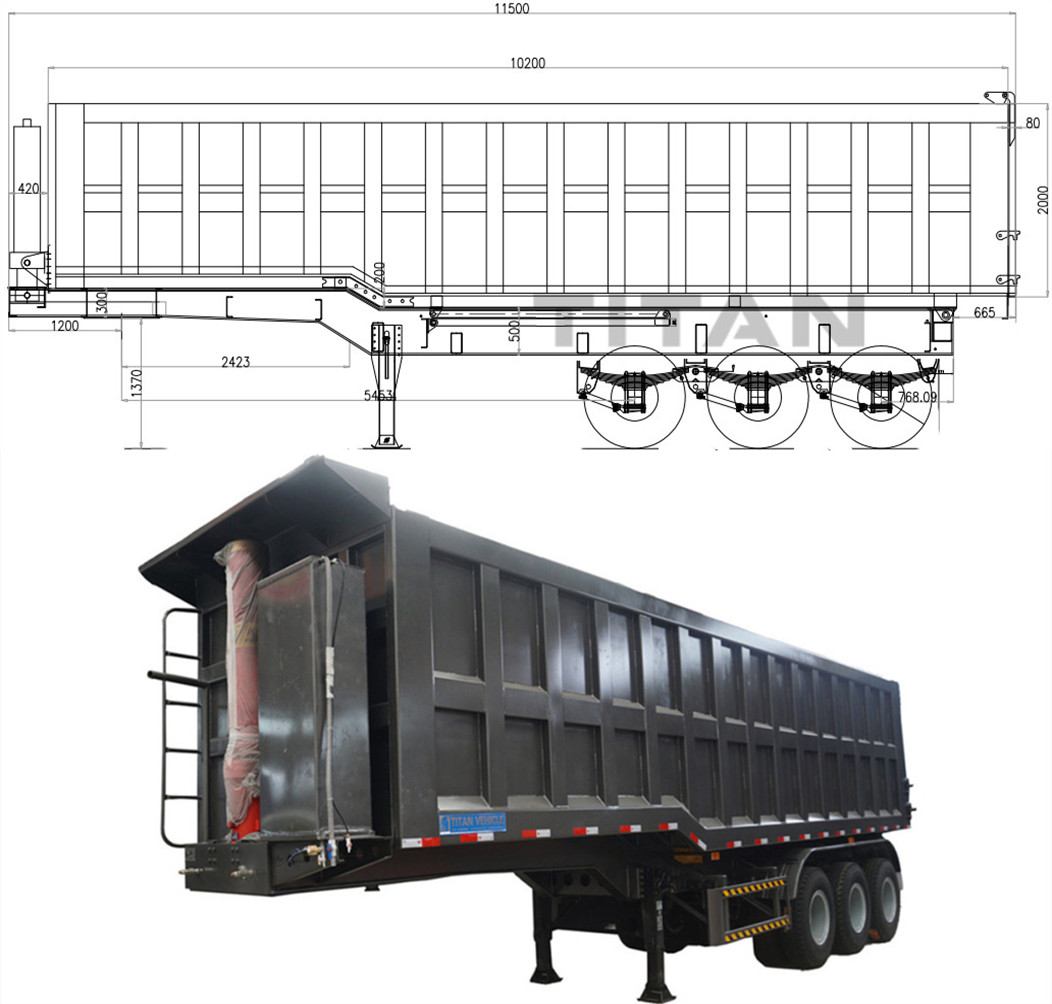

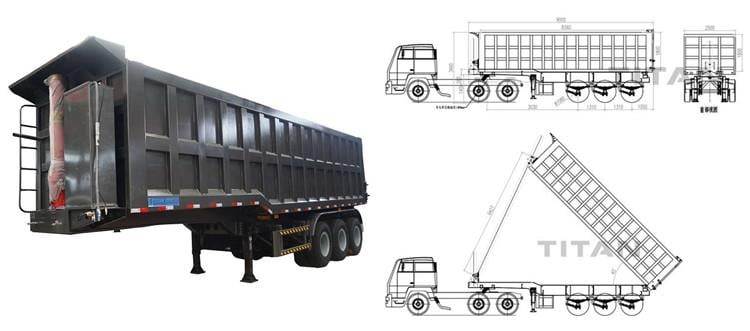

U shape 40 ton dump semi trailer




Side Tipper Trailer dimensions & drawings

Side tipper trailer is another type of Tipper trailer truck, and it allows goods to be unloaded from the side. The main types of cargo transported by this side tipper trailer are building materials, such as stone, sand, etc.

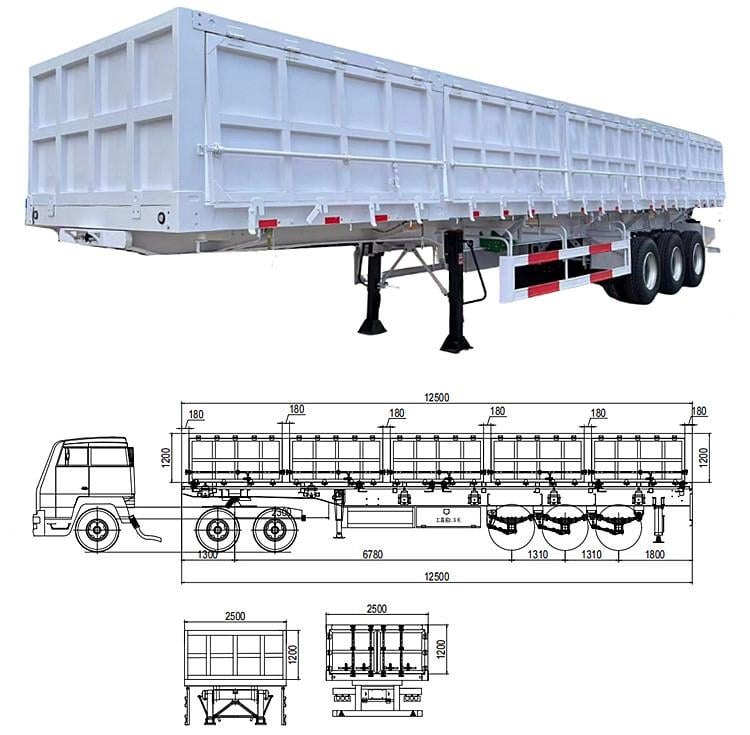

40 tons Side Tipper Trailer dimensions & drawings

3 Axle Side Tipper Trailer


Fence Truck Trailer dimensions & drawings

The fence truck trailer use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry. Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo. The fence truck trailer can be added with a container turn lock to transport the container.

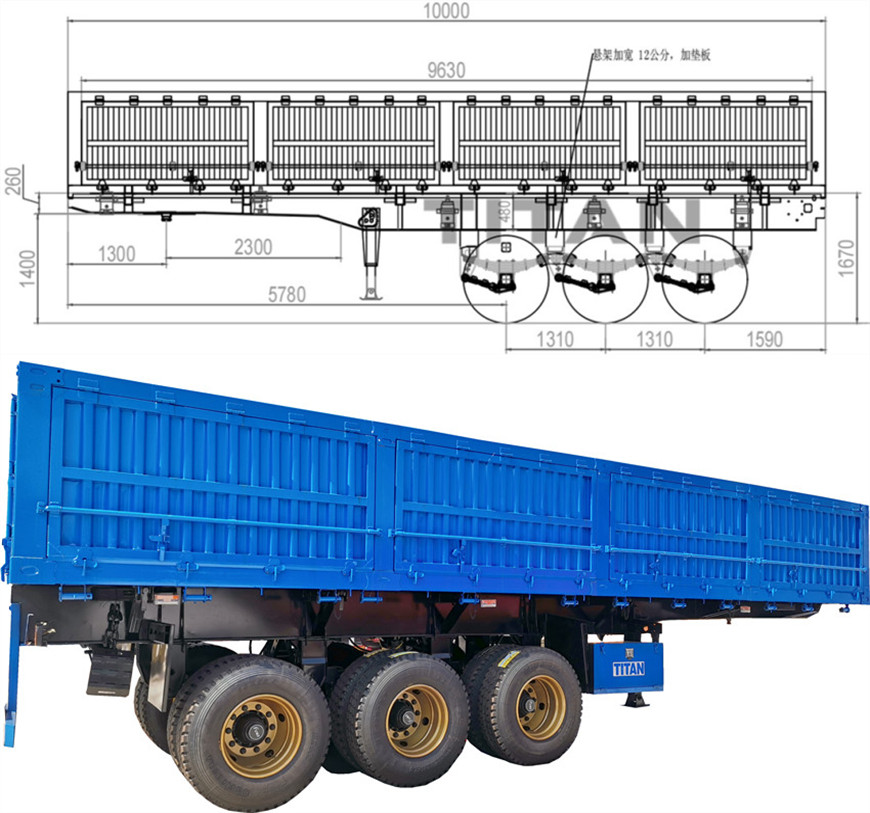

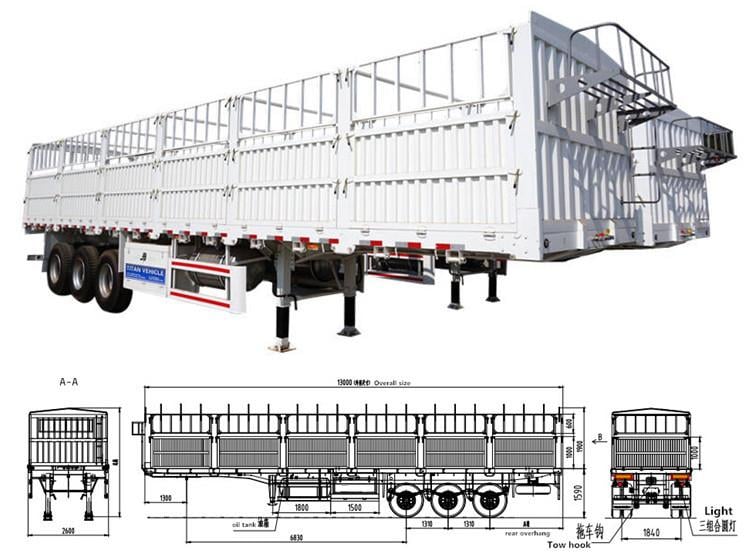

3 axle fence truck trailer  dimensions and drawings

3 Axle Fence Truck Trailer

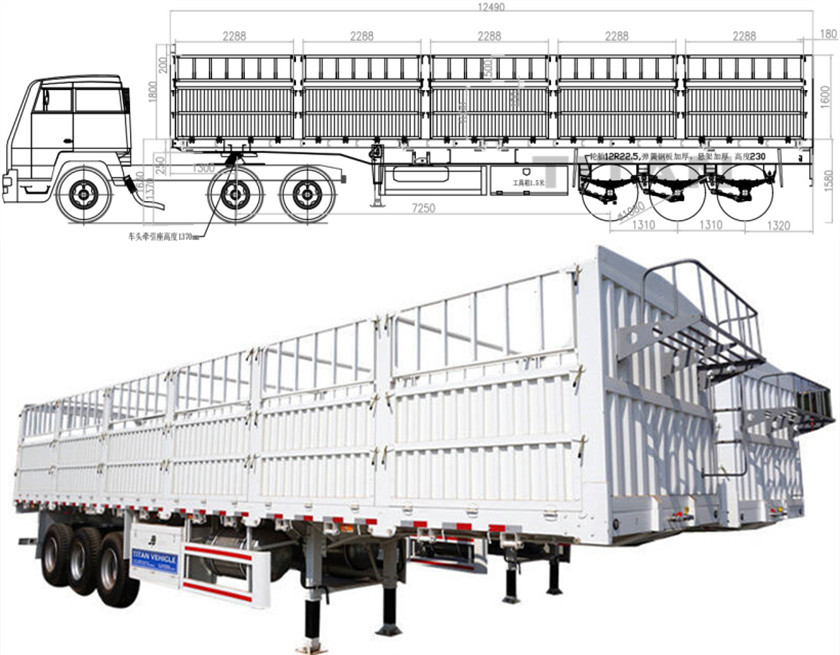

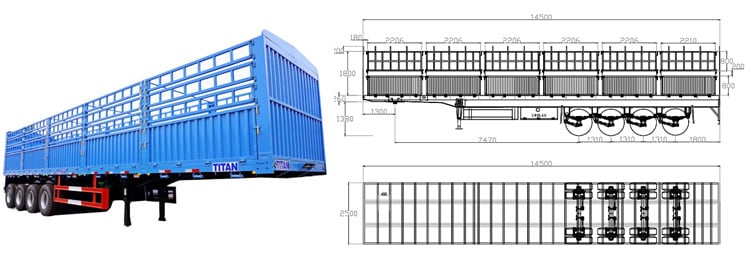

4 axle fence truck trailer  dimensions and drawings

4 Axle Fence Truck Trailer




Windmill Blade Adaptor dimensions & drawings

Windmill Blade Adaptor can transport blades of model 121-156. It is suitable for the wind turbine blades length of 59.5-76 meters, and the longest can transport the wind blade of 80 meters. The weight of the Windmill Blade Adaptor that can be carried is 13-23.5 tons.

The special Windmill Blade Adaptor can lift the blades through hydraulic control and rotate itself 360 degrees during driving, avoiding various obstacles during transportation (mountain slopes, trees, houses, bridges, tunnels, etc.), which can greatly reduce the blades. The total length of the transport Windmill Blade Adaptor body can improve the curve passing performance.

Windmill Blade Adaptor dimensions & drawingsWindmill blade adapter that is mounted on 3 lines 6 axles semi-trailer



4 axle Windmill Blade trailer dimensions & drawings

58M Extendable Windmill Adapter Trailer



6 alxe Windmill Blade trailer dimensions & drawings

62 m 6 axle windmill blade adapter


Extendable Trailer dimensions & drawings

Extendable trailer also has more name, such as telescopic trailer, extendable trailers for blade, extendable container chassis, telescopic windmill blade trailer, extendable lowboy trailer for sale, extendable low bed trailer, extendable drop deck trailers for sale.

Extendable Trailer dimensions & drawings

24m Extendable Trailer



Extendable lowbed Trailer dimensions & drawings

9 Axles Extendable Trailer

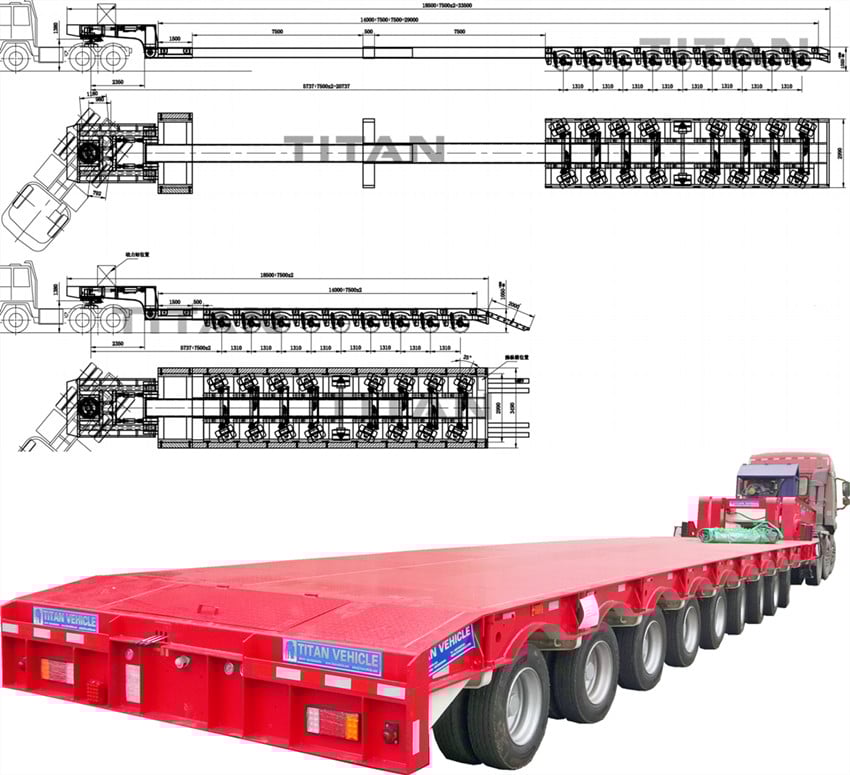

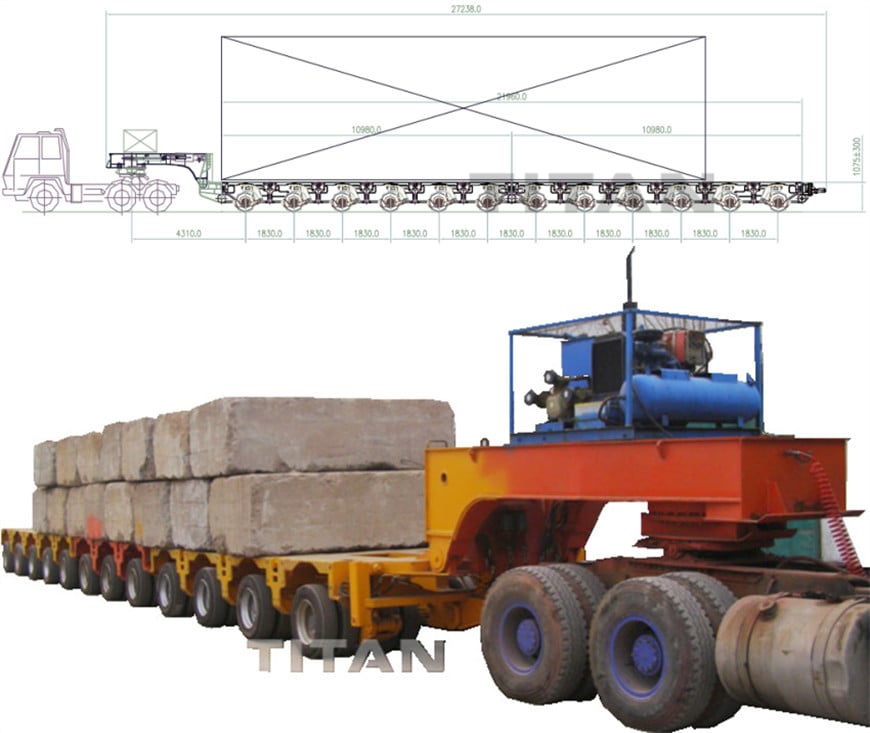

Hydraulic Modular Trailer  dimensions & drawings

A hydraulic modular trailer accounts for various special trailers or semi-trailers that are normally used in the transportation of bulky and heavy cargoes that cannot easily be disassembled for ease of transportation.

Hydraulic modular trailer are commonly used in the chemical industry, power stations, construction industry and in the iron and steel industry. Due to their excellent lateral stability, they can be used for mining operations. They are also used to transport products that are over-length. The tractor trucks are used to provide traction for the hydraulic modular trailers.

Hydraulic Modular Trailer  dimensions & drawings

Multi Axle Hydraulic Modular Trailer
