The fuel tanker trailer manufacturers can transport various liquids at the same time. Using multiple compartments, these tankers are capable of transporting a variety of liquids, including industrial chemicals, concrete, diesel, milk, gasoline and water.
Each liquid has a different density, which changes the maximum carrying capacity of the fuel tanker trailer manufacturers.
WABCO emergency valve, high braking performance& ensure driving safety. JOST E 100 Landing gear, durable quality than other ordinary landing gear. 16 ton brake pads, can improve 20% brake performance than 13 ton brake pads. Anti-skid metal grilles walkway can be done to the customer's requirements.‹Get Quotation›
Fuel Tanker Trailer Manufacturers | Fuel Tanker Trailer Dimensions | Fuel Transport Trailers for Sale | Fuel Semi Trailer
Fuel Tanker Trailer Manufacturers | Fuel Tanker Trailer Dimensions | Fuel Transport Trailers for Sale | Fuel Semi Trailer
Fuel Tanker Trailer Manufacturers | Fuel Tanker Trailer Dimensions | Fuel Transport Trailers for Sale | Fuel Semi Trailer

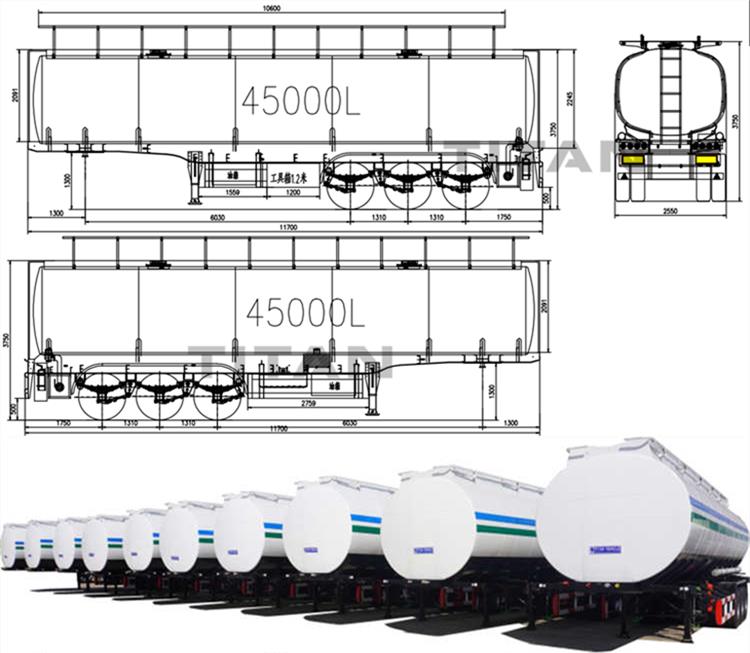

Fuel Tanker Trailer Dimension: 10600mm * 2550mm *3750mm
Tare Weight (semi trailer): About 8000-12800kg
Total volume(L): 45000 Liters
Tank Body Material: Q235 carbon steel
Fuel Transport Trailers for Sale End plate: Q235 carbon steel
Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Single Compartment
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Fuel Transport Trailers for Sale Axle: 3 axles,13T,FUWA
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Fuel Transport Trailers for Sale Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5Chinese brand
Fuel Semi Trailer Tire: 12.00R22.5
Fuel Semi Trailer ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Fuel Semi Trailer Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

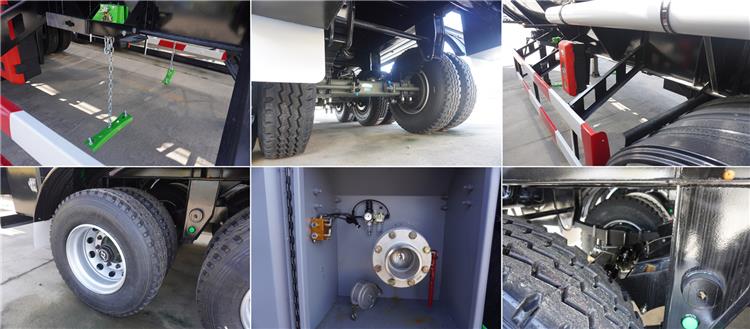

Manhole cover: The manhole cover is specially designed, it has many functions, which can guarantee the safety of the tri axle fuel semi tanker trailer to a certain extent.
Safety valve: An important component of the manhole cover is the safety valve. The valve is used to automatically regulate the internal pressure of the tank to ensure the safety of the fuel semi trailer and also to reduce the volatilization of oil.
Valves: ADR standard Valves, widely applicable for the major oil companies, high quality ensures longer service life.
Oil and gas recovery valve: When load and unload, we will definitely use the oil and gas recovery valve, which can recover the excess volatile oil and gas, not only to reduce waste but also to ensure safety.
Fuel outlet valve: We have a special design for the fuel outlet valve, which can better guarantee that when we dismantle the joint, there will be no fuel leakage. The internal structure is more in line with fluid mechanics, and when there is a large flow of goods out, the internal pressure can be balanced.
Subsea valve: The subsea valve is usually installed at the bottom of the tank, usually, its role is in the fuel semi trailer after an accident, in order to prevent the transport of liquid fuel leakage, resulting in greater economic losses, once the accident, the subsea valve will automatically cut off the pipeline within 3 seconds to ensure the safety of the transported goods.
Anti-spill sensor: When load in liquid fuel, Can’t detect how much has been added every moment, at this time, we need to use the overflow prevention sensor, when it reaches the specified height, the alarm will sound.
Fuel Tanker Trailer Manufacturers | Fuel Tanker Trailer Dimensions | Fuel Transport Trailers for Sale | Fuel Semi Trailer

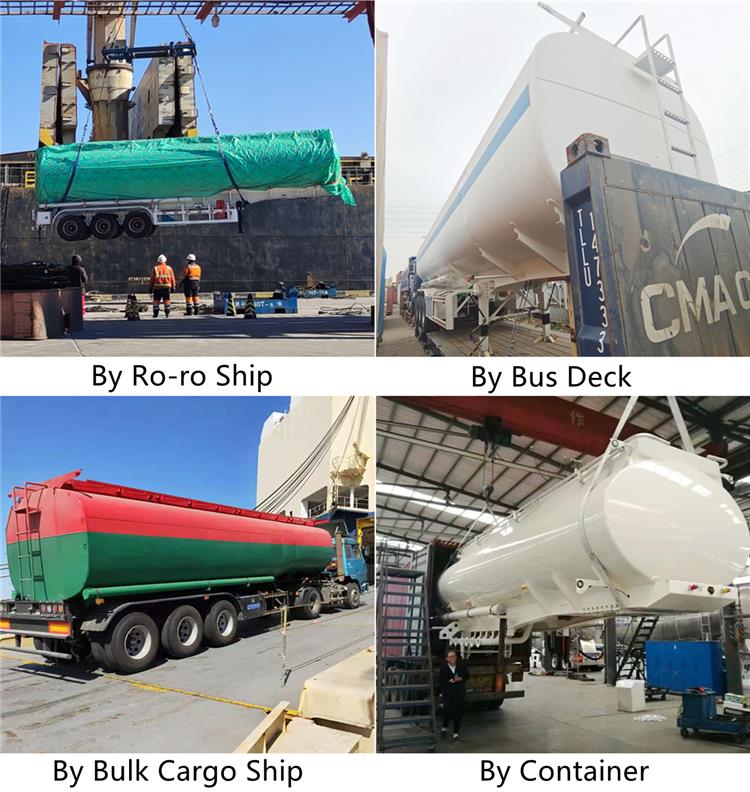

Generally, fuel transport trailers for sale can reach customers after 7-25 days of transportation; we will do an excellent job to protect the semi tanker trailer from the seawater before transport.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
