1. About TITAN Stainless Steel Tanker Trailer.

2. TITAN Stainless Steel Tanker Trailer Specs, Drawing and Advantage.

3. Stainless Steel Tanker Trailer Tank Body.

4. The Knowledge of Accident Prevention of Stainless Steel Tanker Trailer.

5. Stainless Steel Tanker Trailer Advantage

1. About TITAN Stainless Steel Tanker Trailer:

Stainless steel fuel tank trailer is generally used to transport gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products such as alcohol, aldehyde, benzene, ether and other liquid substances.

The stainless steel fuel tank trailer has a capacity of 30000-60000 liters, which is generally used for long-distance transportation, transporting liquid substances to all over the world, so as to realize the reasonable distribution and use of resources.

As a means of transporting dangerous goods, fuel tanker trailer often has many large-scale events. TITAN tanker trailer adopts advanced design concept. We can customize the tankers for you according to your request. To fabric the most durable tankers, especially for Africa Market, considering the road condition.

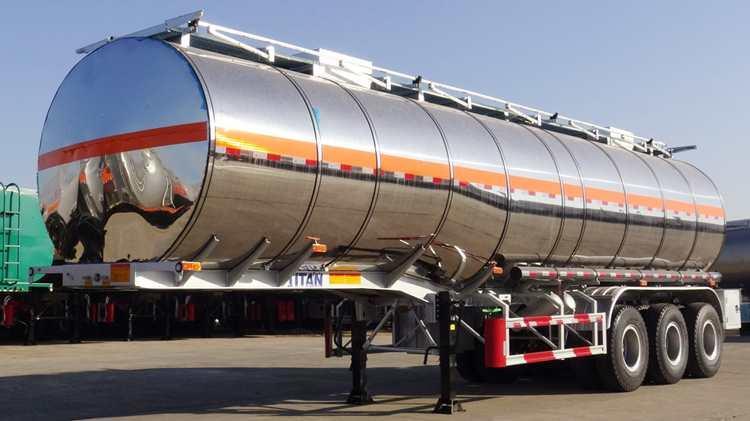

China Stainless Steel Tanker Trailer for Sale Transport with Best Price

2. TITAN Stainless Steel Tanker Trailer Specs, Drawing and Advantage:

Overall dimension：11500mm * 2500mm *3700mm

Transport：fuel, petrol, oil

Tank body material: stainless steel

Axles：3 axles

Suspension：Heavy duty mechanical suspension

Tire：12 units

Discharging Pipe : 2 pcs, 6m/each

King pin：90#

Landing gear：JOST

Brake system: WABCO

Electrical system: 24V, LED lights

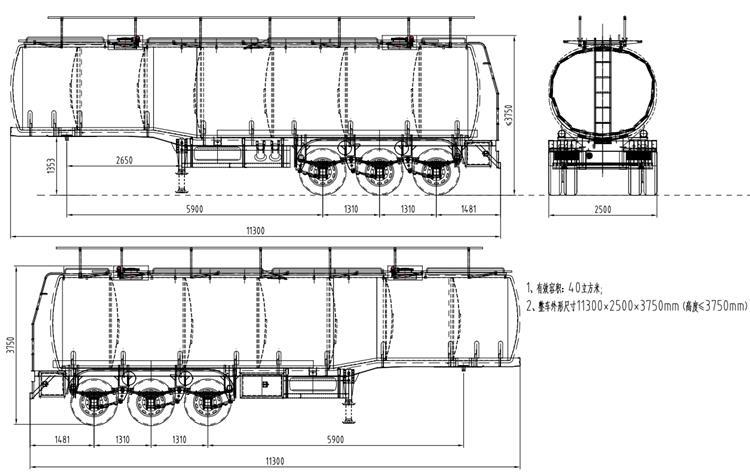

Drawing of 3 Axle Stainless Steel Tanker Trailer for Sale

1. 3D Drawing and HyperMesh & Ansys, Fully utilize physical property, support higher performance, reducing operating cost

2. ADR standard API Adaptor, Crucial to any API bottom loading system, match 3" or 4" couplers

3. API Sockets Optic, Support bottom loading system. ADR standard Manhole with vapor vent, 16" or 20", Aluminum material for a longer lifetime

4. More safety by 7%Lower center gravity Gooseneck design. 12% Larger volume by semi-elliptical section barrel design

5. 10-year Long service life by tanker automatic arc welding

3. Stainless Steel Tanker Trailer Tank Body:

The alcohol and chemical tankers are made of imported stainless steel, with a thickness of 4mm-5mm.

All kinds of hydrochloric acid, sulfuric acid, and lye tankers are made of plastic, with a thickness of 12mm-22mm.

There are multiple anti-wave partitions in the tank. High-pressure gas leak testing is used to make the tank body have the characteristics of high strength, stable center of gravity, safe and stable vehicle transportation, etc.

According to the tanker trailer, centrifugal pumps, gear pumps, stainless steel pumps can be selected, which have the characteristics of large flow and fast suction speed.

Stainless steel tanker trailer can choose single-count and double-count flow meters for measurement, and can also be equipped with a tax-controlled computer refueling machine, equipped with a 10-15 meter automatic retractable return reel, and equipped with a refueling gun. Edible oil products can be measured with an edible oil computer meter.

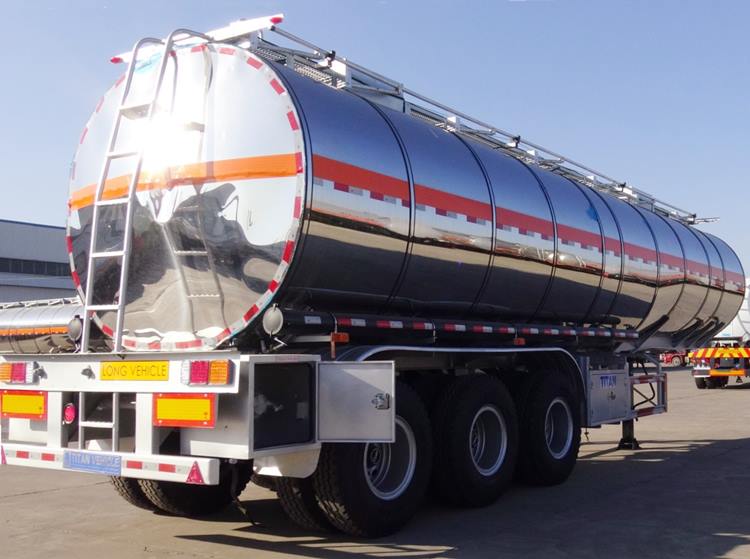

45000 Liters Stainless Steel Tanker Truck Trailer for Sale

4. The Knowledge of Accident Prevention of Stainless Steel Tanker Trailer:

This distortion resistance, earthquake resistance and bump, make your transport safety, also beneficial. Therefore, safety measures must be put in place in daily life.

Petrol fuel tanker trailer should have the following basic conditions:

1. The relevant certificates such as the vehicle driving license and the hazardous chemicals permit are complete.

2. The actual loading capacity shall not be greater than the approved loading capacity.

3. The tank body and accessories are good and effective, with no damage or deformation affecting the strength, no serious corrosion, and no leakage. The diesel fuel trailer is qualified by the qualified inspection department.

4. The tank body must be provided with an electrostatic grounding terminal, and an obvious mark is painted on the terminal; install a conductive rubber towing zone, and keep it on the ground after filling with oil.

5. Equipped with two dry powder fire extinguishers over 4 kg, the location should be reasonable and easy to use.

6. Install an effective fire cap on the exhaust pipe, and the circuit system should have a device for cutting off the main power supply.

TITAN offers carbon steel, stainless steel or aluminum material tanker trailers. The volume of the Stainless Steel Tanker Trailers for Sale can be customized, to reach 40,000 liters, 45,000 liters, 54,000 liters, up to 90,000 liters. With the different compartments, like two, three, four, or more compartments, to load different liquid.

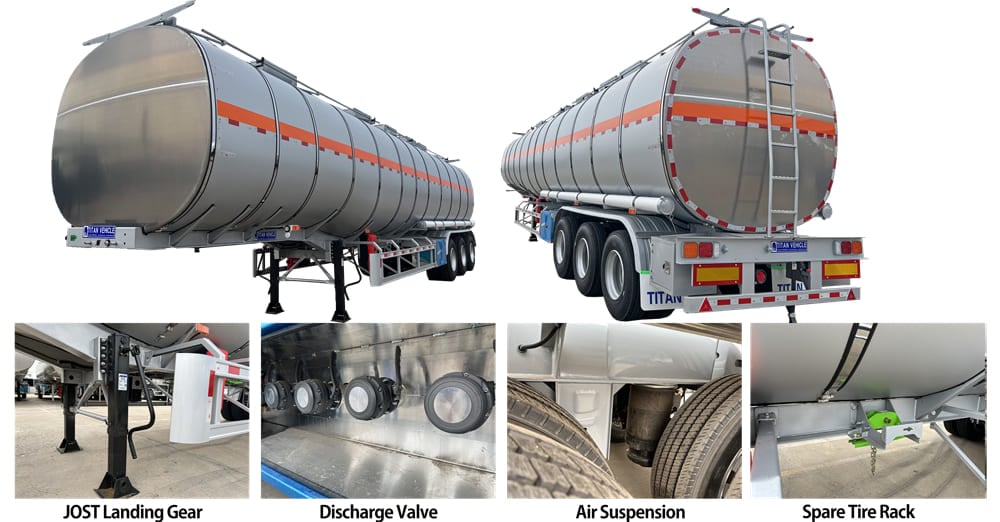

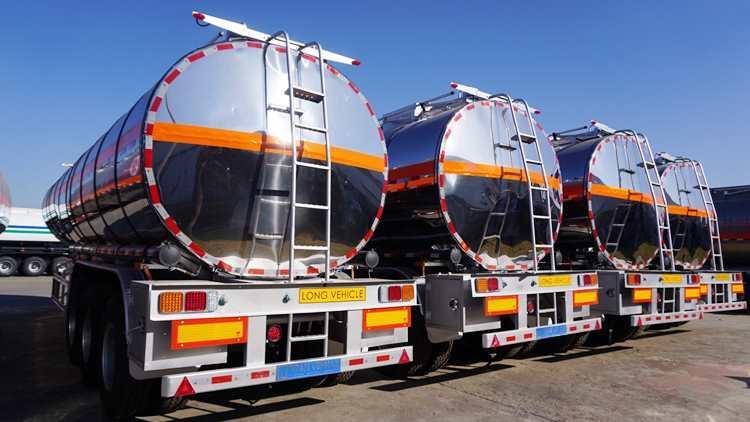

Tri Axle Stainless Steel Tanker Truck Trailer for Sale

5. Stainless Steel Tanker Trailer Advantage

Specially customized stainless steel plates are stronger and safer;

Standard butterfly head, greater strength; Stainless steel tanker trailer for sale uses EBS system;

Stainless steel tanker trailer for sale double reinforced structure design inside and outside the tank, double safety of the tank;

Stainless steel tanker trailer for sale The tank is fully load-bearing structural design, reducing the length of the frame and reducing its own weight;

Stainless steel tanker trailer for sale accessories are bolted to facilitate repair and maintenance;

Customized new thermal insulation materials optimize the thermal insulation structure of the tank to ensure the thermal insulation performance of the tank. Different insulation layer thicknesses can be selected according to the thermal insulation needs of different regions across the country;

Stainless steel tanker trailer for sale The tank body adopts P (plasma welding) + T (TIG argon arc welding), which has fewer welding defects, high strength and good shape. There are many transportation media, large capacity, and the effective volume of the tank can be customized.

Stainless steel tanker trailer for sale adopts finite element analysis design to improve the safety of the tank; the double reinforced structure design inside and outside the tank makes the tank double safe; the standard butterfly head has greater strength; the EBS system is used to enhance the stability of the body, which greatly improves the safety of the tank. Improve the active safety and passive safety of stainless steel tanker trailer for sale.

Stainless steel tanker trailer for sale uses stainless steel plates, which have strong applicability. A variety of stainless steel plates such as 304, 304L, 316, 316L, and 30458 can be used.

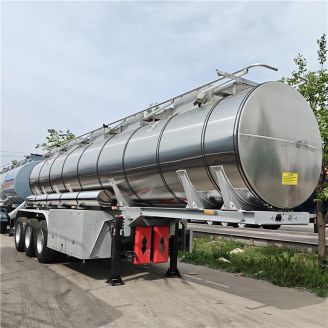

China Stainless Steel Tanker Trailer for Sale Transport with Best Price
