Chapter 1: TITAN fence cargo semi trailer
Chapter 2. About fence cargo semi trailer
The fence cargo semi trailer use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry. Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo. The stake semi trailer can be added with a container turn lock to transport the container.
Livestock stake fence trailer has a fence structure design. We have 2/3/4 axles, and load capacity has 30/40/60/80/100 tons for your choice. Customizable color and side wall height.
Through the video below, you can learn about different types of fence semi trailers(like 3 axle fence trailers, 4 axle stake trailer and fence full trailer)

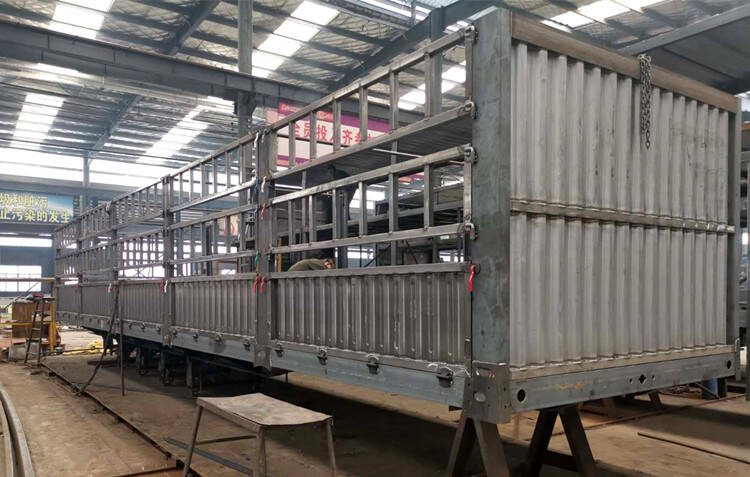

And the process, testing, packaging and customer feedback, etc.

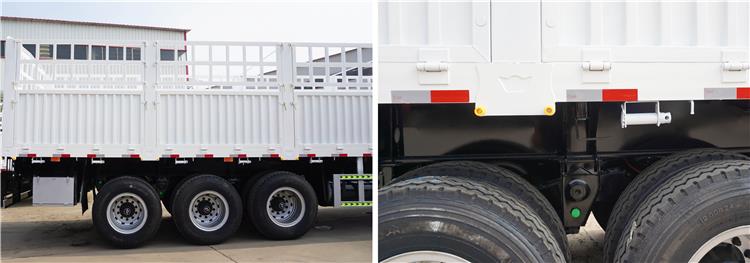

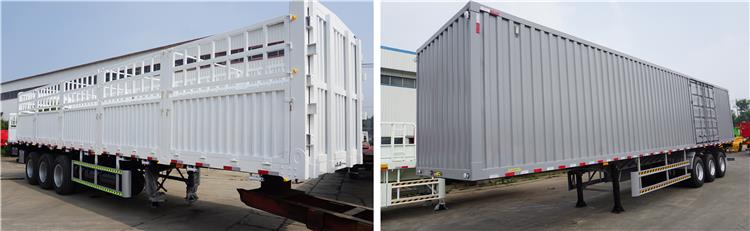

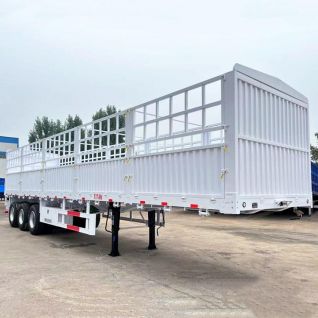

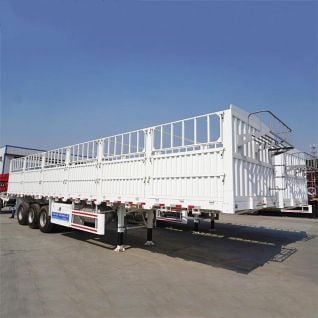

3 axle 60 tons fence cargo semi trailer

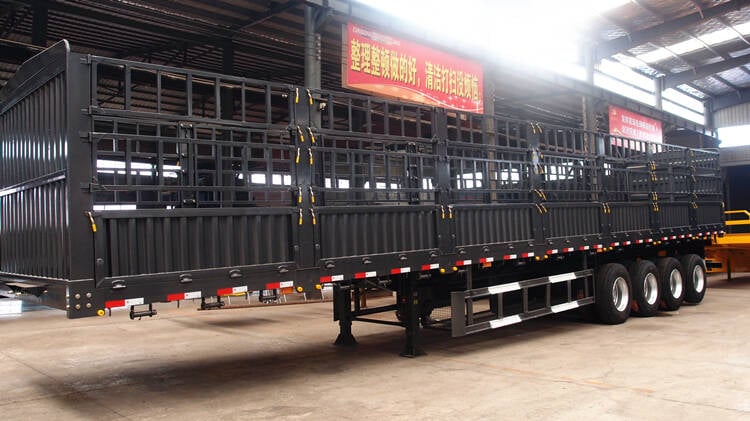

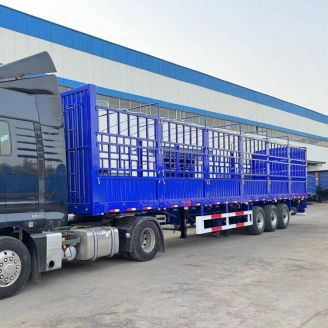

4 axle cargo transport fence semi trailer

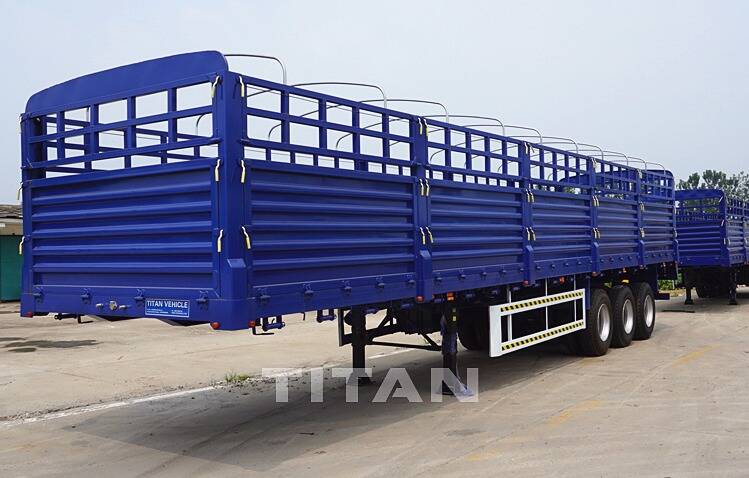

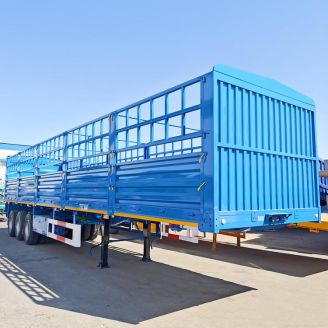

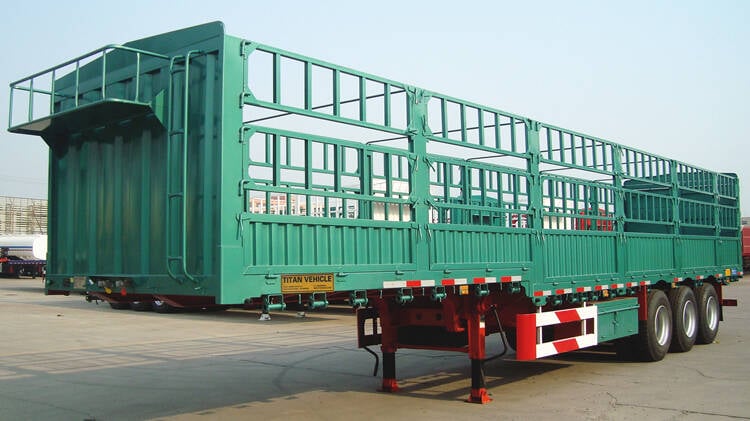

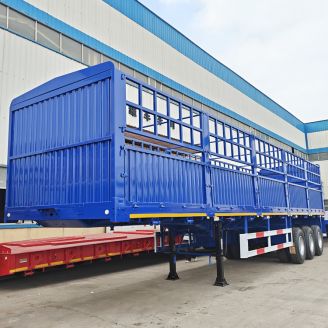

Most popular 3 axle 60 ton fence cargo trailer
Overall dimension: 12500mm*2500mm*3500mm(2000mm sidewall)
Loading capacity : 50-60ton
Material: Q345B Steel
Suspension：Heavy duty mechanical spring suspension
Bottom Platform: 3mm-thick checkered plate
Brake system : WABCO
Electical system : 24V , LED lights

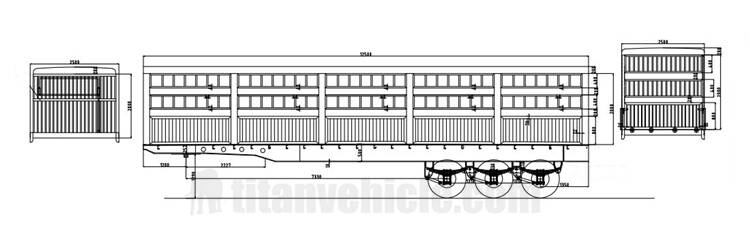

TITAN 3 axle fence cargo semi trailer drawing
More Technical Parameter Drawings

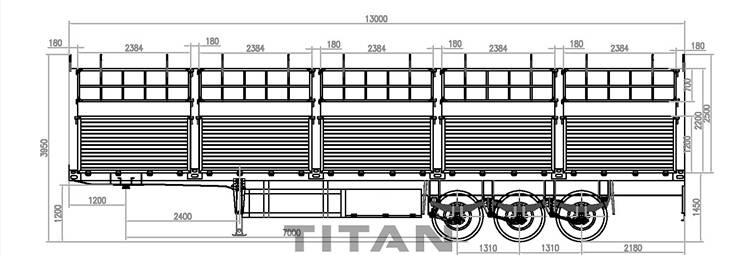

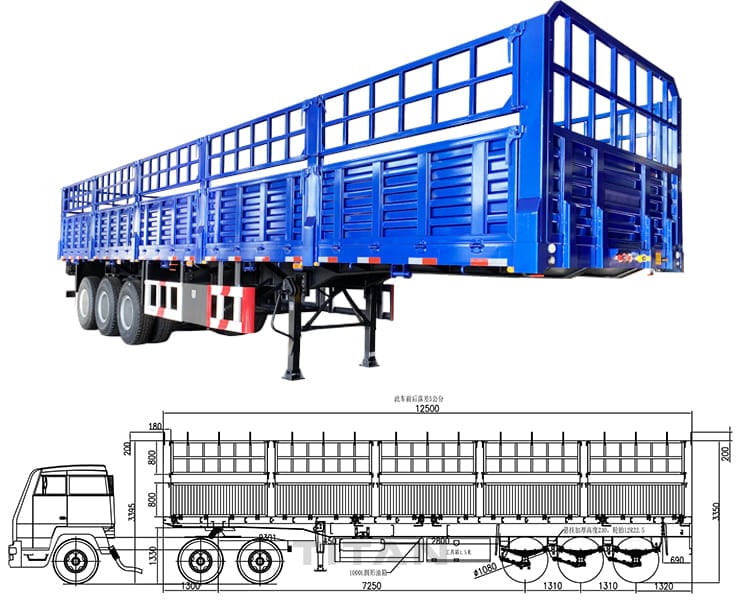

Technical drawing of TITAN 3 axle fence trailer

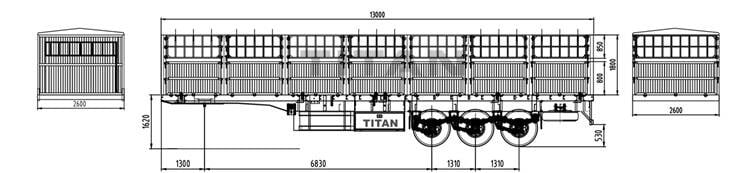

3 axle fence cargo semi trailer technical specification drawing

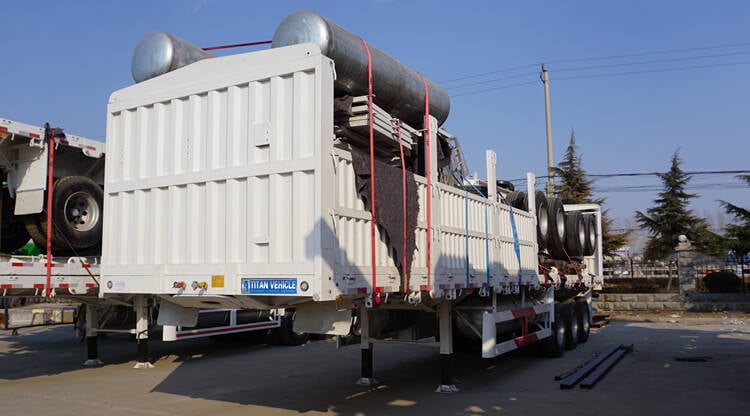

Many customers use container shipment, which has low transportation cost and short transportation time. But the bad thing is that the rear of the side wall semi trailer needs to be composed.

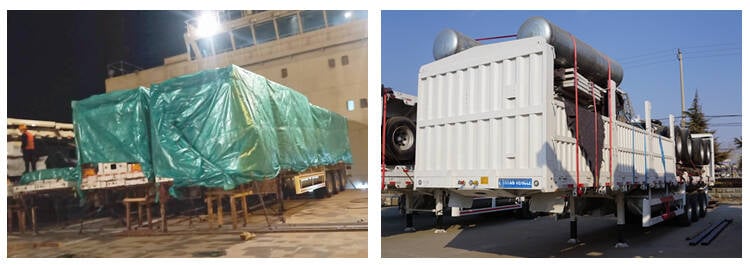

Some customers are bulk freighter or ro-ro ships. TITAN sideboards trailer will spray wax and cover the tarpaulin when the side wall trailer use bulk freighter.

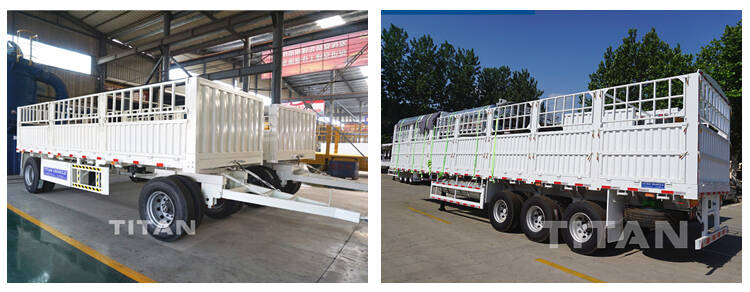

1> Fence full trailer is the front end of the trailer connected to the rear end of the tractor. The tractor only provides a pulling force and does not bear weight. That is, a full trailer is added behind the ordinary car, and the two are connected by a hook. The trailer can increase the loading capacity of the truck and reduce fuel consumption, thereby reducing transportation costs.
With respect to the car body, the tow bar or tow frame of the trailer can swing up and down or left and right. It is also used in mountainous areas or on bad roads.
2> Fence semi-trailer is a type of trailer whose axle is located behind the center of gravity of the vehicle. The semi-trailer is equipped with a coupling device that can transmit horizontal or vertical forces to the tractor truck. It doesn’t have itself power, Part of the total weight of the trailer is borne by the tractor truck.
The use of fence semi-trailers is very wide. With the strong carrying capacity and large loading capacity of semi-trailers, one truck can load three times the goods of ordinary trucks. Compared with other ordinary trailers, semi-trailers can bring more economic income.
Fence semi trailer develop on the basis of a container flatbed trailers and side wall trailer. The stake trailer has a fence structure design.Mainly used for transportation of agricultural and sideline products and other bulk cargo.
The fence cargo trailer can be added with a container lock to transport the container.
The common structure of the fence semi trailer is divided into four types according to the axle: 2 axles 40ft Poultry Semi Trailer, 3 axles 13 meters fencing trailer, 4 axles 15 meters sugar cane trailer, and the multi-purpose livestock trailer. And load capacity has 30/40/60/80/100 tons for your choice.
When transporting sugar cane trailer, many customers use container transportation, which has low transportation cost and short transportation time. But the bad thing is that the rear of the fence semi trailer needs to be composed.
Some customers are bulk carriers or ro-ro ships. Titan Flapper Semi Trailer will spray wax and cover the tarpaulin when the cargo ship is bulking.
How to know the quality of a warehouse trailer? The easiest way is to look at the weight of the stake trailer. The heavier the weight of cargo trailer, the better the quality. The 3 axle cargo trailer purchased by African customers self weighs is 8.5 tons. If the weight is only 7.5 tons, the cost of this fence cargo trailer can save more than 1,000 dollars.
Here are a few more important points:

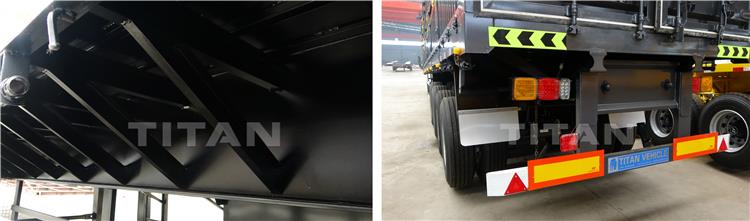

1. Main beam.
The main beam should pay attention to whether the thickness is an international standard. The international standard for the main beam of a cargo trailer is 14/8/16 mm. The steel plate in the middle of the beam uses Q345B manganese steel, the thickness is 8mm. Many unreliable suppliers will use 6mm main beam to save costs. But the carrying capacity was reduced by 26%.
The international standard thickness of the middle part of the beam must be 8mm.
2. Bottom Floor.
Many Side Grill Trailers are also used to transport bulk cargo and other items. The bottom plate of the Titan fence drop side trailer passes the international standard 3mm thick checkered plate. If it is replaced with a 2mm thick pattern plate or a 2.5mm bottom plate. Cost can be reduced by $ 700.

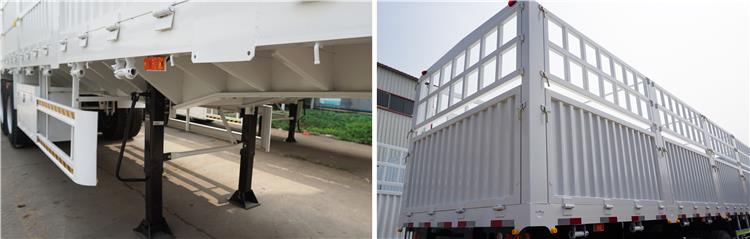

3. Side door.
The common height of side door is 600mm, 800mm, 1000mm. The side door adopts vertical corrugated structure.
The door frame is a 40x60mm rectangular steel tube.

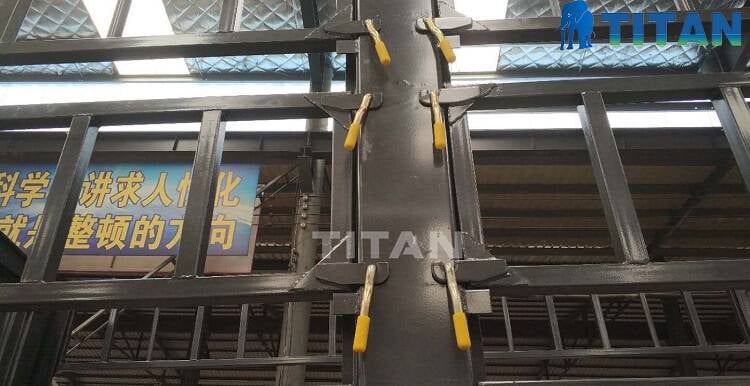

4. Stake style.
The overall height of the fence cargo trailer, the overall height of the stake trailer is 1.6 meters, 1.8 meters, 2 meters. You can customize the height and style of the fences trailer.
The axles of fence truck trailer for sale are divided into three types: 13-ton axles, 13-ton axles + 16-ton brake system axles, 16-ton axles,
The axle of the Titan fence drop side trailer is a 13-ton axle + 16-ton brake system axle, which has better braking performance and shortens the braking distance by more than 5 meters.
The 3 axle livestock trailer uses a vacuum tire with better heat dissipation performance, the model is 12R22.5.
TITAN trailer stakes uses custom made tires in a tire factory., wear-resistant tires. On Chinese highways, Titan tires can reach more than 300,000 kilometers.
7. Suspension of livestock trailer
TITAN livestock trailer suspension adopts special high-strength steel. 6mm thickness. Center pin diameter is 70mm.
Stronger than suspensions in many factories.
