Wind Blade Trailer

3 Line 6 Axle Wind Turbine Transportation Trailer with rotor adapter used to transport wind turbine blades to the top of the mountain.
56M Windmill Blade Transport Trailer adopts the extendable structure to extend the length, and the wind blade lies flat on top of the trailer.
Wind Turbine Transport Vehicles Trailer, in this design structure, the turbine blades are fixed on the adapter. The special thing about this trailer is that the adapter is customized for the blade.
62M Windmill Blade Transport Trailer belongs to extendable trailers mainly used to transport wind turbine blades.
58M Extendable Wind Turbine Trailer continues to find a major use and application around the world. This is particularly in such industries as the wind industry and many others whose operations would require the use of this kind of trailer.
3 Line 6 Axle Wind Blade Trailer mainly used to transport wind turbine blades to the top of the mountain for installation.
Windmill Blade Trailer is used to transport turbine blades on mountain roads and curved roads as well.
A 4 Axle 56M Extendable Trailer configuration is a trailer mechanism that is designed and adapted to be towed through the use if a tractor truck travelling along a roadway.
  • 1/1

All the products are customized to meet your requirement! And we are doing a special promotion of spot trailers. You can click here to watch videos of the wind blade trailer!

wind blade trailer video



Specification of the wind blade trailer:

Brand: TITAN Adapter wind blade trailer for 80m wind turbine blade transportation

Dimension: 16250mm*3700mm*5000mm

Loading capacity: 23.5 Tons

Axle: 3 lines 6 axles/4 lines 8 axles

Max rotation angle: 360°

Hydraulic station: 40KW Four-cylinder Diesel Engine

Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher

Transportable wind blade specification: 121-155 model

Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16

Brand: Extendable wind blade trailer

Dimension: 12500mm →25000mm-44000mm→55000mm (customized)

                       (Size can be tailored to suit individual needs.)

Loading capacity: 60-80 T

Axles:3/4/6axles

Suspension:Heavy duty mechanical suspension

Tire:12/16/24 units

King pin:90#

Landing gear:JOST

Brake system : WABCO

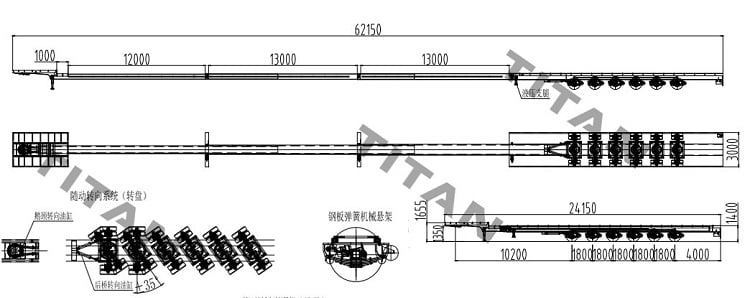

drawing of the wind blade trailer

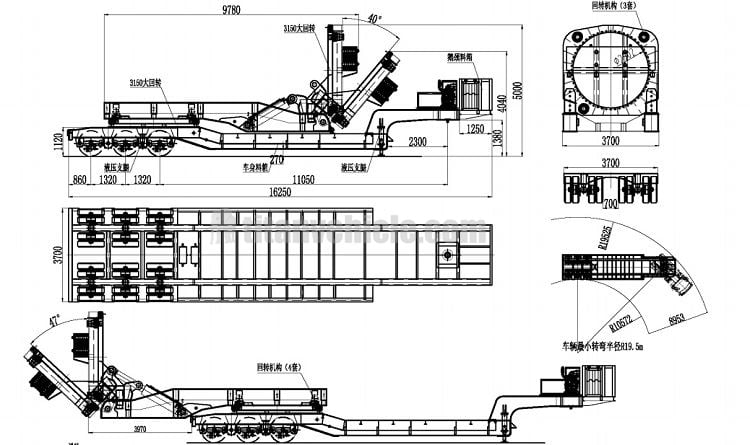

Drawing of the wind blade trailer with adapter

extendable wind blade trailer

6 axle extendable wind blade trailer



Wind blade trailers include ordinary wind blade trailer, axial wind blade trailers, and lifting wind blade trailers.

1. Ordinary extendable wind blade trailers are a bit similar to lowbed transport trailer vehicle, but the girder adopts a buckle box design, and the girder is drawn to adjust the length of the vehicle to adapt to the transportation of vanes of different lengths.

2. The big difference between the axial wind blade trailer and the ordinary extendable wind blade trailer is that the chassis adopts a hydraulic axis design, so that the vane truck has a lower cargo deck and more flexible steering.

3. Lifting wind blade trailer refers to a wind blade trailer transport vehicle equipped with a hydraulic lifting device, which is mainly aimed at the transportation of blades in mountainous areas. In the case of flat roads, the blades are transported flat. In the case of extremely small turning radius in mountainous areas, the lifting device is used to raise the height of the transported items (usually 5-10 meters), and shorten the length of the vehicle to bypass obstacles.
