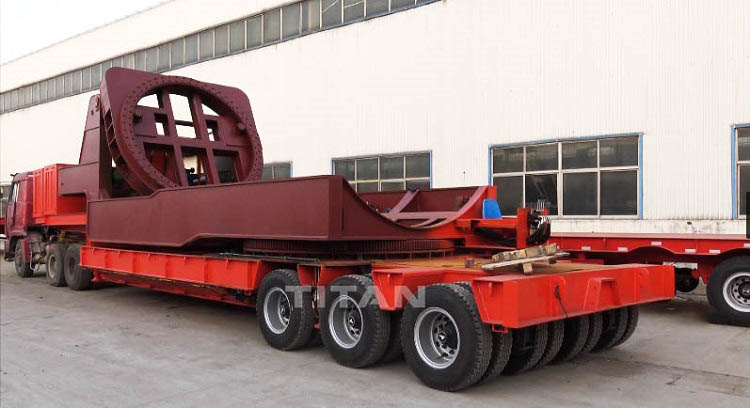

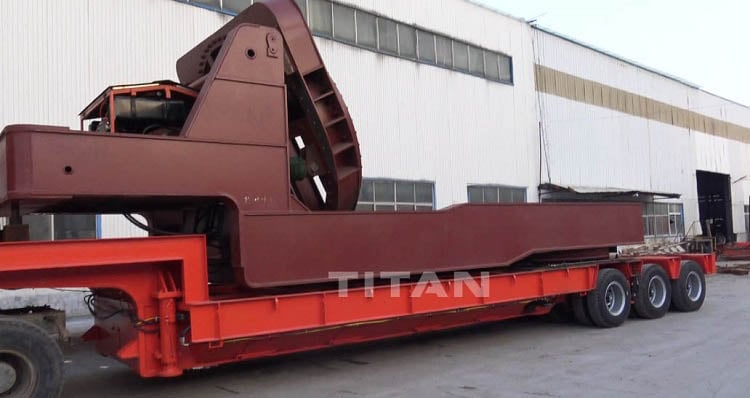

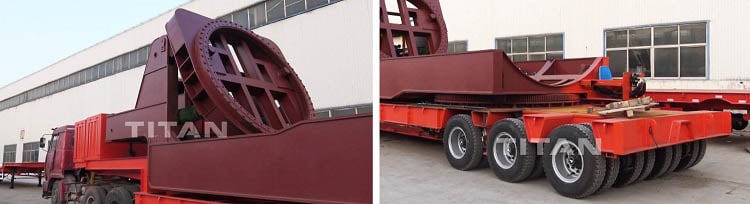

Windmill Blade Trailer

Windmill Blade Trailer Product Description:

Windmill blade trailer for sale from China. TITAN Trailers specialized in the transportation of wind energy industry components and construction of wind power stations. TITAN is a manufacturer and supplier of specialized transport equipment, offers a one-stop solution for all kinds of difficult transport jobs.

Specification:

Brand: TITAN Adapter trailer for 80m wind turbine blade transportation

Dimension: 16250mm*3700mm*5000mm

Loading capacity: 23.5 Tons

Axle: 3 lines 6 axles

Max rotation angle: 360°

Hydraulic station: 40KW Four-cylinder Diesel Engine

Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher

Transportable wind blade specification: 121-155 model

Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16

Advantage:

1. These type of trailers are used to transport turbine blades on mountain roads and curved roads as well.

2. Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.

3. The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily.

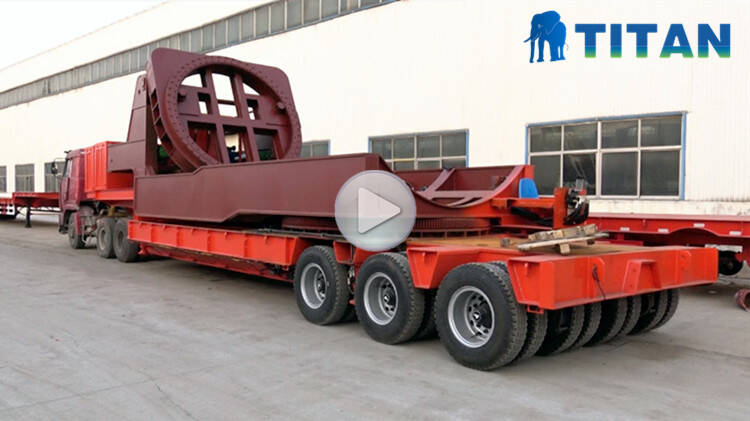

Through this video, you can learn more details about windmill blade trailer , 3 line 6 axle windmill blade trailer for sale , windmill blade transport trailer, etc.

If you want to know more types of wind blade trailers, please click here "Wind Blade Trailer" to watch the video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
