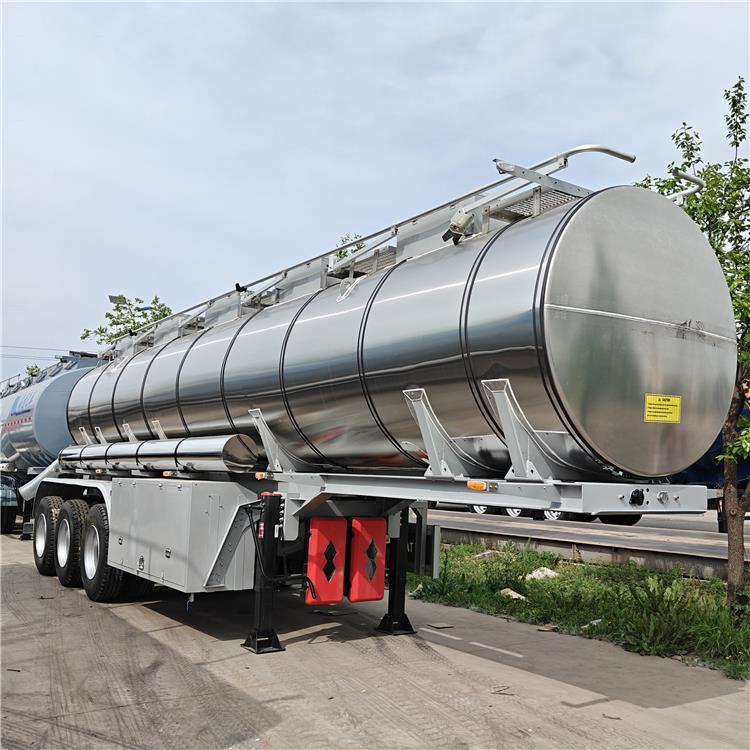

3 Axle 45000 Liter Stainless Steel Tanker Trailer

Stainless Steel Tanker Trailer Video:



45000 Liters Stainless Steel Tanker Trailer Price: 23000 USD

Stainless steel tanker trailer has excellent corrosion resistance, high cleanliness, and large capacity, making it widely used in chemical liquid transportation. It is suitable for transporting mildly corrosive liquids or chemical products with extremely high purity requirements, such as methanol, ethanol, acetic acid, and various industrial solvents.

Stainless steel tanker trailer uses food grade stainless steel materials (such as 304/316l stainless steel) that meet food safety standards, and it is widely applied for transporting edible oil, soy sauce, milk, fruit juice, liquid syrup, alcoholic beverages, and drinking water.

Although carbon steel tanker trailers can also transport fuel, for aviation fuel with extremely strict purity requirements, such as aviation kerosene, or the transportation of high end additives, stainless steel tanker trailer can effectively prevent rust contamination and ensure the purity and quality of the transported liquids.

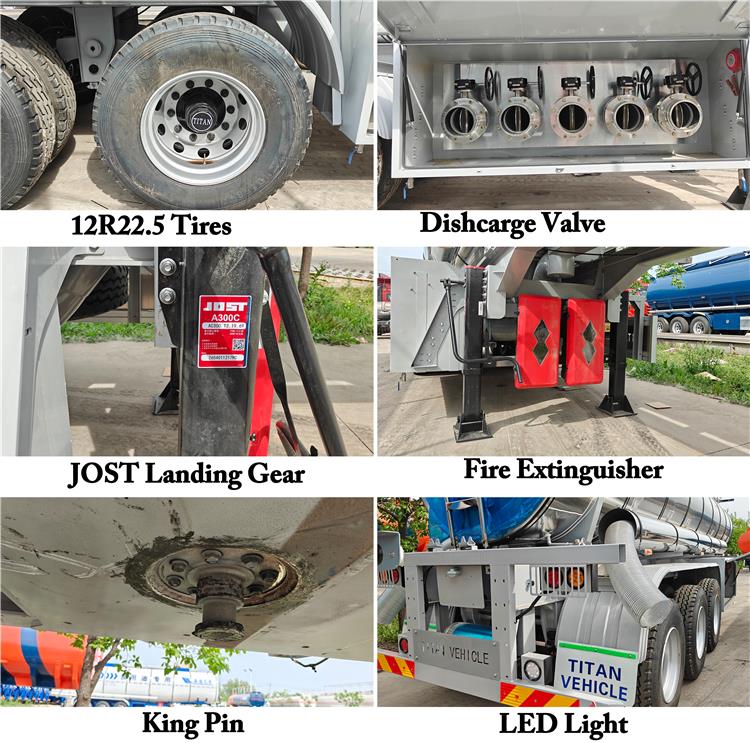

3 Axle 45000 Liter Stainless Steel Tanker Trailer for Sale In Saudi Arabia

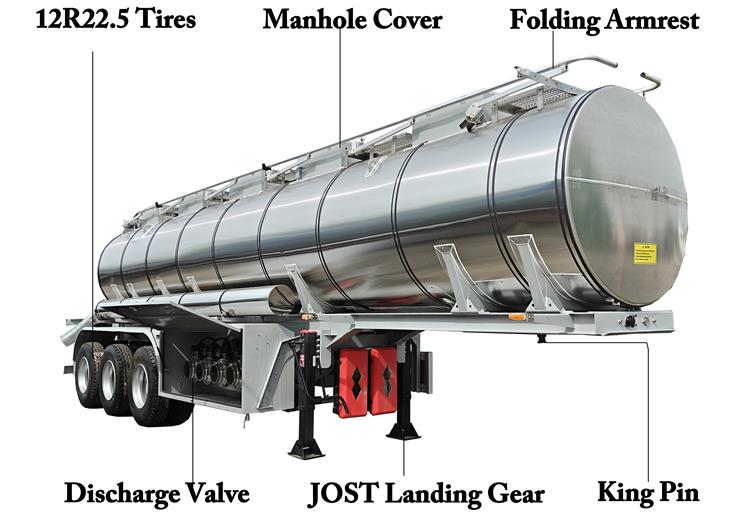

3 Axle 45000 Liter Stainless Steel Tanker Trailer for Sale In Saudi Arabia

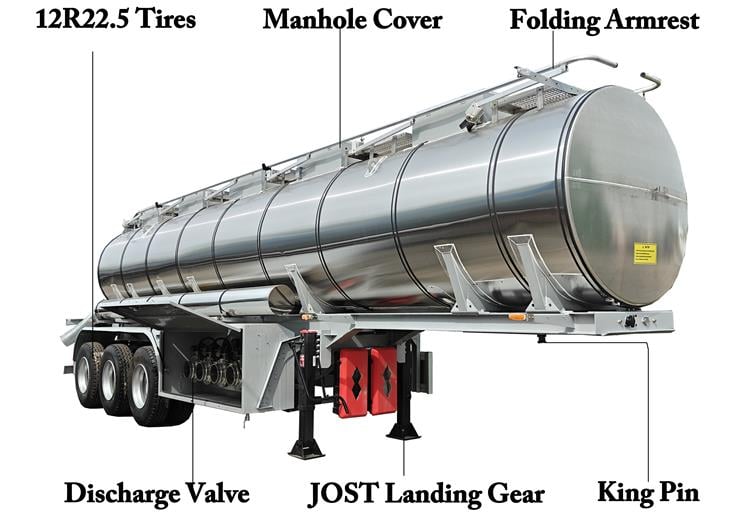

3 Axle 45000 Liter Stainless Steel Tanker Trailer for Sale In Saudi Arabia

Specifications of Stainless Steel Tanker Trailer

Overall dimension: 12850mm * 2500mm *3900mm

Transport: fuel, petrol, oil

Tank body material: stainless steel

Axles: 3 axles

Suspension: Heavy-duty mechanical suspension

Tire: 12 units，12R22.5 Tires

Discharging Pipe: 2 pcs, 6m/each

Kingpin: 90#

Landing gear: JOST

Brake system: WABCO

Electrical system: 24V, LED lights

Advantage of Stainless Steel Tanker Trailer

Stainless steel tanker trailer usually adopts high industry standards and high strength configurations. The common configurations include a total volume of 45,000 liters, with multiple compartments (2-5 compartments) available according to the density of different materials.

The tank body is made of high quality stainless steel (commonly sus304 or highly corrosion resistant sus316l). The tank thickness is usually 4mm-5mm for the cylinder body and 5mm-6mm for the end heads, which can be customized according to different standards. The axle system uses 3 axles with 13 ton/16 ton capacity, and premium brands such as bpw and fuwa are available. The suspension system can be equipped with mechanical leaf spring suspension or air suspension, with air suspension being more suitable for food grade transportation and shock absorbing operations. The tire specification is 12r22.5 tubeless steel radial tires, with a total of 12 tires. The operation system is equipped with european standard manhole covers, bottom valves (emergency shut off valves), bottom loading oil systems (optional), and overflow protection systems.

Stainless steel tanker trailer features excellent corrosion resistance, long service life, and pollution free transportation. The stainless steel material has a dense chromium oxide protective film on its surface, which can resist the corrosion of most acidic, alkaline, and salt liquids. Compared with traditional carbon steel tanks, stainless steel tanker trailer does not rust, which not only greatly extends the service life of the tank body (usually reaching more than 15-20 years), but also ensures that the transported materials are not contaminated by rust or impurities.

Stainless steel tanker trailer has a smooth internal surface, making it very easy to clean. When a fleet needs to change different types of liquid materials after one transportation trip (for example, changing from shampoo raw materials to industrial alcohol), stainless steel tanker trailer only requires standard steam cleaning to achieve the required cleanliness level. It is also less likely to retain odors, helping improve vehicle utilization and operational efficiency.

Stainless steel tanker trailer is equipped with or optionally equipped with a complete set of european standard safety systems. The bottom valve (emergency shut off valve) can automatically disconnect in the event of a severe collision while keeping the valve body sealed, preventing large amounts of liquid leakage.

Stainless steel tanker trailer is equipped with internal baffles and compartment end heads, which can effectively reduce liquid impact during vehicle operation, especially during braking, while also allowing one trailer to transport multiple different materials at the same time.

Stainless steel tanker trailer adopts advanced manufacturing processes such as automatic plasma welding and corrugated anti wave plates to optimize the overall structure and improve durability.

If you mainly transport food grade materials, it is recommended to equip stainless steel tanker trailer with a cip automatic cleaning system and air suspension as standard, which can reduce fatigue damage to the tank body caused by road vibration during transportation. If transportation is carried out in extremely cold regions, an additional 50mm-100mm insulation layer (rock wool/polyurethane) and stainless steel outer cladding are required to maintain temperature stability and protect the transported materials.
