150Ton Lowboy Trailer
150Ton Lowboy Trailer

150Ton Lowboy Trailer

27000 USD

Different Parameters, Different Price. Price Reference Only.



TITAN gooseneck lowboy trailers can make the 2/3/4/6 axles lowboy trailers, with the capacity of 40/50/60/80/100/120 ton. We also can provide optional solutions for your transport requirements.

SKU: 150Ton Lowboy Trailer
MPN: TITAN9409007
Brand: TITAN

Product Description:

TITAN detachable gooseneck lowboy trailers for transport excavator and construction equipment, large machinery transportation.

4 axle 150 ton lowboy with dolly trailer main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. TITAN removable gooseneck lowboy trailer adopts reinforced the gooseneck and upper and lower plate by double layer.

TITAN can make the 2/3/4 axles lowboy trailers, with the capacity of 60/80/100/120 ton. To meet your transport needs and your local regulations, we can customize different configuration removable detachable gooseneck lowboy for you.

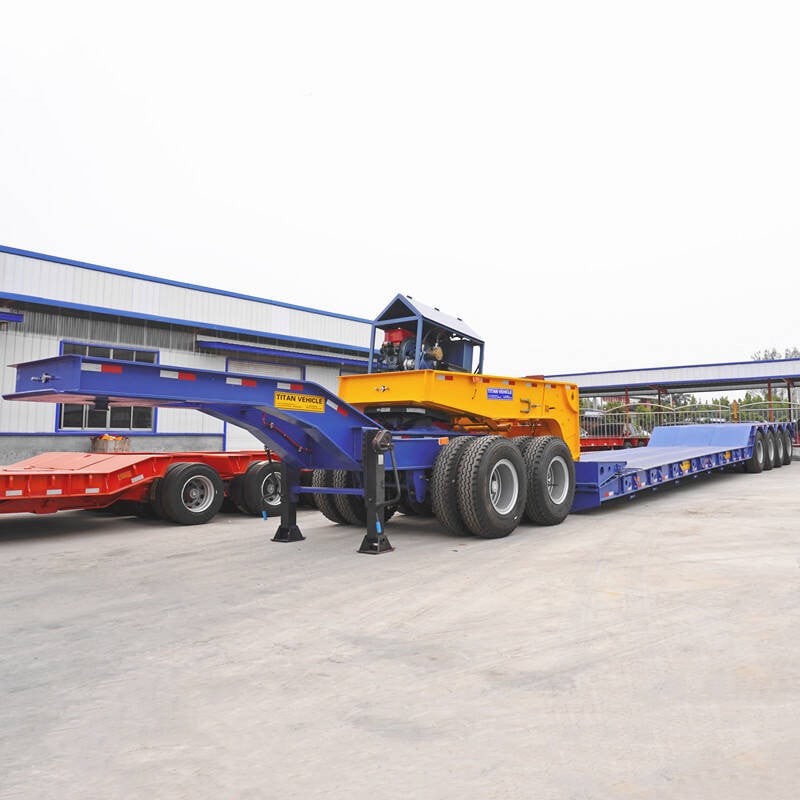

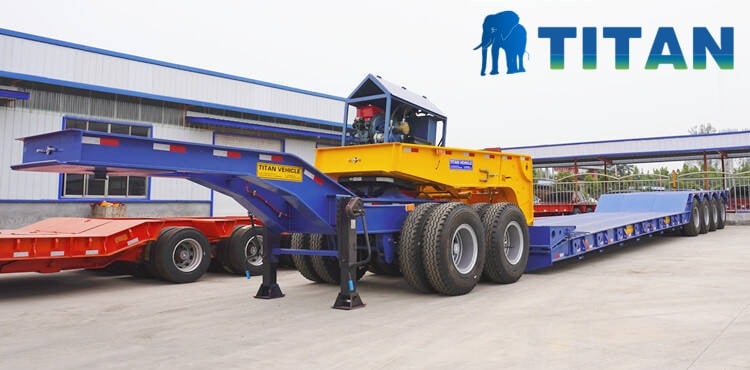

4 Axle 150 Ton Detachable Removable Gooseneck Lowboy with Dolly Trailer for Sale

4 axle 150 ton removable gooseneck lowboy with dolly trailer testing

4 Axle 150 Ton Detachable Removable Gooseneck Lowboy with Dolly Trailer for Sale

4 axle 150 ton removable gooseneck trailer with dolly for sale

4 Axle 150 Ton Detachable Removable Gooseneck Lowboy with Dolly Trailer for Sale

4 axle 150 ton detachable gooseneck trailer with dolly for sale

4 Axle 150 Ton Detachable Removable Gooseneck Lowboy with Dolly Trailer for Sale

4 axle 150 ton detachable gooseneck lowboy trailer with dolly details display

4 Axle 150 Ton Detachable Removable Gooseneck Lowboy with Dolly Trailer for Sale



Specification:

Overall dimension:17900mm * 2500+250*2mm *2200mm(platform 800mm)

Loading capacity:  150 ton

Axles:4 axles with 2 axles dolly

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust



4 axle 150 ton detachable gooseneck lowboy trailer testing video display

4 axle 150 ton detachable gooseneck lowboy trailer testing video display

Through this video, you can learn about different types of lowboy semi trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Lowboy Trailer" to get the detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
