Mechanical Folding Neck Trailer
Mechanical Folding Neck Trailer

Mechanical Folding Neck Trailer

27000 USD

Compare to rear ramps, mechanical folding neck trailer is shallow and stable, could effective solutions for cargo loading.

SKU: Mechanical Folding Neck Trailer
MPN: TITAN9435001
Brand: TITAN

Mechanical Folding Neck Trailer Product Description:

When unhooking from the prime mover, the folding neck trailer for sale’s neck could be folded to ground as a shallow slope for crawler crane and other machines to drive on.

The gooseneck of this mechanical folding neck lowboy trailer is a design with a hydraulic folding structure. When the structure folded, it’s a gooseneck to connect the folding gooseneck trailer for sale with the prime mover. When it unfolded, it’s will touch the ground as a shallow slope for cargos loading. Compare to rear ramps, it’s shallow and stable, could effective solutions for cargo loading.

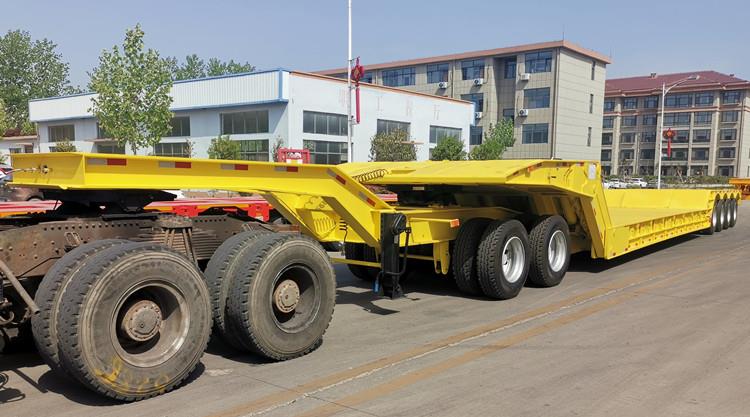

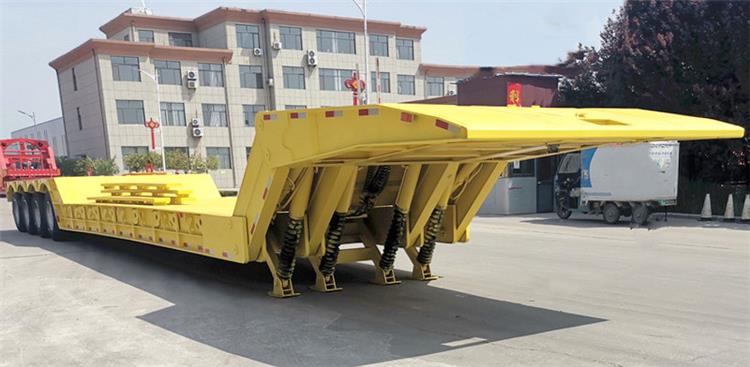

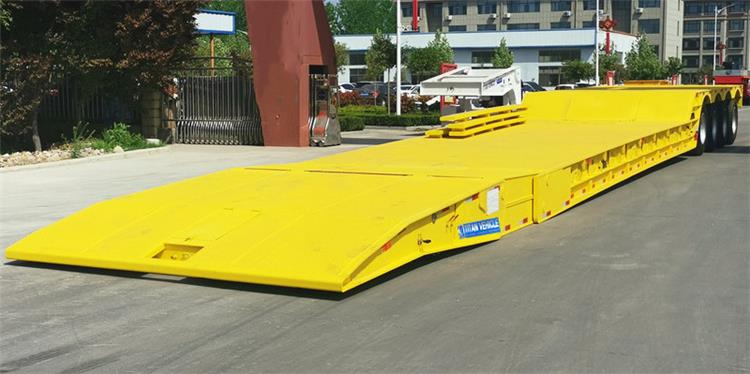

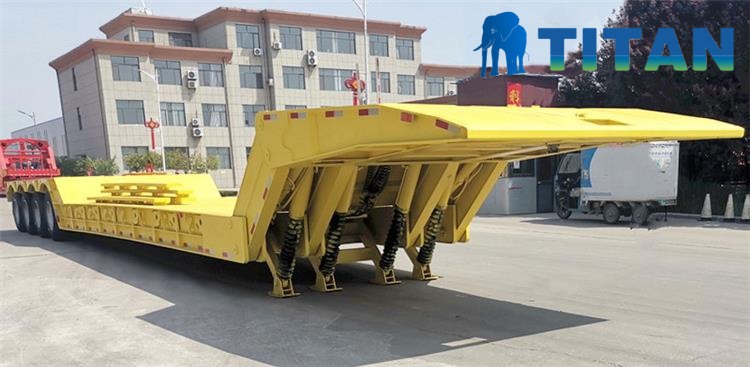

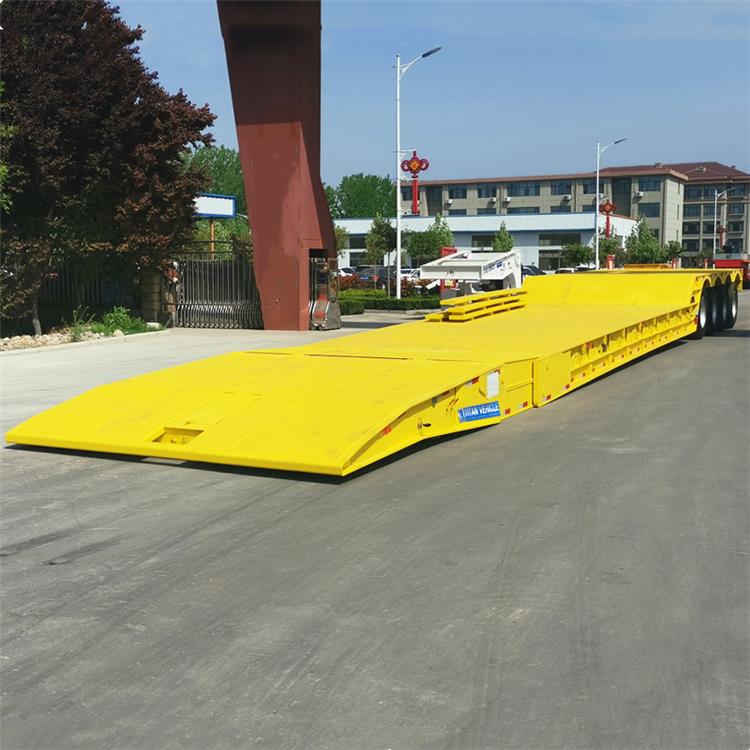

Mechanical Folding Neck Lowboy Trailer for Sale

Mechanical Folding Neck Lowboy Trailer for Sale

Mechanical Folding Neck Lowboy Trailer for Sale

Mechanical Folding Neck Lowboy Trailer for Sale

Mechanical Folding Neck Lowboy Trailer for Sale



Mechanical Gooseneck Trailer Specification:

Dimension: 18000mm x 3800mm x 1800mm

Working platform: 14000*3800MM

Loading capacity: 100 TONS.4 AXLES,16TONS.

Gooseneck: hydraulic folding gooseneck.

Side hook for chain or belt

Checkered plate with 20 mm squre bar on ramps

Twist locks :6 units for 40/45 ft container

Axle: 4 Axle

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

folding gooseneck trailer drawbar

Through the video, you can know different types of gooseneck trailers, as well as the process, testing, packaging and customer feedback, etc.

4 Axle Hydraulic Folding Gooseneck Trailer for Sale in Nigeria



Please click "TITAN Removable Gooseneck Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
