Container Flatbed Trailer 4 Axle with Headboard

Container Flatbed Trailer 4 Axle with Headboard

TITAN can provide the buyers the best container flatbed trailer 4 axle with headboard for sale, this container flatbed trailer 4 axle with headboard is designed for transporting standard containers.

TITAN container flatbed trailer 4 axle with headboard main beam is using the Q345 steel material, which gives the container flatbed trailer more solid body, and not easy to be deformed.

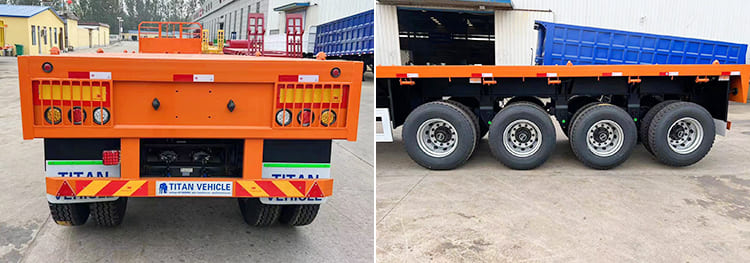

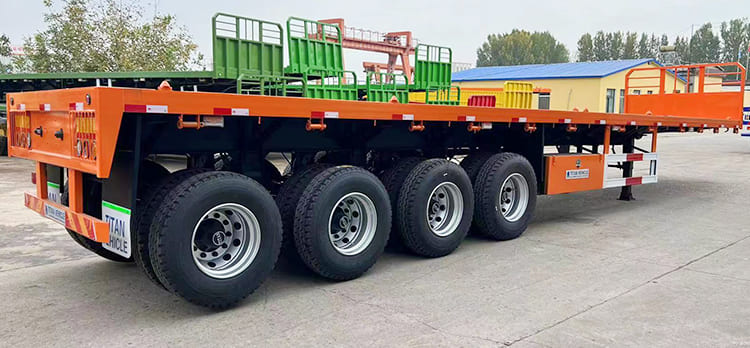

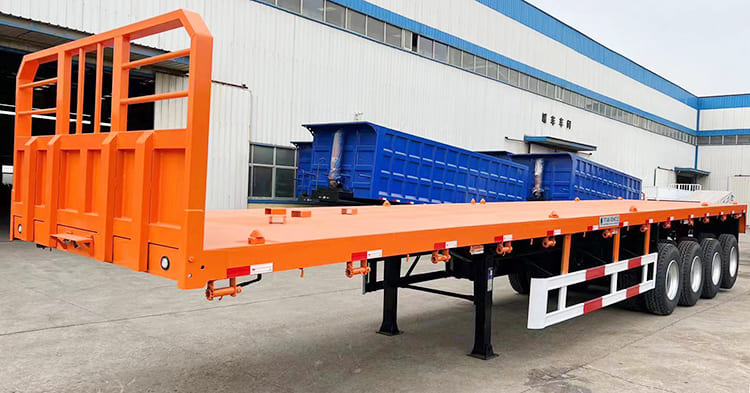

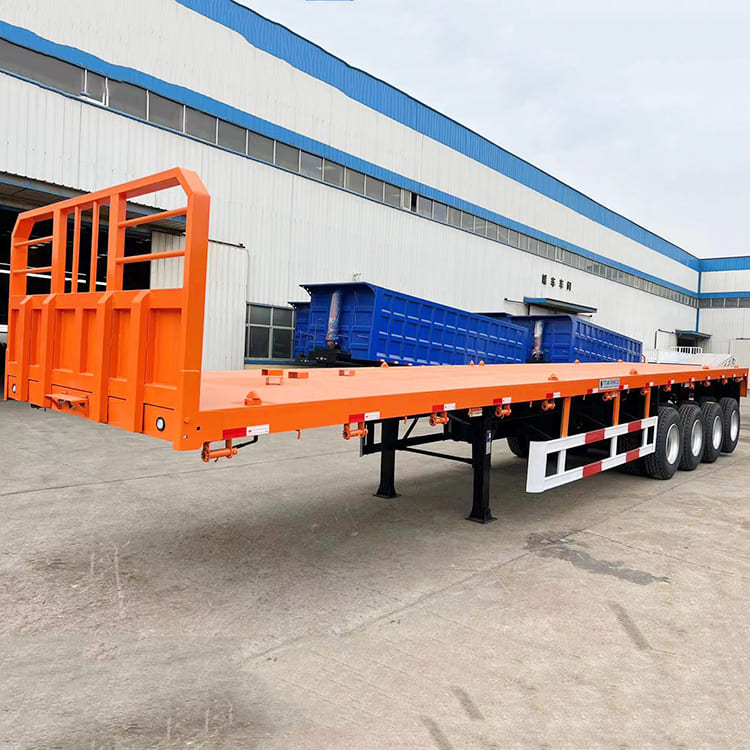

Container Flatbed Trailer 4 Axle with Headboard for sale in Nigeira

Container Flatbed Trailer 4 Axle with Headboard for sale in Nigeira

Container Flatbed Trailer 4 Axle with Headboard for sale in Nigeira

Container Flatbed Trailer 4 Axle Specification

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 4 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

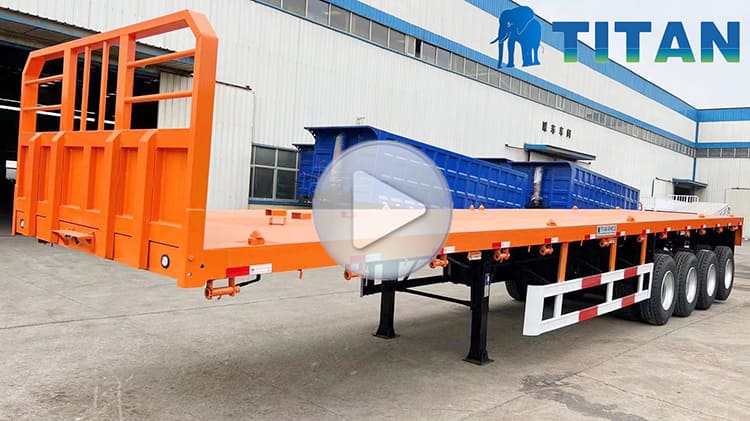

Video of the container flatbed trailer 4 axle

Through this video, you can see different types of container flatbed trailers, As well as the process, testing, packaging and customer feedback, etc.
