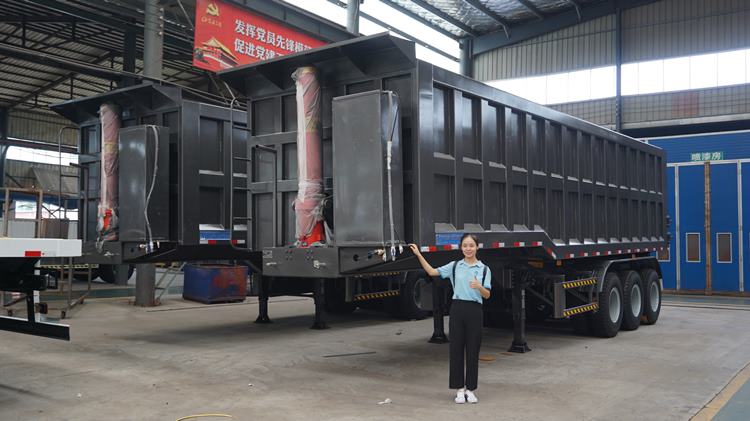

3 Axle 80 Ton Tipping Trailer

3 Axle 80 Ton Tipping Trailer--USD 20500

Product description:

3 Axle 80 Ton Tipping Trailer is a big trailer that usually lifts when dumping its hall in a chosen location. 3 Axle Tip Trailer will help you to carry and offload bulk goods in a very easy and efficient manner, your operations will be highly affordable.

TITAN 3 Axle 80 Ton Tipping Trailer adopt Submerge-arc welding, The protective effect of the slag insulation when isolated air is good, the welding parameters could keep stable by automatic adjustment, the weld composition is stable and the mechanical performance is better.

TITAN 3 Axle 80 Ton Tipping Trailer--USD 20500

Specification:

Dimension	900025004000mm
Material	Q345B High strength steel
Cargo body size	830023701800mm
Cargo body volume	35m³
Payload	80 Ton
Main beam	Middle plate:480mm height , 6+6mm thick Upper:14mm thick Bottom:16mm thick
Bottom thickness	8mm
Sidewall thickness	6mm
Axle	3 axles, 16 ton TITAN
Tire	11R20, 12 units
Hydraulic system	TITAN 214 Heavy duty hydraulic cylinder
Suspension	100mm thickness , 70mm king pin
Spring	10 pcs , 16mm thickness
Landing gear	Jost E100
Braking system	WABCO emergency brake valve
Accessories	1 standard tool +1 spare tyre carrier
Color	Optional
Painting	Polyurethane paint

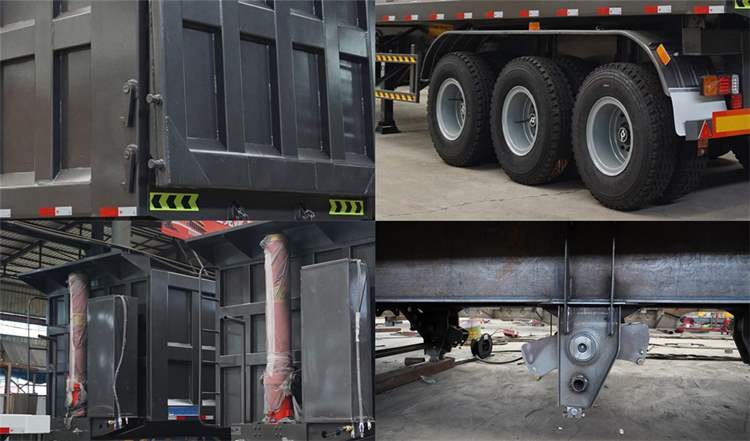

Some detail of this tipping trailer

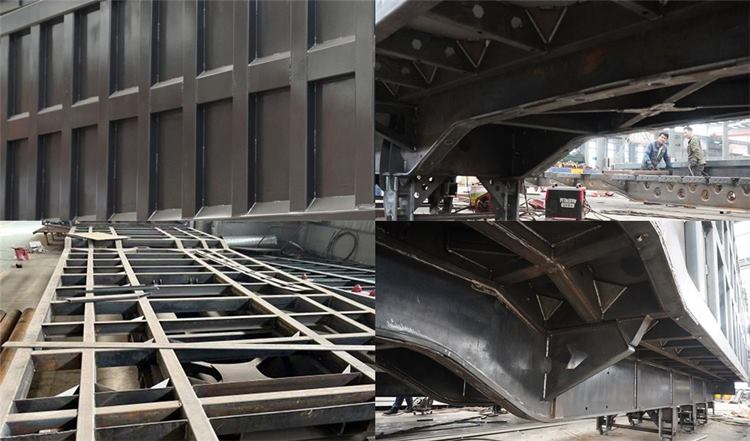

Beam / Sub-beam / Triangular reinforced

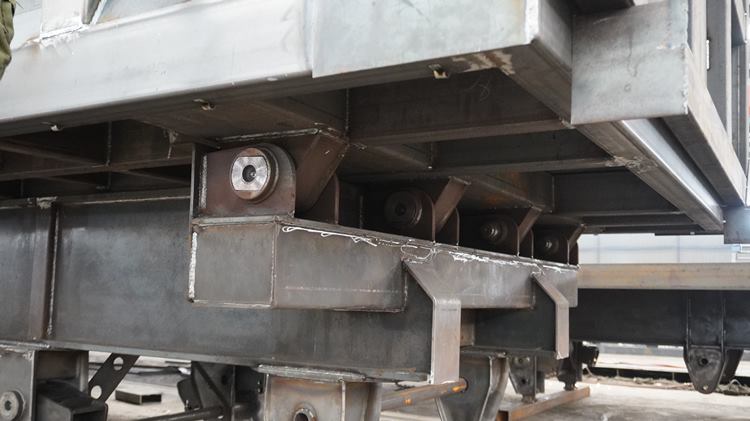

Balance beam

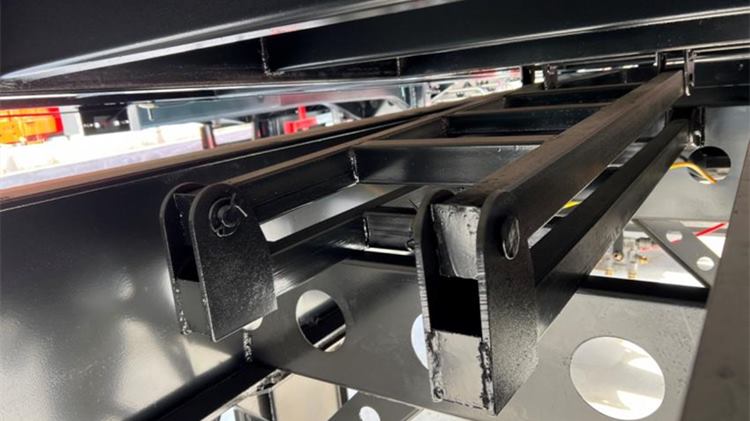

Heavy duty flip brackets

Double bukle / Tires / Heavy duty hydraulic cylinder / Suspension

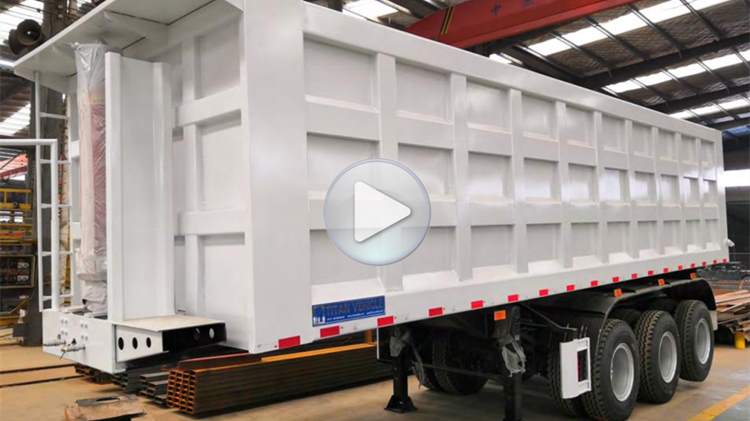

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Tipper Semi Trailer" to get detailed videos!

If you are interested in our products, please reply to me. I will provide professional service for you.
