Tipper semi trailer can be used in many other fields such as construction, agriculture, etc. They have different shapes and types, which are divided into Side Dump Trailer and rear tipping trailer. you can use side dump trailer to help save space. The load capacity of the side dump trailer may be greater than that of the rear tractor tipper trailer.
Side Dump Trailer for sale suitable for large workplaces, Side Tipper Trailer maximum carrying capacity can reach 80-100tons. Dropside side tipper trailer for sale is another type of dump truck, and it allows goods to be unloaded from the side. The main types of cargo transported by this semi-trailer are building materials, such as stone, sand, etc.



TITAN 3 Axle Side Tipping Trailer--USD 16800
| Dimension |
11000*2500*3200mm |
|
Material |
Q345B High strength steel |
|
Cargo body size |
11000*2570*1500mm |
|
Main beam |
Middle plate:480mm height , 8mm thick Upper:14mm thick Bottom:16mm thick |
|
Side beam |
160mm channel steel |
|
Bottom thickness |
4mm |
|
Sidewall thickness |
3mm |
|
Axle |
3 axles, 13 ton TITAN |
|
Tire |
12R22.5, 12 units |
|
Hydraulic system |
TITAN 5*130 hydraulic cylinder 1pcs displacement cylinder |
|
Suspension |
100mm thickness , 70mm king pin |
|
Spring |
10 pcs , 16mm thickness |
|
Landing gear |
Jost E100 |
|
Braking system |
WABCO emergency brake valve |
|
Accessories |
1 standard tool +1 spare tyre carrier |
|
Color |
Optional |
|
Painting |
Polyurethane paint |
Some detail of this siding tipping trailer

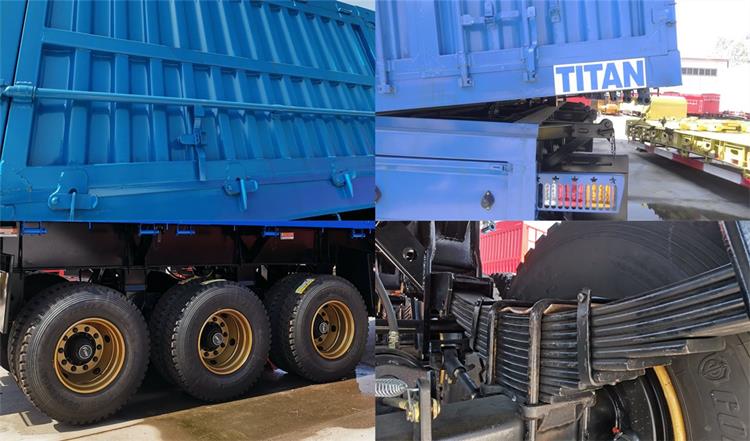

Door strike plate and lock rod / Tires / Spring

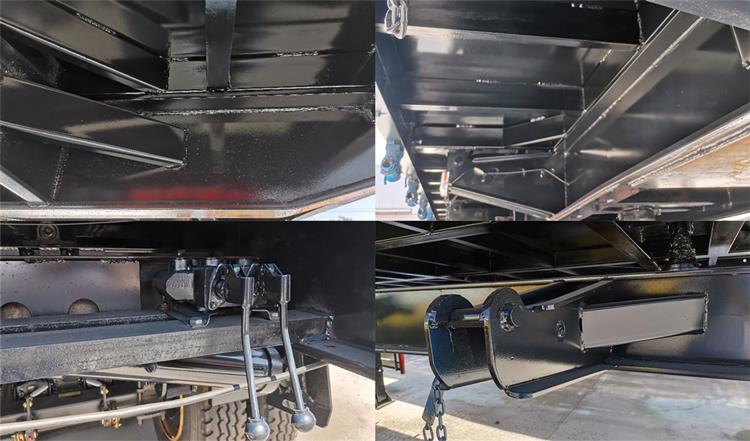

Some structure under the bottom platform

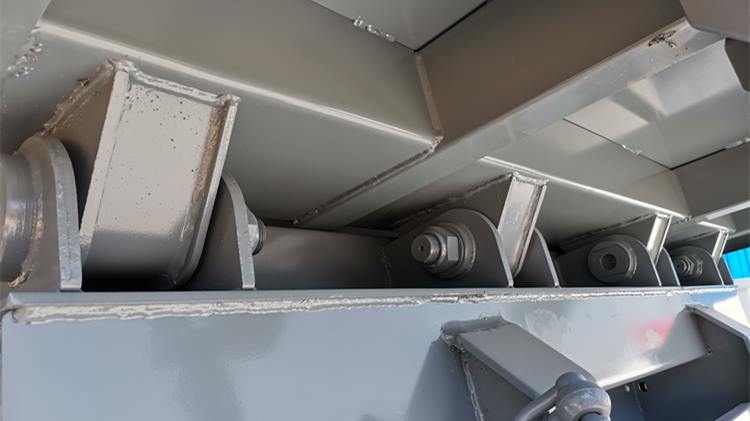

Heavy duty flip brackets

Shift Top
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
