Product Description：

TITAN tanker trailer adopts an advanced design concept. To fabric the most durable tankers, especially for Africa Market, considering the road condition. This distortion resistance, earthquake resistance and bump, make your transport safety, also beneficial.



TITAN offers carbon steel, stainless steel or aluminum material tanker trailers. The volume of the fuel tankers transport semi-trailer is 45,000 liters. With four compartments, to load different liquid.



The liquid tanker semi trailer used for carrying different liquids like fuel, petrol, water, palm oil, bitumen asphalt, etc.

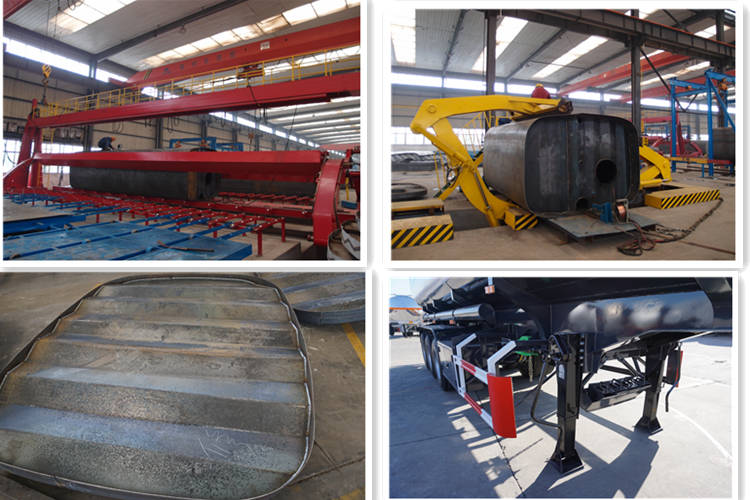

professional canning machine/longitudinal welding technology/wave board/landing gear

manhole cover

 Advantage:

1. Titan fuel tank trailer use Q345 low-carbon alloy steel to make the tank truck with a thickness of 5mm and a very strong tank body



2. Titan fuel tank trailer using the most advanced welding technology, through single-side welding double-sided forming welding, welding more solid and smooth, no welding without defects, absolutely will not appear the phenomenon of open welding, tank can be used for more than 10 years



3. TITAN tank adopts longitudinal welding technology to reduce the number of weld seams of the tank and improve the overall firmness of the tank by more than 20%



4. The tank body adopts the professional canning machine canning technology and forms at one time.The maximum to protect the tank to the firmness.In case of accidental collision, the tank will not crack.To ensure the safety of the tanker and increase the service life



5. Titan oil tanker adopts polyurethane paint with high adhesion, high chromogenic, beautiful color, and the cost is twice that of ordinary paint. The paint will not come off after five years



6. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.Before spray painting, the whole tank trailer for many times sandblasting rust, spray anti-rust paint, spray primer, spray top paint, three layers of paint spraying. The paint will last five years



7.discharging valve: it can be placed on the left or right side of the tank.The discharging valve could be made of European style



8.Bottom valve: each compartment of Titan tank has bottom valve. Other factories won't if customers didn’t required.



9. Titan has a 16-ton brake axle; TITAN's vehicle axles has 9 years of experience in production, better loading capacity and good braking effect. Other factories use 13 ton brake system axle

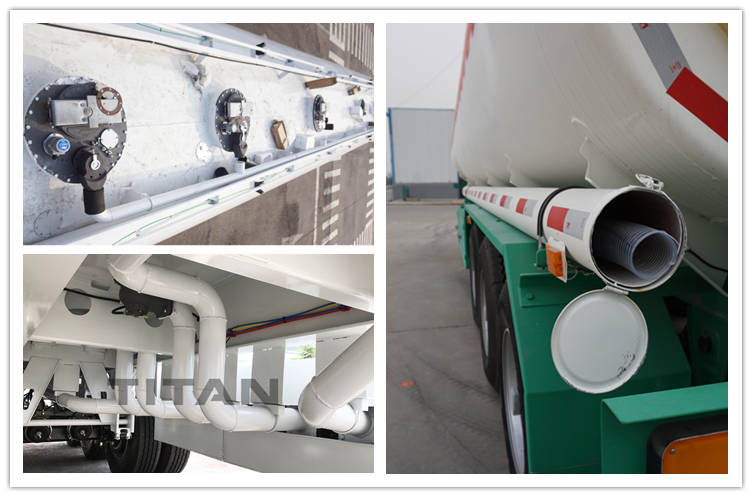

10.Manhole cover: we use the European standard anti-explosion cover. There are Built-in breathing valve,oil and gas recovery valve,overflow valve to keep safe



11.The wave proof plate reduces the impact of liquid on the tank

The tank is equipped with thickened wave proof plate to reduce the direct impact of liquid on the tank.



12.After the production, water testing will be carried out to ensure that the tank is well sealed and ensure the high sealed of tank body and avoid leaking oil.



13.Professional packaging solutions:Total bulk cargo and roll-on ship, will spray wax, cover poncho.The container will be fixed in the box.



Specification：

Shape: Round or square



Dimension: 11700mm * 2500mm *3750mm



Total volume: 45000 liters



Tank Body Material: 5mm Q235 low carbon alloy steel



End plate: 5mm Q235 low carbon alloy steel



Manhole Cover: European standard anti-explosion cover



Bottom Valve: Aluminum  API Pneumatic Bottom Valve



Discharging Valve: Diameter is 4 inch



Compartments:4 compartments



Discharging valve: 4 inch rubber hose,2pcs,6m/each



Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 low carbon alloy steel material



Axle:TITAN 3 axles,13T



Landing Gear: JOST



Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin



Suspension: Mechanical suspension



Leaf Spring: 90(w)mmx13(thickness)x10layers



Pneumatic Braking System: WABCO



Tire:TITAN 12R22.5 12units



Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.



Tool box:1 set tool box



Spare tire rack: 2 spare tire racks

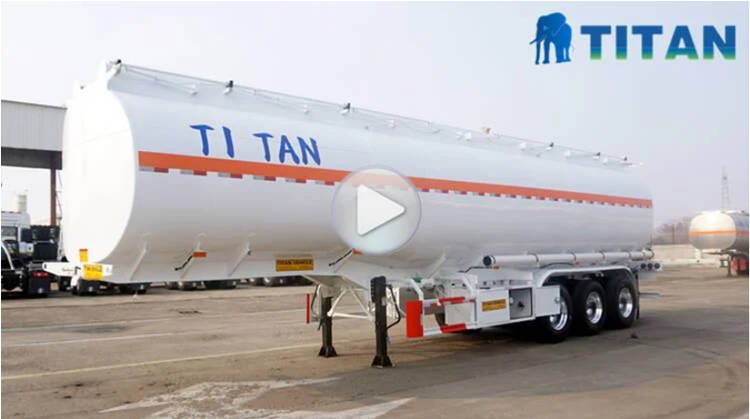

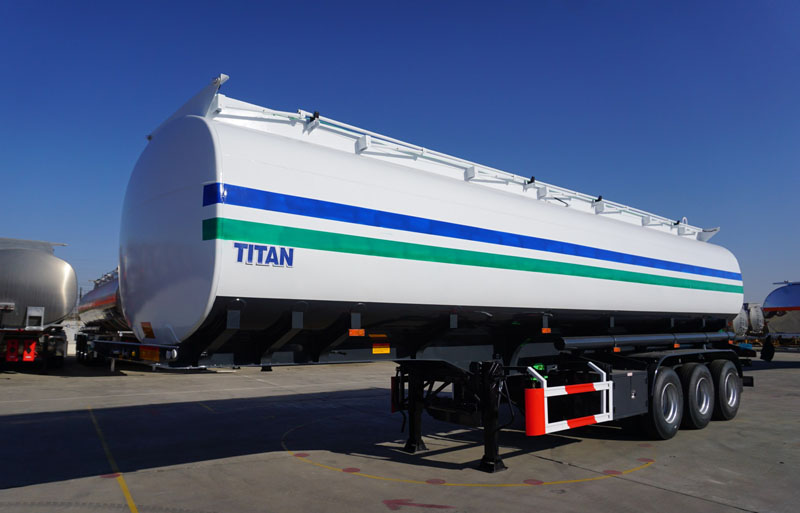

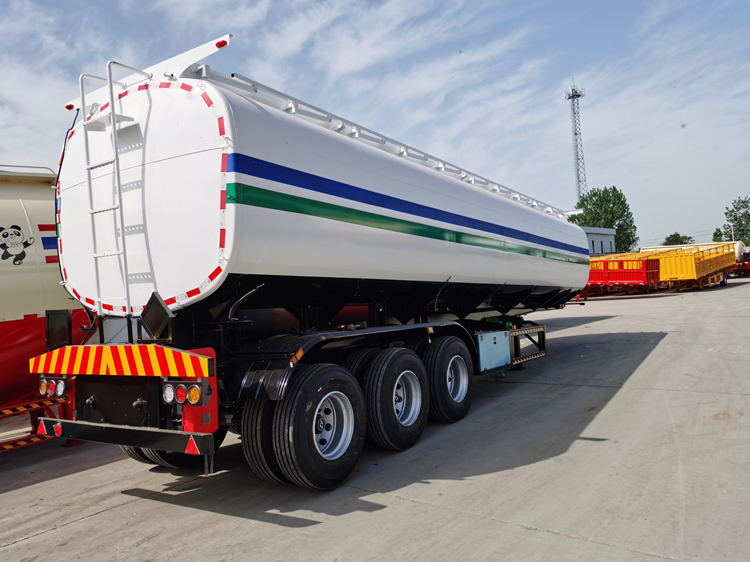

45000 liters fuel tank semi trailer for sale by professional supplier titan vehicle

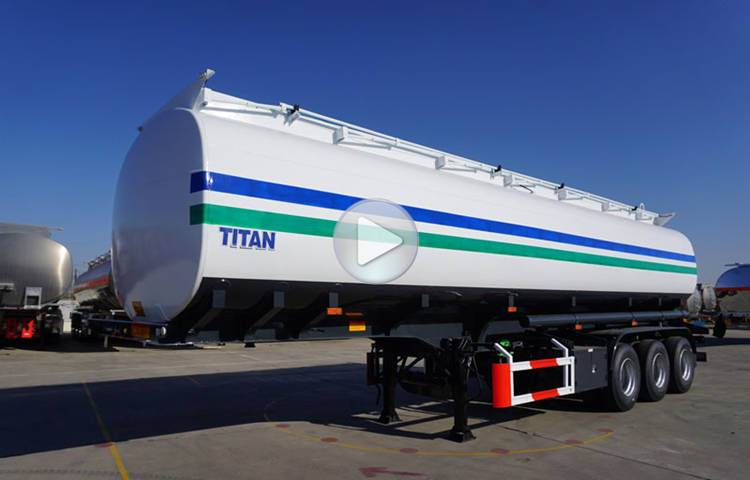

45000 Liters Fuel Tank Semi Trailer Display Video

Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.

TITAN VEHICLE exported more than 1,200 various trailer to all over the world every year.
