1.How to Operate of Remote Control System about the 20/40Ft Side Loader Trailer?
2.Use XCMG MQH37A Side Loader Trailer Correctly and Safely.
3.How to Unloading and Loading Container with 37 Ton Side Loader Trailer.
4.Original Spare Parts of 37/40/45 Ton Hammar Side Loader Trailer.
A leading transport company based in China, TITAN VEHICLE, provides safe, reliable, and professional transportation services for clients across Africa. With a team of experienced drivers and ongoing investments in our vehicle fleet, including a highly versatile side loader trailer for sale, we’re able to provide the full spectrum of transportation services to clients in a broad range of industries and sectors.

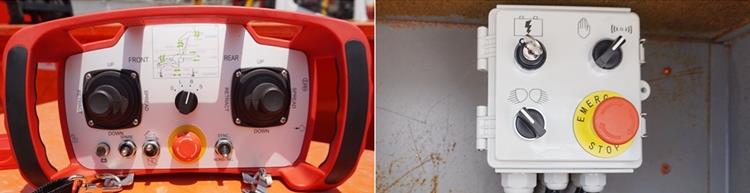

20/40Ft Side Loader Trailer adopt remote control which is made to order for the ambient environment, performance need, operation process and standard, What we used is wireless remote control, its receiver need to fixed installation, The protection grade of the receiver is very high, it can be installed in the open air. but it may prolong the service life of the receiver if installed in the electric control cabinet.
When using the remote control to operate the 37 ton side loader trailer, it may have obstacles in the view of the operator, or some operation beyond the view of the operator, so:
1. Operator should have a clear view of equipment being operated, do not operate if it is difficult to see.
2. Be sure to cut off remote control power when the operator stands far from equipment.
3. Be sure to cut off power when performing installation and maintenance.
4. Do not modificate or remove the safety features of the system.
Side Loader Trailer for Sale-20/40Ft Side Loader Trailer Buying Guide
The operator should be familiar with this XCMG MQH37A Side Loader Trailer, keep it in the best status. If you have any doubt about your machine, please read the manual carefully（Only the person who has been trained can operate the machine.）
1. To ensure safety, check whether XCMG MQH37A side loader trailer is working normally and in accordance with requirements of goods to be lifted before operation. Make sure that the XCMG MQH37A side loader trailer is not overloaded. Refer to the side loader trailer working range to make sure that the unbalance loading of front and rear does not exceed 10% of that at the corresponding working range, and keep container a proper distance of 300mm~500mm from chassis if it is possible.
2. Remember to stand at the same side as goods lifted to ensure the best visibility of the load and adopt natural and normal operation mode.
3. When the load just leaves the ground, please ensure there is no obstacle in the load traveling direction. Do not make the container center beyond the stabilizer's limits, otherwise, it may result in overturn accident. Be sure to keep all wheels in contact with the ground when extending stabilizers. During operation, do not retract stabilizers.
4. The working range of front lift equipment and rear lift equipment should be mostly the same. When a difference occurs, stop one lift equipment and operate another lift equipment, adjust them to enable the front lift equipment is the same work range as the rear lift equipment, then operate them at the same time again.
5. During lifting, make sure the lifter acts smoothly and steady, if the container swing being lifted because of an abrupt operation, stop the operation at once, restart the operation after quieting down.
6. During the operation of loading and unloading, if you have not a clear view in the foreside, stop operation to check, do not operate blindly.
7. When performing inspection and maintenance work, be sure to avoid a collision, and do no-knock the parts fiercely to prevent them from distortion, and keep these parts from dust when working on them, in addition, add and inject grease to prolong their service life.
8. All the moving parts of the XCMG MQH37A side loader trailer are driven by hydraulic, when you find abnormal sound during operation, stop operation at once, restart operation after get rid of faults.
20 Foot Side Loader Trailer for Sale Price
Other Precautions:
1. Operator must obey the operating rules, and keep irrelevant personnel away from the no-go zone.
2. Operator shall not leave operating position when lifting load or crane is Running
3. Make sure to expand the workplace.
4. It is forbidden to operate the side lift under the high-voltage power line.
5. Provide sufficient lighting so that machine movements and loads can be clearly seen.
6. When you perform inspection and maintenance, be sure to stop the engine and set all cylinders to a fully closed state.
XCMG MQH37A side loader trailer can be applicable for handing and transporting containers. Its characters including big lifting capacity, large working range, wide application range, good versatility and strong guarantee ability, meet the demands of lifting containers anywhere. It is widely used for shipping, port, railway, storage and custom, etc. Its characteristics of "rapid, vivid, efficiency, convenience"get more and more understanding and approbations of people.
Drawing of 45 Ton Side Loader Trailer for Sale Price
Unloading Container with 37 Ton Side Loader Trailer
1. Open the engine control box, start the engine, let the engine run at idle speed for about 10s, and then adjust it to 1600 r / min ~ 2600 r / min through the regulator handle;
2. Turn on the power of the remote control and the power supply of the electrical system control box;
3. Extend the inclined stabilizer legs (Note: Do not operate the boom before fully supporting the stabilizer legs);
4. Lock the four locks of the chain to the bottom of the container and rotate the rotary lock to unlock the container;
5. Use the remote control to control the boom to unload the container from the 40ft side loader trailer price without interference. It is best to keep the distance between the semi-trailer and the container from 300mm to 500mm;
6. Remove the sling chain and retract the boom and stabilizer in order;
7. Adjust the engine speed to idle speed and turn off the engine and turn off all power.
Loading and Unloading of Side Loader Trailer
Loading container with 20/40Ft Side Loader Trailer
1. Place the semi-suspension vehicle in an appropriate position close to the container, it is best to maintain a distance of 300mm~500mm between the vehicle and the container;
2. Open the engine control box, start the engine, let the engine run at idle speed for about 10s, and then adjust it to 1600 r/min ~ 2600 r/min through the regulator handle;
3. Turn on the power supply of the remote control and the power supply of the electrical system control box;
4. Adjust and replace the equipment to place the front and rear lifting equipment in the correct position. When the 40-foot container is lifted, the sliding cylinder of the replacement device is fully extended, and when the 20-foot container is lifted, it is fully closed
5. Extend the inclined stabilizer legs. Do not operate the boom before fully supporting the stabilizer legs
6. Open the 20/40ft side loader trailer to a suitable position and lock the four locks of the chain on the bottom of the container
7. Control the boom with a remote control, lift the container and install it on the semi-trailer without interference
8. Rotate the rotary lock to lock the container and retract the boom and stabilizer in sequence
20/40/45Ft Side Loader Truck Trailer for Sale
All components in the side-lift device are carefully designed and selected by the engineering team in China to optimize the performance and integrity of the side-lift device.
In order to ensure the smooth operation of the side lift and extend the service life, TITAN recommends that authorized service providers perform repairs according to the recommended schedule, and only use genuine TITAN spare parts.
TITAN has an inventory of all commonly used parts to ensure that downtime is minimized when problems occur.
1. Control valve
Advanced PVG proportional control valve is very suitable for TITAN machines, and can accurately meet our requirements. Using "proportional control", containers can be loaded onto the forklift in less than five minutes. Each system has a built-in TITAN design and proportional control, which can always smoothly control the 20/40ft side loader trailer, thus ensuring maximum safety and product reliability. The container can be moved gently and moved at different speeds, regardless of the weight, the container can be placed accurately, quickly, easily, and safely.
2. Lifting chain
The key factor of the 37/40/45ton side loader trailer for sale is that the lifting device can safely lift and support a maximum load of 45 tons. The lifting device has excellent wear resistance and resistance and provides maximum safety without affecting the strength.
The TITAN side loader trailer is equipped with a 16mm ICE chain as standard. Although these chains are relatively small and light, they provide a higher lifting capacity, and their working load limit is 60% higher than the 80-level chain.

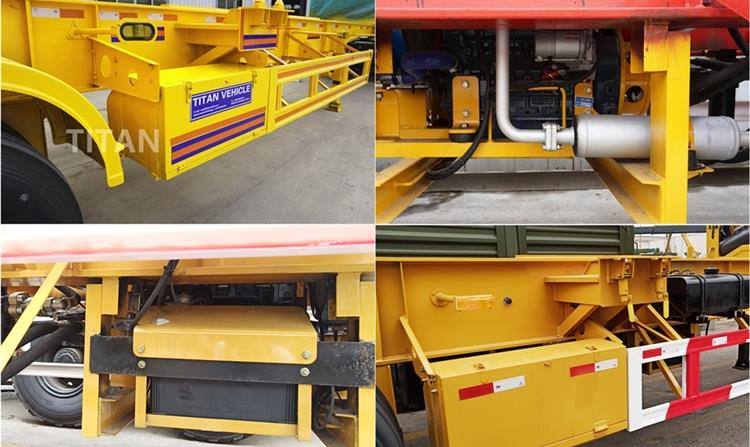

Details of 37/40/45 Ton Side Loader Trailer Manufacturer
3. Hydraulic cylinder
The heavy lifting hydraulic cylinders that TITAN forklifts complete every day are optimized designs specifically designed for TITAN. The design of the cylinder conforms to international standards and uses seals and components provided by internationally recognized suppliers. This ensures that original parts are always available worldwide.
4. Powerpack
The professionally designed independent power pack system with TITAN engine allows the 20/40 foot side loader truck trailer to operate independently. This means that the side-lift forklift can be operated on any truck without any specific hydraulic accessories, and provides greater flexibility for operators with truck fleets.
The independent Kubota engine greatly reduces operating costs. When you compare it with other engines, it is more efficient and runs at a lower cost. The fuel consumption per hour is only 9.5 liters, and the alternative fuel consumption is 11.43 liters per hour, which makes its operating cost lower and better for the environment. TITAN has a full range of engine parts, including filters and seals for maintenance.
5.Remote
TITAN side loader trailer for sale remote control allows the operator to operate the side lift with precision and control. The cable remote control designed and manufactured by TITAN. Alternatively, a radio remote control can be provided.
Radio remote control is a customized solution from TITAN. The remote control is equipped with a separate joystick for each side loader trailer to achieve smooth movement and strictly control the placement of containers. Radio remote control allows the operator to move freely without being restricted by connecting cables
You can learn about different types of sidelifter trailers,including 20ft self loader truck, 20ft sidelifter and 40ft container side loader trailer, as well as the process, testing, packaging and customer feedback, etc.
