1. Different Types of Dump Semi Trailer

2.Operating Instructions of the Hydraulic Lifting System of 60 ton Dump Semi Trailer

3.Precautions for Operating the Hydraulic Lifting System of Heavy Duty Dump Trailers

4. Components of the Hydraulic Lifting System of Hydraulic Dump Semi Trailer

Different Types of Dump Semi Trailer

TITAN 60 ton dump semi trailer can be used in many other fields such as construction, agriculture, etc. We have different shapes and types of dump semi trailer, which are divided into dump semi trailer and rear tipping trailer. skeleton end dump trailer, and flatbed type tipping trailer, Drawbar tipper trailer.

Hydraulic 3 axle dump semi trailer for sale can be customized from 15 tons to 80 tons semi tipper trailers for sale, 80 tons to 120 tons dump semi trailer,  120 tons-180 tons dump semi trailer of different tonnage according to the different cargoes. The common volumes are 30 cubic meters semi tipper trailer, 32 cubic meters semi tipper for sale, 35 cubic meters, 45 cubic meters, 50 cubic meters, 60 cubic meters, 80 cubic meters and so on.

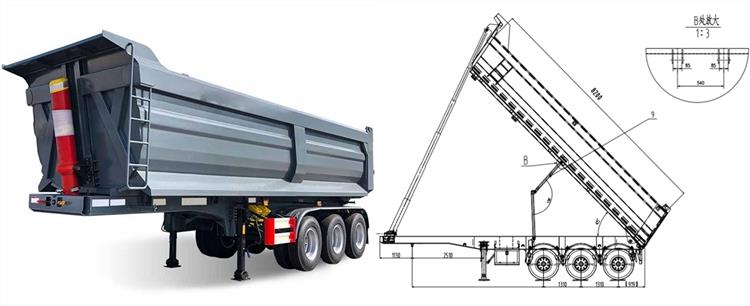

Dump Semi Trailer for Sale - Different Types of 60 Ton Dump Semi Trailer

Operating Instructions of the Hydraulic Lifting System of 60 Ton Dump Semi Trailer

Titan lifting 20/28ft adjustable custom container chassis trailer hydraulic system lifting operation sequence:

Open the tarpaulin or box lid on the trailer——Open the rear door lock——Press the clutch with the transmission in neutral and wait 5 seconds——Hanging low gear (below 4 gears)——Place the handle of the air control valve in the raised position——The dump trailer starts to lift after releasing the clutch, The engine throttle can be properly depressed but it must be controlled within 1500 rpm-when the cylinder reaches the maximum stroke or the limit valve is activated, the air control valve handle is in the stop position.

Dump semi trailer descending operation sequence: Step on the clutch and wait 5 seconds——Adjust PTO——Adjust transmission gear——Release the clutch——Turn the handle of the air control valve slowly from the stop position to the down position——When you fully lower the car body, wait for 30 seconds and put the handle of the air control valve in the stop position.

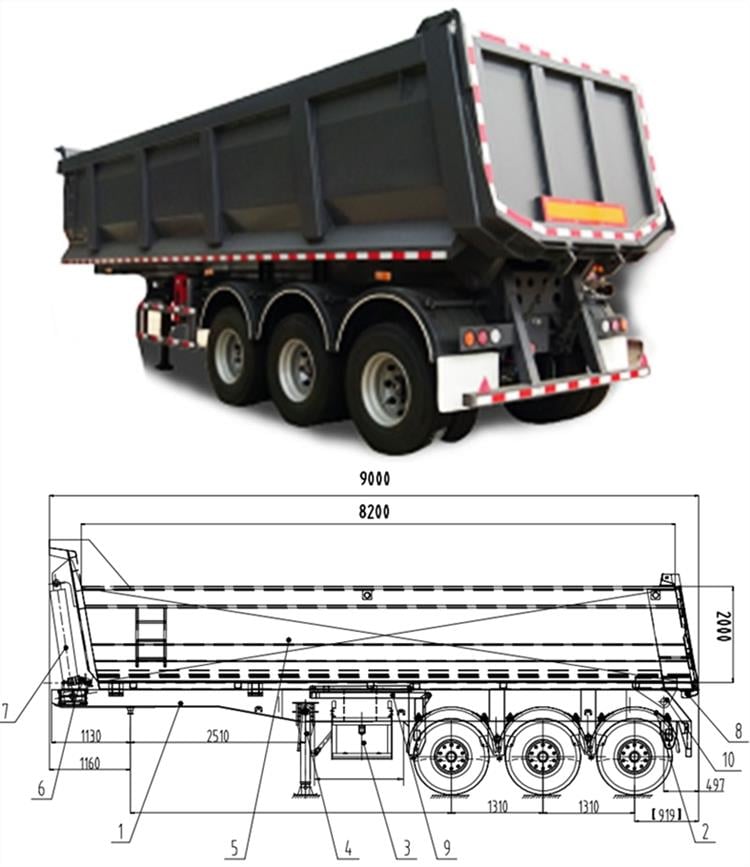

40 Ton Dump Semi Trailer for Sale Price

Precautions for Operating the Hydraulic Lifting System of Heavy Duty Dump Trailers

1. The hydraulic tank of the TITAN 3 axle dump semi trailer for sale auction is a special lifting cylinder. Don’t use the cylinder as a stable support for the dump trailer body.

2. Do not leave the cylinder exposed to the air for more than 2 hours (more than 30 minutes in humid air) in a lifted state, otherwise, it will cause oxidation and rust of the cylinder;

3. It is forbidden to disassemble and adjust the relief valve on the lift valve, otherwise the hydraulic system will lose its safety protection function and cause an accident.

4. When the chassis tipper for sale loads cargo, we should ensure that the front and back and left and right loading are uniform. If you have too much cargo in front, it can overload the hydraulic system. Too much cargo is loaded behind the 20/40 feet Container Tipper Semi Trailer, which will cause the semi end dump trailers for sale to tip over when unloading, and the left and right partial load will easily cause the cylinder to tip over.

5. When unloading, please make sure that the ground around the lightweight tip trailer is solid and flat, keep the triple axle dump trailer stable, and ensure that the main dump truck and the Scrap Tipper Trailer are in a straight line;

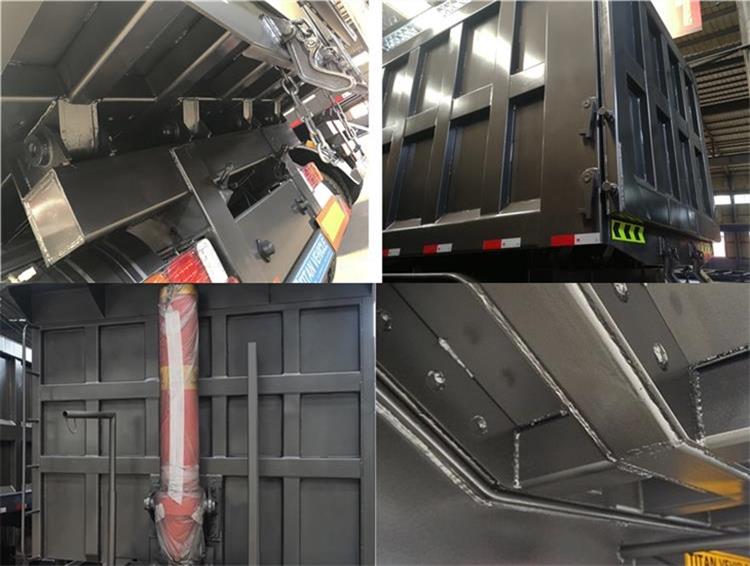

Details of Tri Axle Dump Semi Trailer for Sale

How do you dump a dump semi trailer load?

1. Before unloading, make sure that there are no people on both sides and rear of the 60 ton dump semi truck trailer for sale, and check whether the dump truck trailer for sale lifting limit device is intact.

2. After the semi dump trailers for sale lifting operation is completed, before driving, be sure to turn off the semi dump trailers power take-off switch to separate the power take-off from the gearbox and stop the oil pump; then put the manual operation valve at the mid-stop position to avoid automatic lifting during driving Danger.

3. The tipper trailer for sale can only be driven after the carriage is reset to the upper wing surface of the sub-frame. Because the semi dump trailers for sale carriage is in the lifted state, it is very likely to cause malfunctions and accidents.

4. The goods in the semi dump trailers for sale carriage are evenly distributed, and do not exercise or dump with serious partial load.

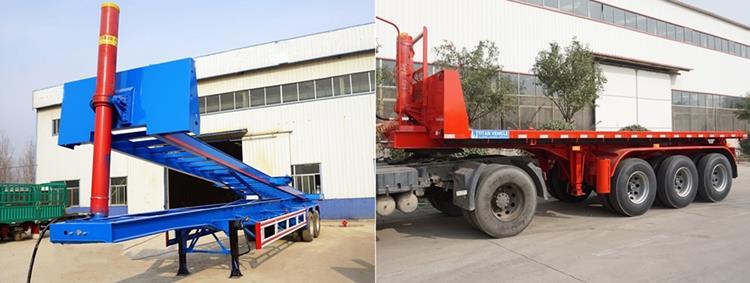

Different Types of Dump Semi Trailer - Container Tipper Chassis/Flatbed Tipper Trailer

Components of the Hydraulic Lifting System of Hydraulic Dump Semi Trailer

The rear dump semi trailer train is mainly composed of a tractor and a semi-trailer. The tractor is connected by a saddle and a semi-trailer to form a semi-trailer train. The rear dump trailer hydraulic lift system is mainly composed of power take-off (transmission), hydraulic pump, lift valve, pneumatic control valve, limit valve, hydraulic cylinder, hydraulic oil tank, high (low) pressure oil pipe and so on.

The high-pressure oil output by the gear pump enters the poppet valve through the high-pressure oil pipe.

The lift valve sends high-pressure oil to the oil cylinder or discharges it into the hydraulic oil tank under the control of the air control valve, thereby achieving the functions of lifting, stopping and lowering the end dump trailer hydraulic oil cylinder.

You can learn about different types of semi tipper trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
