1. Different types of tri axle trailer for sale
2. How much weight can a triple axle trailer hold?
3. 3 kinds of trailer suspension - tri axle trailer for sale
4. How to load a tri axle flatbed trailer?

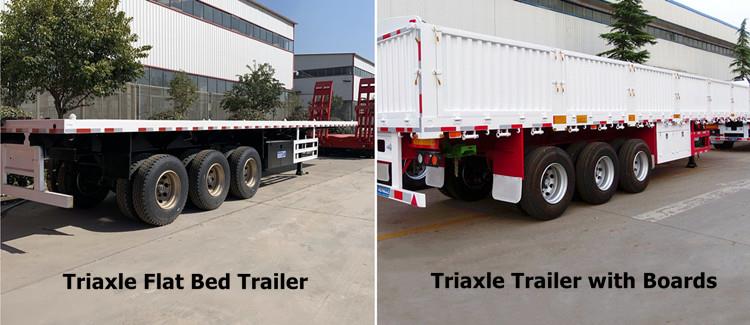

Common tri axle trailer for sale:

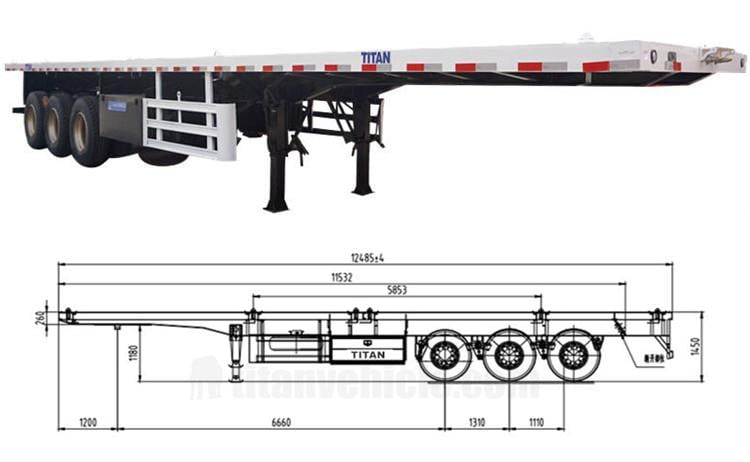

TITAN tri axle flatbed trailer is a kind of trailer whose design is suitably made to carry bulk cargo and containers between shipping facilities and terminals. By simple definition, this is a long flat platform of either 20ft, 40ft, 48ft or 53ft length. Flatbed for sale is usually used to transport 20ft or 40ft containers, they are mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport.
Triaxle trailer with boards:
The triaxle trailer with boards also called side wall trailer. This side wall cargo trailer use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry. Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo. The tri axle trailer with side boards can be added with a container turn lock to transport the container.

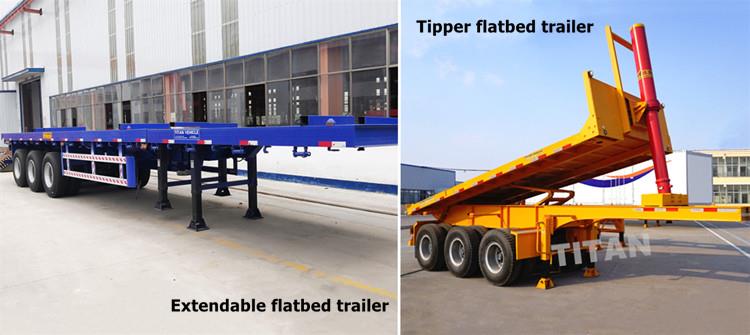

Extendable tri axle flatbed trailer:
Extendable trailer, you can freely adjust the length of the semi-trailer according to the length of the cargo, so as to meet the transportation needs of different goods. Custom length extendable flatbed trailer.
With the rapid development of the global transportation industry, semi-trailers have also begun to diversify into a variety of categories. Ordinary semi-trailers have limited capabilities, but special trailers also have single functions and low utilization rates.
Therefore, the bosses of transportation companies increasingly need a telescopic trailer that can load very long cargoes, such as long cement pipes, steel pipes, wood, wind blades for power generation, etc.
Tipper flatbed trailer:
The striking feature with the tipper flatbed trailer is a mechanism that makes it easy to unload the container.There are apparatus added as modifications to the conventional tri axle trailer models further simplifying the process of offloading cargo from the container.
The hydraulic system mounted on the upper platform facilitates the offloading process causing the container to tilt upwards to offload cargo. Tipper flatbed trailer is definitely one of the safest means of offloading shipping containers. The tipper flatbed trailer comes with a hydraulic lifting cylinder that contracts longitudinally to facilitate loading and on the other hand, they extend in an outward manner to enhance the offloading process.
TITAN can customize the load for you according to your needs, and different configurations have different prices.
Usually the load of tri axle trailer for sale is 50-80 tons.
TITAN tri axle trailer for sale adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life
TITAN tri axle flatbed trailer uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable. The whole complete main beam can improve the loading capacity by 20%

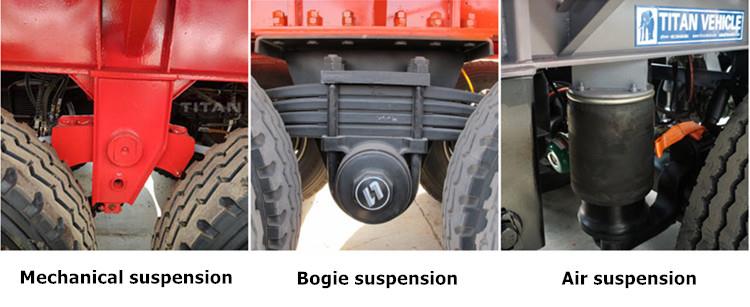

Mechanical suspension: The mechanical suspension is our common leaf spring. It is mainly composed of leaf spring, suspension support (commonly known as lifting ear), connecting rod, U-bolt and other parts. The longitudinal force of the body falls directly on an axle.It is reliable, and easy to maintain.
Bogie suspension: The 12m tri axle trailer for sale near me bogie suspension is to reduce the common leaf spring front and rear brackets to a single bracket connected to the car body. Compared with ordinary leaf spring suspension, the bearing capacity of bogie suspension is bigger.
Air suspension: The most obvious feature of an air suspension is its airbag-type air spring. The weight of the air spring itself is relatively light, the air medium friction in the airbag is small, there is almost no noise during operation, and its life is 2-3 times that of the leaf spring. Air suspension for semi-trailers is mostly in high-end fields such as precision instrument transportation and hazardous chemical transportation.
The size of the tri axle flatbed trailer loading area is determined according to the standard container size. A twist lock device for fixing the container is provided at positions corresponding to the four corners of the bottom of the container.
Before the tri axle trailer are loaded into the container, the used turn lock head should be completely overlapped with the lock seat and fixed. Then the container is correctly placed on the tri axle trailer for sale, and then the turn lock handle is turned lock the container vertically with the lock head and the lock seat. Before unloading the container, the turn lock should be turned to the position where the lock head overlaps with the lock seat and fixed, and the container can be removed only after it is confirmed that the container is not locked.
You can download video, you can learn about different types of flatbed semi trailer, such as 2 axle flatbed semi trailer,3 axle container semi trailer,4 axle 40ft flatbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.
Flatbed Semi Trailers Video
This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
