Fuel tanker trailer with bogie suspension for sale in Senegal

TITAN VEHICLE | 2020-08-03


Our Senegal customers mainly transport liquid and oil. And he busniess a small oil company. He found us though alibaba that tell us he want to 3 axle fuel tanker trailer with 50000L.

The customers used semi trailer before. So very familiar with fuel tanker trailer. Fuel tanker trailer are mainly used for transport liquid and oil. Of course, it is the quality of TITAN that attracts him. All TITAN Oil tanker trailers will undergo pressure testing and metal flaw detection after the end of production to ensure that the tanks are well sealed.



Customer choose the airbag suspension. Airbag suspension is a high-end configuration popular in developed countries and regions and belongs to more advanced products. In recent years, as customers have increasingly higher requirements for the stability, safety and economy of vehicles, this has led to the gradual popularization of air suspension.

So what are the advantages of airbag suspension?

1. Light weight. The biggest advantage of air suspension is its light weight, which is much lighter than traditional leaf spring suspension.

2. The fuel tank trailer runs smoothly with good shock absorption performance. Compared with lightweight vehicles, vehicles with air suspension are more stable. The height of the air spring can be adjusted automatically according to the conditions of the road, reducing vibration, which is beneficial to protecting the safety of the cargo.

3. It can be lifted. Lifting can be reflected in two aspects. One is that the axle can be lifted through air suspension, which reduces tire wear and saves fuel. The next is through the manual height valve in the air suspension system, the height of the vehicle loading platform can be adjusted within a certain range, convenient for loading and unloading fuel.



Other advantage of fuel tanker trailer for sale in Senegal:

1. The tires used by fuel tanker trailer have been in cooperation with the company for more than 12 years. The quality is stable, 200,000 kilometers can be used in China, and there is no problem after two years of use.

2. Fuel tanker trailer tank body uses the most advanced welding technology. Through single-sided welding and double-sided forming welding, the welding seam is stronger and smoother, there is no welding defect. The tank can be used for more than ten years . The tank body uses longitudinal welding technology to reduce the number of tank body welds and increase the overall strength of the tank body by more than 20%.

3. The tank body has sufficient strength. There are anti-shock plates inside the diesel tank trailer. There are manholes and liquid discharge valves in the tank accessories. One of TITAN fuel tanker trailer can transport two kind of oil, it can be divided into tanks. Common tank material is carbon steel Q345, thickness is 4mm-6mm national standard steel plate.

4. TITAN tank cover uses the European standard explosion-proof cover with a built-in breathing valve.

5. Before painting, the whole vehicle is sprayed with sand for many times to remove rust, spray anti-rust paint, spray primer, spray top paint, and spray three layers of paint. The paint can be used for five years.

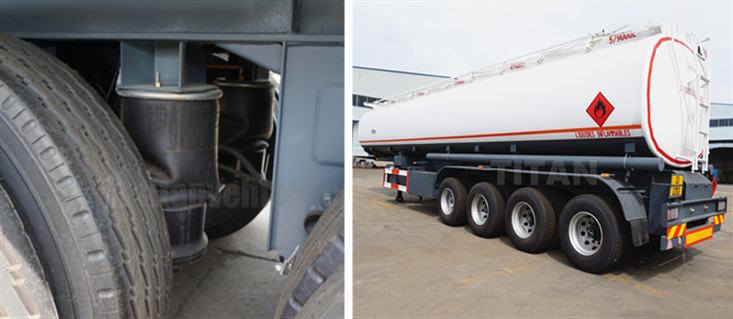

TITAN 3 axle fuel tanker trailer with airbag suspension for sale in Senegal


Common malfunctions of fuel tanker trailer airbag suspension:

1. The airbag is inflated but the airbag is wrinkled

The reasons for this may be:

1. When the fuel tanker trailer is being transported and hoisted, the airbag is stretched out a lot, and it is not reset properly, which causes the airbag to fold.

2. When the vehicle enters or exits the maintenance workshop or on a large slope, it may also cause individual airbags to be stretched excessively, causing airbag wrinkles.

On-site processing method:

Disconnect the rubber connector under the vertical rod of the horizontal height valve to the axle, slowly lift the rod, and after all the airbags are fully inflated, slowly lower the rod to the original position. normal status.

In addition, if such a failure often occurs during driving, it is necessary to consider adding a limit device between the axle and the frame.

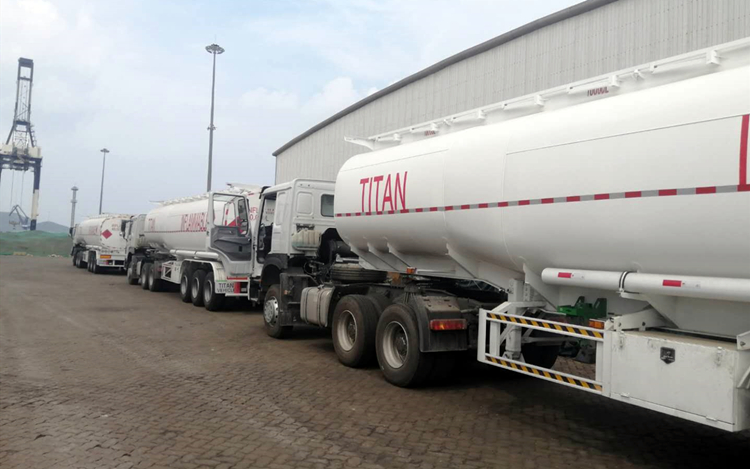

Fuel tanker trailers are ready for shipment at the port


2. All airbags are airless

This situation is relatively simple to check. As long as we understand the air suspension structure, where can we start.

The air suspension air source is connected by the braking system, and is stored in a special air cylinder through a pressure protection valve. Work through the filter to the core of the air suspension - the level valve, and then to the left and right airbags.

The reasons for this may be:

1. There is no air or low pressure for the air suspension special air cylinder --- in order to ensure that the braking system has sufficient pressure, when the trailer air pressure is less than 6 kg, the pressure protection valve will temporarily suspend air supply to the air suspension air cylinder;

2. The air pipe is blocked or discounted, but not air;

3. The connecting rod of the level valve falls off;

4. The level valve is damaged (this reason rarely occurs).


Through the video below, you can learn about different types of fuel tanker semi trailers (like 3 axle fuel tanker, 4 axle storage tanker trailer, stainless steel tanker trailer, acid tanker trailer, fuel tanker with flatbed trailer, fuel tank Full trailer)

And the process, testing, packaging and customer feedback, etc.
