1. How to choose a right flat bed trailer

2. How much is trailer truck price in Nigeria

3. Tri axle trailer weight/length

4. Triaxle flat bed painting process

5. Triaxle flat bed truck trailer price & video



1. How to choose a right flat bed trailer

The different types of tri axle flat bed trailers are designed for use in different applications. Therefore, it is important to assess your needs before making a choice of the type of flatbed trailer you need. Here are key factors to consider:

Size: The Flat bed trailer is designed to carry different cargoes and containers: a flatbed for a 20ft container and another for a 40ft. If you need a triaxle flat bed for carrying an oversize load, then an extendable flatbed trailer will be the best choice to go for. The choice based on size is usually made putting these requirements into consideration.

Load Capacity: The load capacity can also determine the type of trailer that you will choose based on your needs. It can range from 10 tons – 80 tons. Again, this should be based on different requirements as defined by the local laws and regulations on such matters. The various tri axle flat bed truck trailers take a considerable size and weight of cargo. However, all are not designed to carry the same amount of weight. On applications where weight considerations are to be made, the 2 axles or 3 axles container chassis trailer can really help. Heavy cargo can comfortably and securely be carried on these strong chassis made of high-yield materials.

Axles and Tires: The different axle capacity is based on transportation needs and requirements. However, every choice based on the axle configuration should also be in line with the local transportation laws and regulations. The most common configuration is triaxle flat bed trailer, it comes with 12 tires.

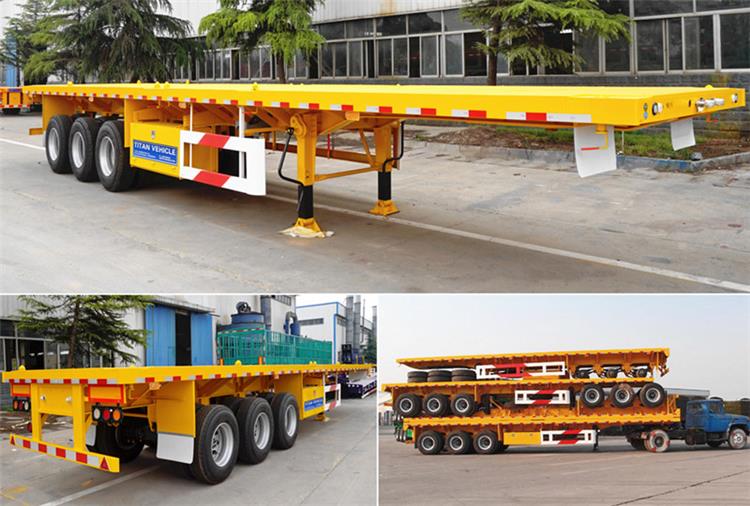

Triaxle Flat Bed for Sale in Nigeria



2. How much is trailer truck price in Nigeria

TITAN Triaxle flat bed trailer advantage

Advanced TITAN Full-automatic Submerged arc welding process

1. Formed by one time.

2. More sturdy, also bending and bump resistance.

3. Improving the loading capacity and the service life by 50%

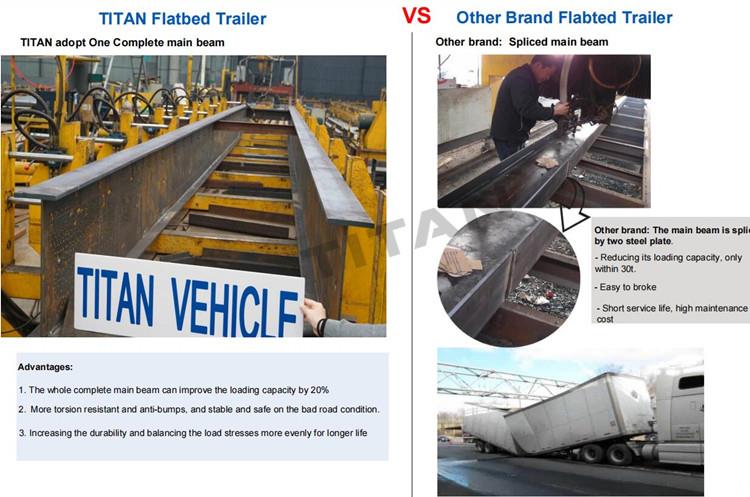

TITAN adopt One Complete main beam

1. The whole complete main beam can improve the loading capacity by 20%

2. More torsion resistant and anti-bumps, and stable and safe on the bad road condition.

3. Increasing the durability and balancing the load stresses more evenly for longer life

Other Brand Triaxle Flat Bed Trailer

Poor welding process Machine or manual welding

1. Others use old machine with manual control

2. Easy to bend and dislocate.

3. Greatly reducing the load capacity by 30% and can't fit the bad road condition

The main beam is spliced by two steel plate.

1. Reducing its loading capacity, only within 30t.

2. Easy to broke

3. Short service life, high maintenance cost



Tri axle trailer weight/length

 Tare Weight: About 7.1T

Dimension(mm): 12450x2490x1575mm

Loading capacity(ton): ≤45T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

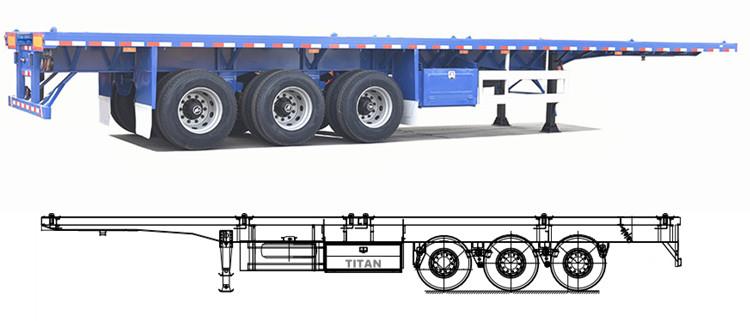

Tri axle flat bed truck trailer drawing

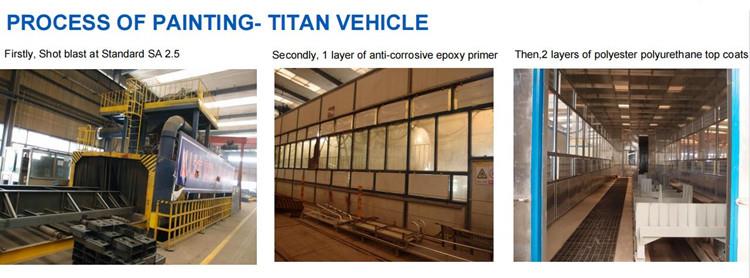

Triaxle flat bed painting process

Firstly, Shot blast at Standard SA 2.5

Secondly, 1 layer of anti-corrosive epoxy primer

Then, 2 layers of polyester polyurethane top coats

Paint Finished

Advantage:

1. Polyurethane Paint on trailers for durability & longevity

2. It’ll be against corrosive elements and chemicals, lowering maintenance costs.

3. The service of life'll be improved by 10%



You can download video, you can learn about different types of flatbed semi trailer, such as 2 axle flatbed semi trailer,3 axle container semi trailer,4 axle 40ft flatbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.

Flatbed Semi Trailers Video



This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
