1. The design of the lift cylinder and the knuckle legs in a straight line provides multiple advantages for the TITAN side lifter. When the knuckle legs are in the working position, the momentum arm from the lift cylinder is doubled; this keeps the cylinder diameter small. By integrating the crane and outriggers online, the side loader is only slightly longer than the standard container trailer. When the crane outrigger is folded to the transport position, it takes up less space than the cross-section of the container.
Due to this configuration, the momentum from the lifting cylinder is directly transmitted from the knuckle leg down to the ground. Therefore, the stress in the crane base and chassis is minimized, and there is no twist between the main boom and the outrigger.
2. Due to design reasons, the TITAN side lifter has a very low tare weight.
The integrated security of the TITAN 20/40 ft side lifter makes handling easy and worry-free. The unique geometry in the design prevents accidental placement of the container in an unstable position. This means you don’t have to deal with additional cantilever brackets at the rear of the side loader, so you can reduce the number of maintenance parts. cylinder integrated into the arm gear.
3. The welding structure of the 40 ton side lifter is made of ultra-high-strength steel, which can ensure the highest possible strength while still reducing the load to increase the load. Each side lifter includes the main boom, which has a 2-step telescopic boom and is operated by a double-acting telescopic
4. All cylinders on the TITAN side lifter are equipped with sturdy low-friction bearings and have special lubrication chambers to provide excellent lubrication, low maintenance cost and long life. All cylinders on the Titan side lifter are double-acting, with honing / roller polishing cylinders and hard chrome-plated and polished cylinder rods.
5. The TITAN side lifter is equipped with a momentum limiting valve. The directional control valve for smooth operation is provided by a heavy-duty, high-pressure, fixed displacement piston pump powered by the power output shaft.

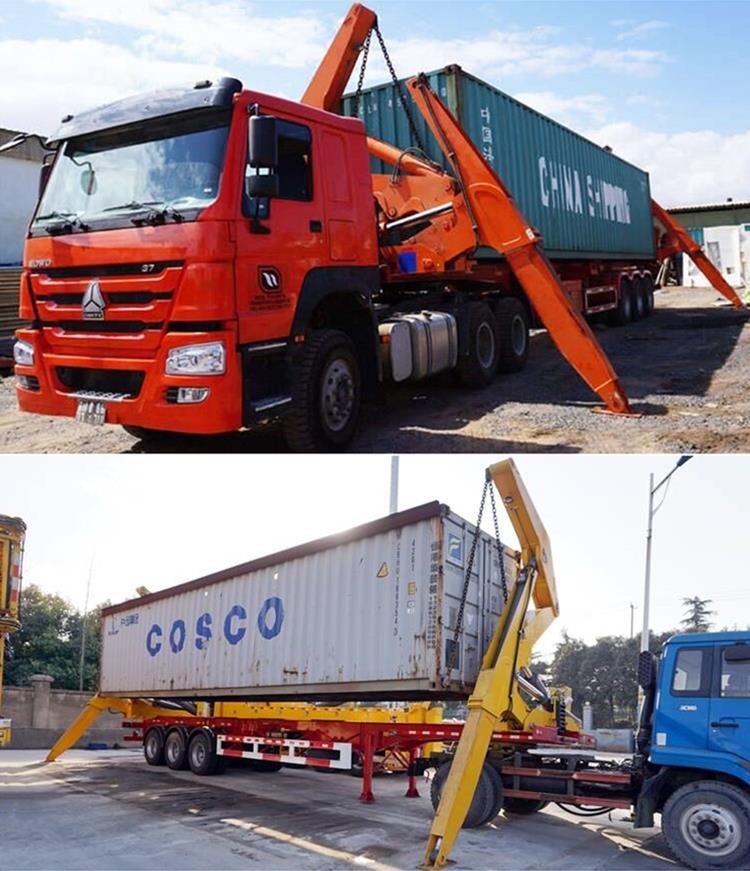

Hammar Side Lifter for Sale Price | How the 37 Ton Side Lifter is Transported?
For many people, It is very important for you to maintain the TITAN 37 ton side lifter. It can better extend the service life and maintain good working accuracy and performance. Today very glad to share with you many ways to check and maintain it.
1.Hydraulic system pressure is too high or too low
The oil pump is damaged, leak oil, check or replace the oil pump. Multichannel change valve is damaged, remove faults. The oil level in the tank is too low, add oil to the proper position, suction tube leak air, check or replace the suction tube. The oil filter is blocked off, clean or replace the filter core. Oil is used for a long time, oil viscosity is too low, replace the hydraulic oil.
2. Cylinder leak oil
Terminal cover seals wore/piston seals wore, Replace seals
3. Cylinder is retracted automatically with the load raised
Load-holding valve gets a failure, clean or replaces valve lock. Cylinder piston seals to be damaged, replace seals
4. Abnormal warm-up
Inhale air, oil seal is bad, check and replace oil seals. Oil level in the tank is too low, add oil to the proper position. Oil pump is damaged, leak oil, check or replace the oil pump. System is stooped, check and remove the stopper
5. Valve core is not made recovery
Has dirt between the valve core and body, clean valve lever and body. Recovery spring to be damaged, replace spring. Valve lever is operated unsmoothly, check operation system. Coupling bolts are too tight, tighten the connection bolt

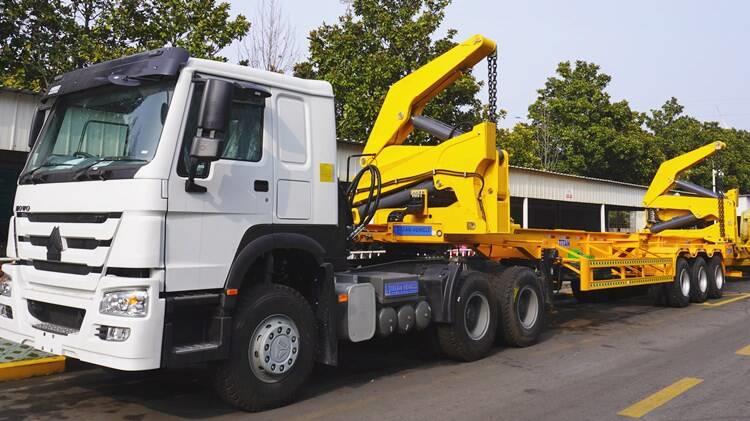

37 Ton Side Lifter Trailer for Sale Manufacturer
6. Pump not output oil stop running immediately, otherwise, the pump may be damaged or flow is not enough
Oil pump doesn’t work, check or replace engine connected disc, suction tube or oil filter is blocked off, remove the jamming, oil viscosity is too high, replace the hydraulic oil, the oil level in the tank is too low, add oil to the proper position, oil pump inside to be damaged, check or replace parts, internal seals to be damaged, replace seals
7.Outer leak
The interface between valves, o ring to be damaged, Replace o ring
8.System pressure is too low or no pressure
Regulating bolt get loose, adjust pressure over again, print or taper valve doesn’t work, check and clean pressure regulated valve, friction between valve lever and body, check and repair or replace the multichannel valve
9.Vibrations in the cylinder
Some air in the hydraulic system, 1 exhaust the air by movement, worn cylinder seals, 2 replace the cylinder seals
10.Slowing down of all movements, even without load on the hook
Crushed or dented suction hose, 1 replace the suction hose, air suction from oil tube, 2 tightness the joint of suction hose
11.Sidelifter does not lift the rated capacity load.
Inefficient pump, replace the pump, wrong relief valve settings, adjust the valve, worn hydraulic pump seals, replace the pump seals
12.Noise and fluctuating of pressure are big
Suction hose or suction net are stopped, remove the stopper, the glutinosity of oil is high, replace the hydraulic oil, bad seal for suction port and the air is sucked, replace seals, oil has air, get rid of the air, the parts in the pump were worn, replace or repair parts, oil-polluted, replace oil, clean oil tank
Side Lifter Trailer for Sale Price Manufacturer
1.Minimal labor costs
Side lifter container trailer transport trucks are uniquely suitable for container transport and delivery because of their in-built capabilities—their trailers are fitted with integrated cranes and outriggers that allow them to safely load or unload a cargo container in a matter of minutes. This procedure is largely automated and requires very little in the way of human manpower or oversight. Consequently, choosing side loader transportation can dramatically cut down on labor costs that would otherwise go towards paying workers to manually unload your delivered containers. Side lifter is very efficient in moving cargo because their vehicles are pre-equipped with all the necessary paraphernalia needed to move them. These include cranes and triggers installed in the containers which make the work quite easy. With a significant magnitude of automation, the need for manual labor visibly depreciates.
2.Quick turnaround
As previously mentioned, the efficient automation of a Side lifter means they can both load and unload containers very swiftly. This makes them an ideal choice if you require containers to be delivered promptly, and reduces downtime experienced due to lengthy loading and unloading procedures.
3.Easy unloading in tight spaces
Besides being more difficult to load than side lifter, tilt-tray trailers also require significantly more space to safely unload their containers, driving forward while gently depositing the container by tilting the loading bed it rests on. Ease And Efficiency Even In Cramped Sites, the usual disposal of freight seldom requires the need for tilt trays where the cargo is loaded and then later unloaded. Side lifter is very comfortable as they could be manipulated even in the most constricted spaces without the additional need for the same while unloading. Their adjustability is a big factor.

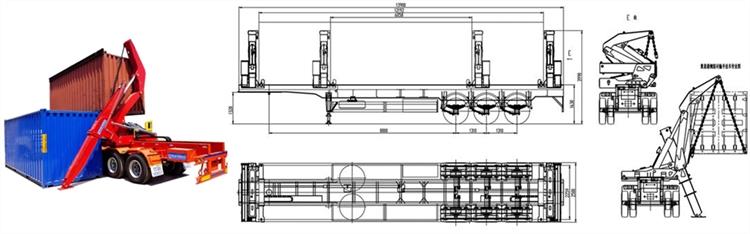

Drawing of 45 Ton Side Lifter Trailer
By contrast, a Side lifter can deposit a container in much more compact locations, as it deposits its container right next to the trailer and does not need to move anywhere during the unloading process. This makes side lifter particularly valuable if you are delivering containers to smaller locations in urban centers.
4. Fewer Expenses:
Hammar's side lifter transport service is very efficient in moving cargo because their vehicles are pre-equipped with all the necessary paraphernalia needed to move them. These include cranes and triggers installed in the containers which make the work quite easy. With a significant magnitude of automation, the need for manual labor visibly depreciates. Thus, opting for side loader transport facilities
5. Agility:
Hammer Side lifter employs swift and dainty movements which makes the work easy. Thus, the package can be turned around pretty efficiently with the use of these novel vehicles. If one needs their package to be delivered with no time lost, this is the option to look out for.
