Tri Axle Flat Deck Trailer for Sale in Zimbabwe Harare

TITAN Flatbed Trailer | 2021-04-07



Recognized by old Zimbabwe customers. In January 2020, the customer ordered a tri axle flat deck trailer. And This was his first time to use semi trailer for his business.

After the customer received and used the semi-trailer, the customer gave us feedback that they were very satisfied with the tri axle flat deck trailer, saying that there will be a batch of orders in the second half of the year. Thank you very much for your trust and affirmation of TITAN.

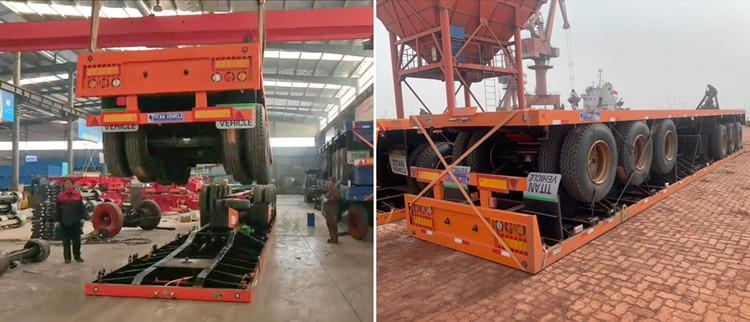

Many local customers have seen the customer’s tri axle flat deck trailer. Said that he helped purchase at TITAN, thinking that many local customers did not understand the import process. In the next year or so, customers gradually became TITAN's agents. Below is the picture of the package and delivery.

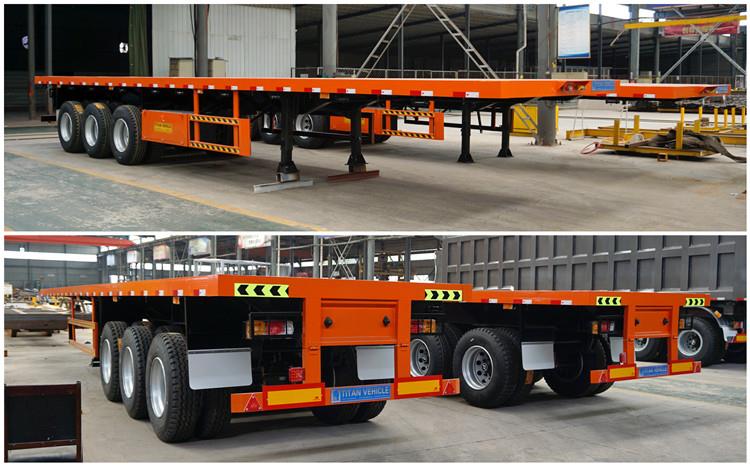

Tri Axle Flat Deck Trailer for Sale in Zimbabwe Harare

Tri Axle Flat Deck Trailer for Sale in Zimbabwe Harare



Main Parts of Tri Axle Flat Deck Trailer

1. Truck Trailer Kingpin of tri axle flat deck trailer

The 90 # traction pin represents the diameter of the traction pin is 90mm, and the material is mainly chromium alloy. The tri axle flat deck trailer for sale near me and the tractor are all connected by it. It is connected to the traction seat of the main vehicle and also bears all the traction. It is an important component.

At present, the traction pins on the market are mainly divided into 4 types, assembly 50, assembly 90, welding 50, welding 90, users should choose according to different models and actual use.

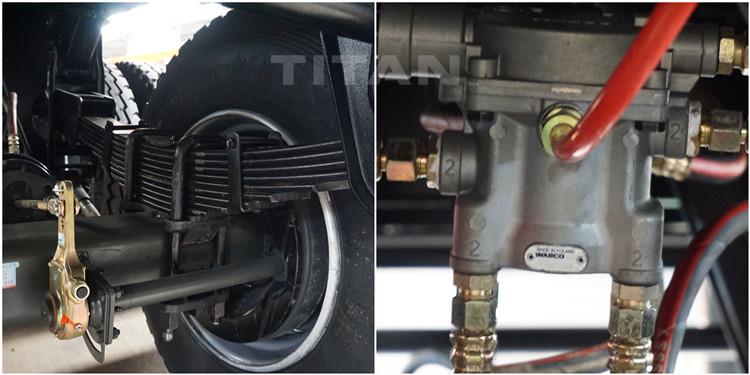

2. Suspension of tri axle flat deck trailer

Steel plate suspension is our common leaf spring, its full name is series-connected leaf spring balance suspension. It is mainly composed of leaf springs, suspension bearings (commonly known as lifting lugs), connecting rods, U-bolts and other parts. The longitudinal force of the car body falls directly on an axle. The biggest advantage of this kind of suspension is low price, good reliability and easy maintenance. At present, more than 80% of ordinary tri axle flat deck trailer in China use leaf spring balanced suspension.

The most obvious feature of 40ft trailer for sale air suspension is its airbag-type air spring. The40ft trailer for sale air spring itself is relatively light in weight, the friction of the air medium in the airbag is small, there is almost no noise during operation, and its life is 2-3 times that of leaf springs. However, when an air spring is used, a rod system that can transmit various forces and moments other than the vertical force must be provided, so the suspension structure is complicated; in addition, the air spring has strict requirements for sealing, and its cost is also high.



Tri Axle Flat Deck Trailer for Sale in Zimbabwe Harare

Tri Axle Flat Deck Trailer for Sale in Zimbabwe Harare



3. Tri axle flat deck trailer support device

Commonly known as outrigger. Using the principle of "standing timber jacking", it is located at the front end of the tri axle flat deck trailer frame for use after the tri axle flat deck trailer is separated from the tractor. Classification of outriggers: Single-acting outriggers are operated separately on both sides, there are two cranks, and each gear has a car gearbox.

Linked outriggers are made from both sides while operating. There is only one crank, which is composed of one gearbox and one without.

The main components of the outrigger are two-speed gearbox, support sleeve, support rod, drive screw, and the support plate. The structure is very simple and the function is very important.

4. Braking system

Brake air chambers are round metal containers, located at each wheel, where compressed air is converted into mechanical force to apply the brakes and stop the vehicle.

Brake valve is used to control the braking of trucks or tri axle flat deck trailer. It is suitable for flatbed tri axle trailer with dual-line brake system, and parking or emergency brakes are air-braking brakes. It has the function of automatically causing the 20 ft flatbed trailer brake when the control pipe connection of the trailer brake system is broken or leaking.



Tri Axle Flat Deck Trailer for Sale in Zimbabwe Harare

Tri Axle Flat Deck Trailer for Sale Details



Through this video below, you can learn about different types of flatbed semi trailer,such as 2 axle,3 axle,4 axle, flatbed etc.

As well as the process, testing, packaging and customer feedback, etc.

flatbed trailers video



If you want more information about our flatbed semi trailer, please click "Flatbed Semi Trailer"

And you can also look at other resources and products on our website.
