3 Axle Curtain Side Trailer for Sale In Panama

Today, 3 Axle curtain side trailers are packed and ready to be sent to Panama. The customer found us on Google and saw a lot of positive feedback from customers, so he asked TITAN for details about the curtain side trailer. Because customers are in a hurry to use, he negotiated with the sales manager Jacky for 3 days, and the customer paid the deposit immediately.

The customer requested that all 3 axle curtain side trailers adopt air suspension, which is obviously a wise decision.

Usually, semi-trailer manufacturers use mechanical suspension systems. But the air suspension is better. On the one hand, the air suspension can improve the shock absorption capacity of the 3 axle curtain side trailer, thus protecting your cargo as well as your driving experience.

On the other hand, this shock-absorbing ability can reduce the wear and tear of the curtainside trailer bed and beams, thereby ensuring the stability of the entire structure, and ultimately prolonging the service life by more than 7 years.

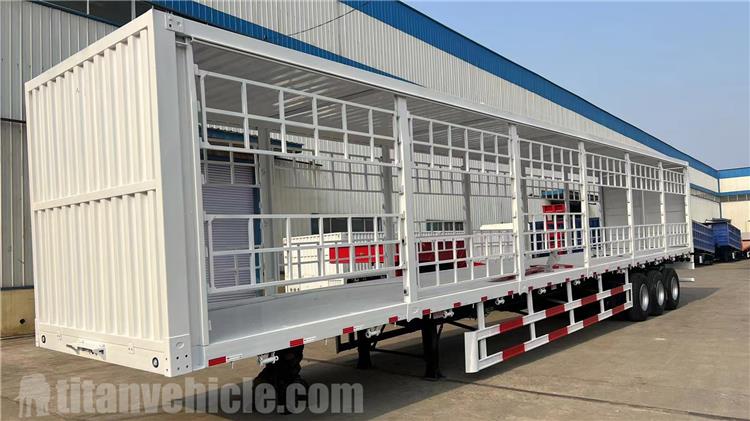

3 Axle Curtain Side Trailer for Sale In Panama

From the structural analysis, there is no essential difference between the chassis structure of 3 Axle curtain side trailers and flatbed semi trailer, side wall semi trailer and fence semi trailer.

That is to say, the carrying capacity of the curtainside trailer for sale is no different from the structural carrying capacity of the fence cargo trailer with the same number of axles and dimensions. The main difference is that the top of the 3 axle curtain side trailer is different from that of the fence cargo trailer.

The upper structure of the 3 axle curtain side trailer consists of the front wall, the rear door end, the left and right top side beams (generally aluminum alloy sections), and the left and right sides of the 3 axle curtain side trailer are respectively equipped with sliding columns, and there are pulleys on the sliding columns that can be placed in the side beams to swipe.

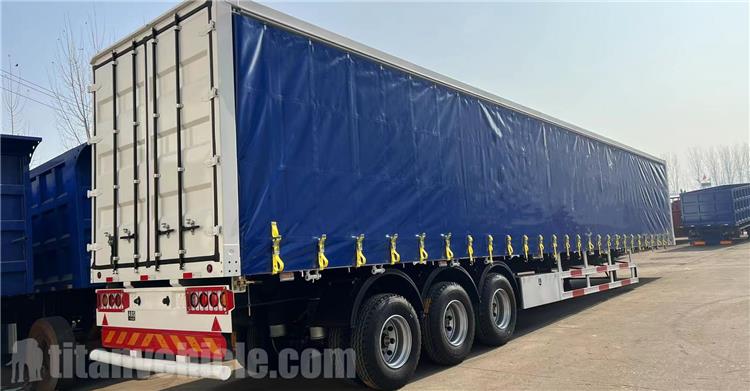

3 Axle Curtain Side Trailer for Sale In Panama

Structure of Curtainside Trailer for Sale

When the cargo is installed, slide the sliding uprights into place and lock.

The front and rear end walls of the curtain trailer, the top side beams, the side sliding columns, and the cargo railings between the sliding columns and between the sliding columns and the front and rear end walls constitute the upper frame structure of the curtain side trailer. After the sliding roof is closed, it also participates in the entire structure of the upper body is stressed.

After the side curtain is closed, it is tensioned front and rear by the tensioner, so that the side curtain produces front and rear tension, and all the tension belts arranged on the length of the side curtain are tightened up and down, so that the side curtain produces up and down tension.

So that The side of the curtainside trailer for sale forms a "side wall" structure with a skeleton on the inside and a curtain tension force on the outside, which bears the lateral force generated by the cargo when the curtainside trailer turns

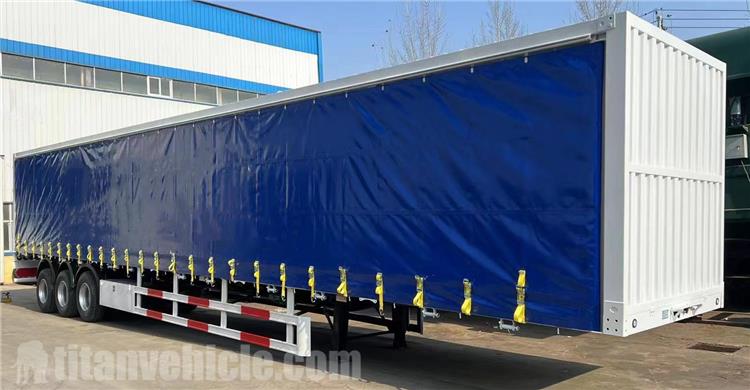

3 Axle Curtain Side Trailer for Sale In Panama

In addition, the side beams of the curtainsider trailer for sale and the floor are provided with several pull rings or floor rings, which are used to fix the goods in the device, so as to reduce the shaking of the goods and the lateral force on the side curtain as much as possible.

The side wall of the curtain side trailer used on roads needs to bear a load of 0.3P, the front wall needs to bear a load of 0.4P, and the rear door panel needs to bear a load of 0.25P. The strength requirements of the components of the curtain side trailer participating in the road-rail combined transport are higher.

The overall strength test of the Curtainsider trailer for sale and the certification test of the components ensure the safety and reliability of the curtainsider trailer.

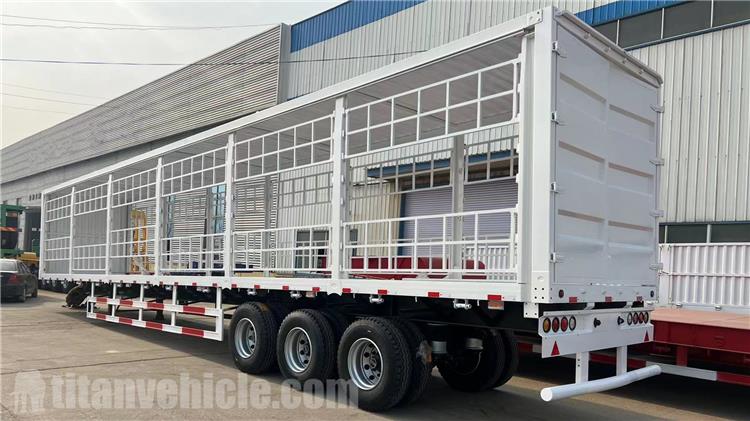

3 Axle Curtain Side Trailer for Sale In Panama

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
