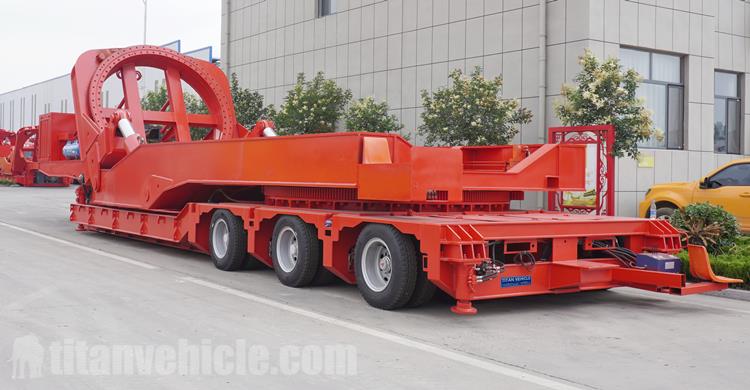

3 Line 6 Axle Windmill Blade Adapter Trailer for Sale In Vietnam

Some time ago, Vietnam customer customized a 3 line 6 axle windmill blade adapter trailer. TITAN windmill blade adapter trailer of transportation generally uses a special blade transport vehicle (windmill blade adapter) with blade lifting-rotating-hydraulic rear-wheel steering. The special vehicle can lift the blades through hydraulic control during driving, and rotate 360 degrees by itself, avoiding various restrictive obstacles (mountain slopes, trees, houses, bridges, tunnels, etc.)

During transportation, thereby greatly reducing blades the overall length of the transport body improves the performance of cornering.

TITAN windmill blade adapter trailer are customized, so customers can choose trailers with different configurations and different parameters. After discussing with the customer in detail this time, our factory also carefully studied the drawings of the windmill blade adapter trailer, and made it according to the customer's needs.

After completing the vehicle and testing the vehicle, we immediately shared the pictures and videos of the vehicle with the customer. Recently, we are going to send it to Vietnam. We hope that the customer can receive our 3 line 6 axle windmill blade adapter trailer smoothly.

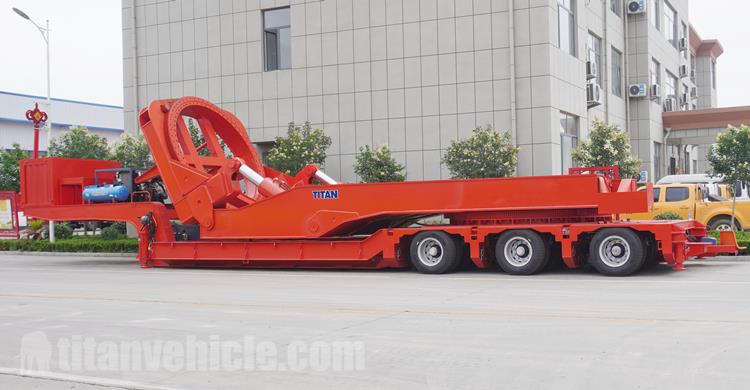

Windmill Rotor Blade Adapter Trailer for Sale Price

The advantages of windmill blade adapter trailer transportation

The length of the wind blade is at least 30 meters, so the above-mentioned transportation method cannot be used in mountainous areas.  We have windmill blade adapter trailer specially designed to transport wind blades, which solves the problem of transportation in the mountainous area of wind blades.

It is different from the transportation on the car, the wind blade can be moved up and down, left and right in different directions, so as to avoid various obstacles on the mountain road to meet the needs of wind blade transportation. On the fixed base of the blades, the low center of gravity ensures safety.

Transporting the blades by lifting can better avoid high mountains and cliffs, or houses and buildings, so as to realize the rapid transportation of blades. At the same time, this method can also reduce the cost of road reconstruction and house demolition, and help improve the efficiency of blade transportation and engineering benefits.

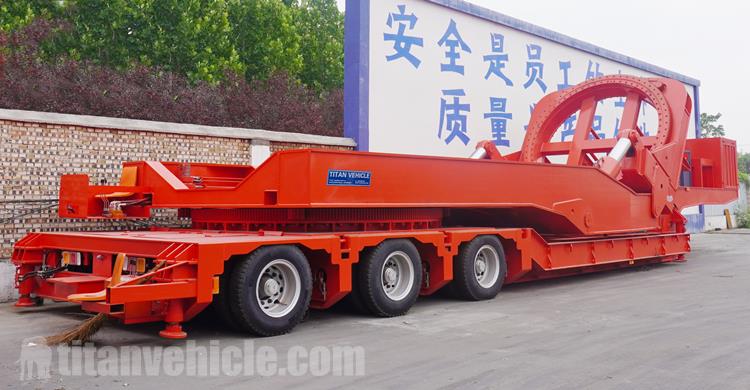

Factory Show of 3 Line 6 Axle Wind Blade Adapter Trailer Manufacturer

Design of the wind blade adaptor

The rearward setting makes the length of this wind blade lifter adaptor shorter, which is conducive to driving in mountainous areas; the operation by dedicated personnel is helpful to improve safety.

Unlike conventional windmill blade adapter for sale, the length of this wind blade adapter trailer is very short, which is also to satisfy that the vehicle can run normally on mountain roads. You can think of it as a crane, with its walking part on the bottom and a turret on the top. The wind blades are like the boom of this crane.

The wind blades to be transported are fixed on the vehicle by bolts, and the wind blades and the base are firmly integrated. During the transportation process, the wind blades can move up and down, left and right, without danger. The up and down displacement of the base is realized by the oil cylinders arranged on both sides, which can achieve a lifting range of 0-60 degrees.

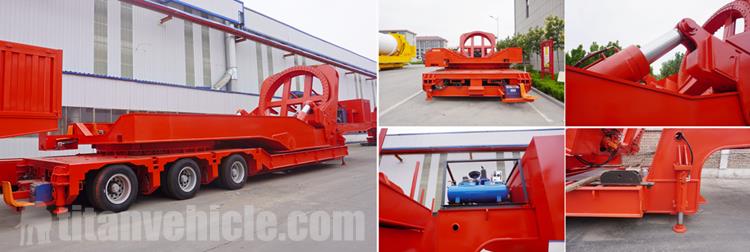

Details of Windmill Adapter Trailer

In order to ensure that the center of gravity of the wind blade is unstable when it is displaced, the back of the base can prevent the counterweight to achieve For the balance of the entire vehicle, the counterweight can be flexibly added according to the weight of the wind blade. The trailer is equipped with 275/70R22.5 size tires, the purpose is to reduce the height of the entire vehicle, not only more convenient when loading and unloading, the lower height also ensures the stability of the vehicle during operation.

The turret is fixed on the 3 line 6 axle windmill rotor blade adapter trailer, and the hydraulic motor drives the gear fixed under the turret to realize the rotation of the entire base. The turret can theoretically realize a 360-degree rotation.

If the wind blade is so long, the force generated by the frontal wind is very terrifying, and if it is held high, it is very likely to overturn the wind blade adapter transport vehicle. To solve this problem, the base can rotate along the axis of the blade under the premise of satisfying the lifting requirement, so that the windward side of the blade is always on the side with the smallest area.

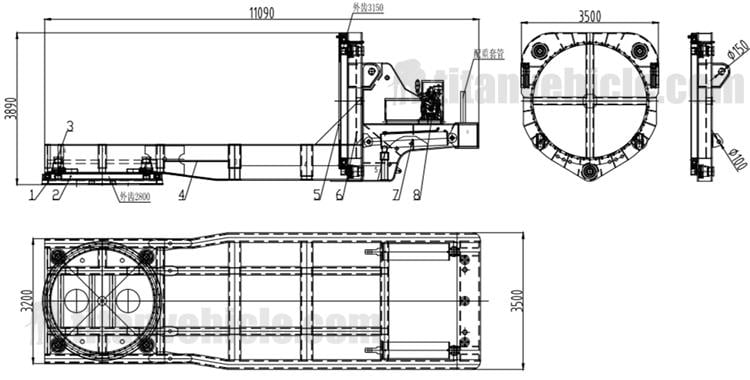

Drawing of Windmill Blade Adapter

Here is the Extendable Windmill Blade Trailer transportation details display video. This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
