37 Ton Side Loader Container Trailer will be sent to Senegal Dakar

37 Ton Side Loader Container Trailer will be sent to Senegal Dakar.

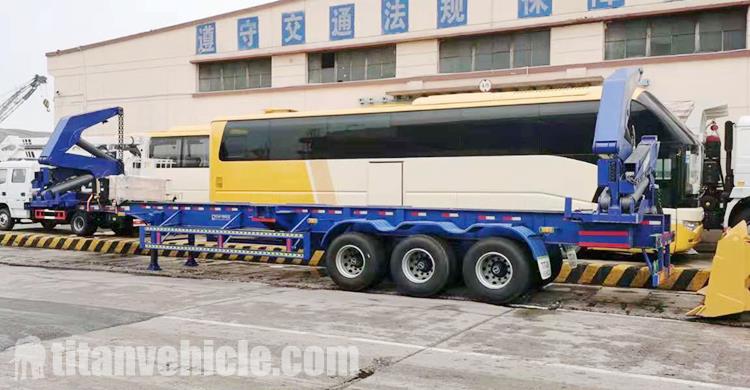

37 Ton Side Loader Container Trailer for Sale In Senegal Dakar37 Ton Side Loader Container Trailer for Sale In Senegal Dakar

Senegal customers purchased 37 ton side loader container trailer for container transshipment. The customer has business contacts in Guinea and found that TITAN’s side loader container is very popular in Guinea, so the customer took the initiative to contact our sales manager. Although it took a lot of time to confirm the configuration, it also ensured the quality of the side loader container Rigorousness.

Because it is the first time for the customer to use it, we have included a manual and instructional video. Of course, customers can also directly inquire TITAN's after-sales department. The customer is very satisfied with this and said that he will promote TITAN's side loader container trailer locally. He hopes that such a good product and service should serve more people.

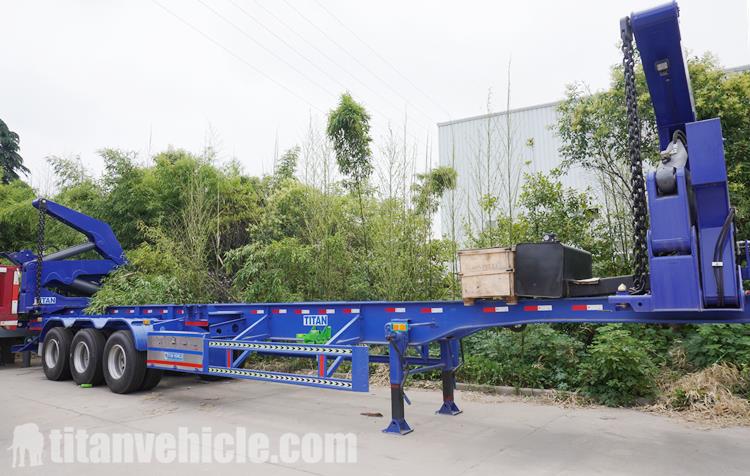

20/40Ft Side Loader Container Trailer for Sale Price20/40Ft Side Loader Container Trailer for Sale Price

37 Ton Side Loader Container Trailer Development Features

1. Product serialization: With the rapid development of container transportation, the number is increasing, and the scope of application is becoming wider and wider. In order to meet the needs of different regions and different environments and different users, major companies have successively developed side loader container trailers.

2. Lightweight structure: Choose high-lightweight materials, optimize structural parts to increase force and load-bearing capacity, and reduce the size of structural parts as much as possible without affecting performance. Lightweight will help increase the load of the 37 ton side loader container and improve the fuel economy of the vehicle.

3. Diversified functions: The products of each company basically have their own special functions, such as extended spreaders, automatic twist locks, container lock chains, etc. With the intensification of competition and the upgrade of user demand, companies will be more stimulated to improve their product functional advantages.

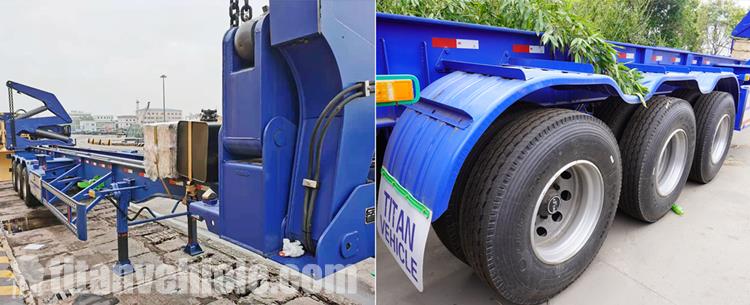

Factory  Show of Side Loader Container Trailer with Capacity 37 TonFactory  Show of Side Loader Container Trailer with Capacity 37 Ton

4. Vehicle automation: reducing costs, reducing personnel on board and improving work safety are inevitable requirements for the development of logistics and transportation.

Remote control realizes remote control, saving time and manpower, and avoiding blind spots; the swing arm and telescopic arm of the air conditioning mechanism adopt hydraulic synchronous or asynchronous control to ensure the stability of the hoisting process; the 40ft sideloader container trailer electric control system of the hoisting mechanism, programmable controller for hoisting.

The mechanism and hydraulic outrigger adopt an interlocking design to reduce operating errors; in terms of preventing overload, the hydraulic outrigger is equipped with a pressure sensor to remind when the system load reaches a critical value to prevent rollover during lifting

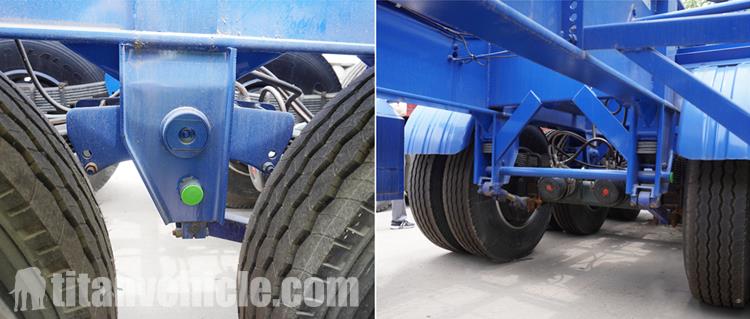

Details of 20 Foot 40 Foot Side Loader Container Trailer for Sale Details of 20 Foot 40 Foot Side Loader Container Trailer for Sale

With a 37ton lifting capacity, the side loader container is quick and stable and boasts an outreach of more than four meters to provide ease of operation. The 20/40ft side loader container is available with a separate power pack system with a Kubota engine. This means that the side loader truck can operate with any truck without any specific hydraulic fittings, and gives more flexibility for operators with a fleet of trucks.

In addition, this model will handle 20 ft containers, 40ft containers as well as 2x20 ft containers side by side.

Another feature is its low stowed position. The 37t side loader container is stored in a low-key manner, which can avoid damage from foreign obstacles during transportation, and also avoid damage and contact with the container when being loaded by straddle carriers.

The hydraulic system is fitted with pilot-operated over-center valves on the crane arm cylinders. These are factory pre-set to cope with unforeseen shock loads or attempts to lift more than the side loader container’s maximum lifting capacity. Prevent the arms from moving unless there is a pressure signal from the main hydraulic valve.

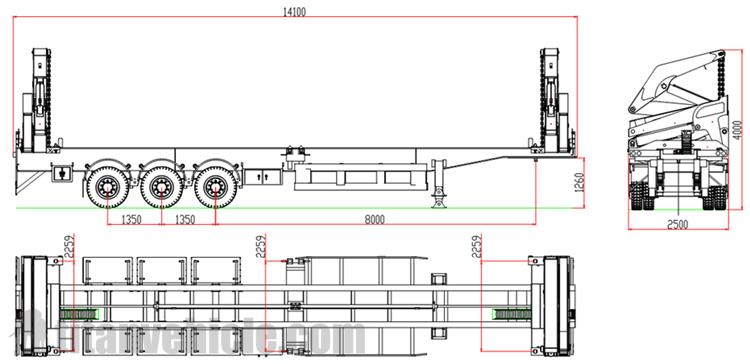

Drawing of Side Loader Container Trailer ManufacturerDrawing of Side Loader Container Trailer Manufacturer

You can download video, you can learn about different types of sidelifter trailers,including 20ft self loader truck, 20ft sidelifter and 40ft container side loader trailer, as well as the process, testing, packaging and customer feedback, etc.

Side Lifter Truck Trailers Video



This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
