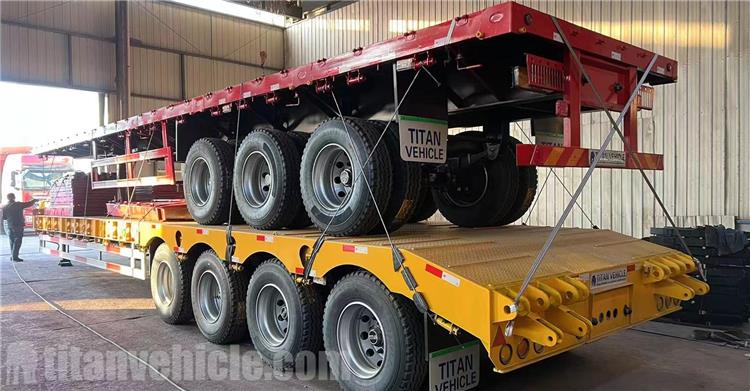

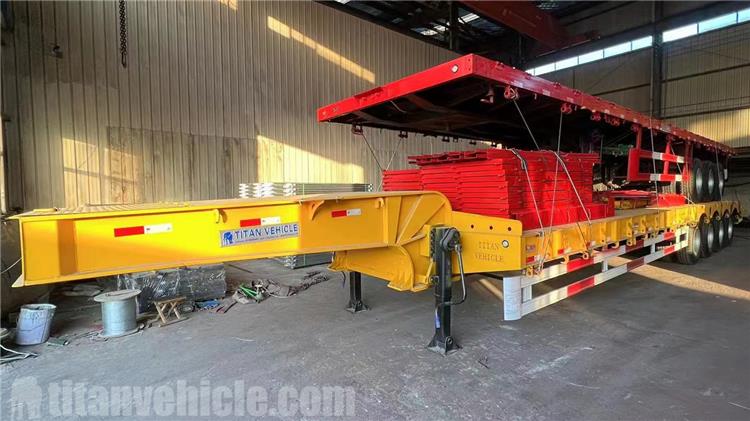

4 Axle 100 Ton Low Bed Trailer and Dropside Trailer for Sale In Mozambique, Bella

The 100 ton low bed trailer and dropside trailer ordered by Mozambique customers have been packaged and sent to the port, and the last batch of semi trailers will be sent out before our holiday.

Three months ago, the customer searched the Internet and found the low bed semi trailer for sale on our official website. The customer was very interested in 3 axle lowbed semi trailer, so he downloaded our quotation and left his contact information. Sophia, the sales manager, contacted the customer and sent him many pictures and videos of the low bed trailer. And according to the needs of customers, recommend customers to buy 4 axle 100 ton low bed trailer.

Finally, after a comprehensive comparison, the Ugandan customer thought that TITAN's low bed trailer was of good quality and the price was the most reasonable, so he decided to buy from TITAN, and added 3 axle 60 ton dropside trailers.

4 Axle 100 Ton Low Bed Trailer and Dropside Trailer for Sale In Mozambique, Bella

Sophia lies in the process of communicating with customers. Has been patiently answering various doubts and questions for customers. Finally, the customer ordered a lowbed trailer. Thanks to Mozambique customers for their support and trust.

With the continuous development of the automobile industry, the number of automobiles continues to increase. In order to avoid the serious impact of the faulty vehicle on the traffic or the surrounding environment, the wrecker is an important guarantee force for carrying out the task.

For the faulty vehicle that needs to be transported over a long distance, it needs to be transported by a special semi-trailer towed by the wrecker. The semi-trailer needs to have the load-carrying capacity of the general trailer, and also needs to be specially designed in combination with the working conditions and structural characteristics of the wrecker, so as to achieve a reasonable match between the semi-trailer and the wrecker and smooth operation. Today, the editor will explain to you the design requirements of the semi-trailer.

4 Axle 100 Ton Low Bed Trailer and Dropside Trailer for Sale In Mozambique, Bella

Low Bed Trailer Ladder Selection and Design

Generally, there are hydraulic ladders and mechanical ladders. Mechanical ladders generally adopt a spring structure, which acts as a booster when the ladder rotates from the ground to the vertical direction. The working principle of the hydraulic ladder is that the motor drives the oil pump to rotate, thereby pushing the oil cylinder to expand and contract.

Since the hinge fulcrum at the fixed end of the oil cylinder is lower than the hinge fulcrum of the ladder, the oil cylinder will drive the ladder to rotate.

The climbing ladder angle of the low bed trailer for sale must not be greater than the departure angle and approach angle of the loaded object. According to the analysis of the loaded object, the departure angle and approach angle of various types of vehicles are greater than 20°.

If the object to be loaded is construction machinery such as cranes, the approach angle and departure angle of general truck cranes are very small, and the low bed trailer can be loaded by temporary slope building or padded sleepers. Therefore, when the ladder is placed on the ground, it will The angle can be 15°～18°, and the departure angle of the semi-trailer is designed to be more than 21°.

Since some loaded vehicles have a long wheelbase and a small passing angle in the middle, the transition between the low bed trailer ladder and the load-bearing surface and the ground The included angle should be as small as possible, and at the same time take into account the length of the bearing surface. It can be designed to be 10°~15°.

4 Axle 100 Ton Low Bed Trailer and Dropside Trailer for Sale In Mozambique, Bella

Dropside Trailer Tire Selection Requirements

Dropside trailer tires are further divided into heavy duty, medium duty and light duty truck tires. Dropside trailer common bias tires and radial tires are used on semi trailers, especially radial tires are the most widely used. The advantages of bias tires are: tire noise is small, the outer tread is soft, and the price is cheaper than radial tires.

Its disadvantages are: when turning, the contact area is small, the crown slips large, the ability to resist lateral force is poor, the rolling resistance is large, the fuel consumption is high, and the stability and carrying capacity are not as good as radial tires when driving at high speed. Dropside trailer radial tires have obvious advantages, the advantages are:

1. The ground area is large, the adhesion performance is good, the tread slip is small, and the pressure on the ground unit is also small, so the rolling resistance is small and the service life is long;

2. The crown is thick and has a hard belt layer, which is not easy to pierce; the deformation is small when driving, which can reduce fuel consumption by 3% to 8%;

3. Because the number of cord layers is small and the sidewall is thin, the heat dissipation performance is good;

4. Large radial elasticity, good cushioning performance and large load capacity.

4 Axle 100 Ton Low Bed Trailer and Dropside Trailer for Sale In Mozambique, Bella

You can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder lowbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
