4 Axle 60CBM Bulk Cement Tanker Trailer will be sent to Senegal Dakar

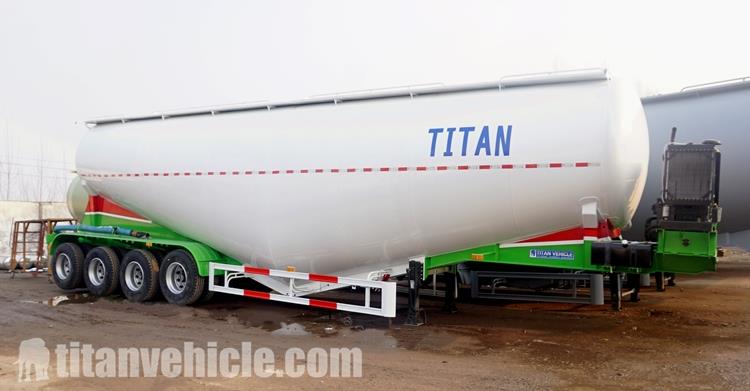

4 Axle 60CBM Bulk Cement Tanker Trailer for Sale In Senegal Dakar

TITAN Senegal customers bought 4 axle 60cbm bulk cement tanker trailer again. Two years ago, customers bought our 3 axle W shape bulk cement tanker. Two different bulk items can be transported at the same time. Now customers only need to transport cement, so they bought 4 axle 60cbm cement tanker trailer.

The quality wins the trust, the details decide the success or failure. Thanks for customers' trust again. You carry hope to find us and we let you satisfaction to return you. And 4 axle 60cbm bulk cement tanker trailer has been shipped to the port. It will be sent to Senegal.

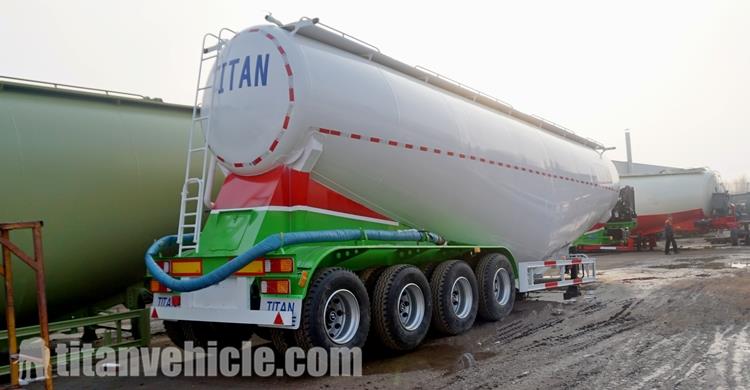

4 Axle Bulker Cement Tanker Trailer Price

The main assembly of 4 axle 60cbm bulker cement tanker trailer is composed of tank body, power system (diesel engine or power take-off, air compressor), pneumatic system, brake system and other parts.

1. Tank body: The tank body is mainly composed of two oblique cones and front and rear heads, which are placed on the frame and also serve as a carrier. The tank body is equipped with a material inlet (manhole), a non-slip walking platform and a climbing ladder for loading and maintenance personnel to enter the tank. Inside the tank is a fluidized bed composed of a sliding plate (which is a part of the tank body), an air chamber, a perforated plate (or a special canvas), a discharge port, reinforcing ribs, etc. The tank body structure is V-shaped, W-shaped or straightforward.

2. Power system: use domestic well-known brand oil-free pendulum single-cylinder or double-cylinder air compressor to provide compressed air for unloading work. The rated working pressure is 0.2Mpa; the displacement is 10-14 cubic meters/min. The diesel engine and the electric motor wave are connected to the drive shaft through the secondary force to provide power input for the air compressor.

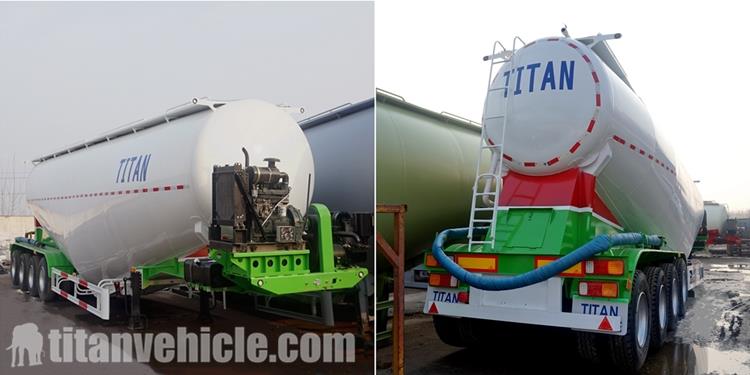

60CBM Bulk Cement Tanker Truck Trailer

4 Axle 60cbm bulk cement tanker trailer other structural assemblies and their working principles

1. Frame: The frame is the main body of the 4 axle 60cbm bulk cement tanker trailer, which is welded into a frame structure by two longitudinal beams and multiple beams, and formed by welding with the tank body. Since the frame is the main body of the semi-trailer, welding or drilling operations are not allowed in any position on the longitudinal beam without our company's consent!

2. Walking mechanism system: The walking mechanism system consists of suspension, leaf springs, tie rods, axles and wheels, etc. The suspension is a three-axis tandem balanced leaf spring suspension (air suspension can also be used), which is used to support the load, And has the function of absorbing driving vibration.

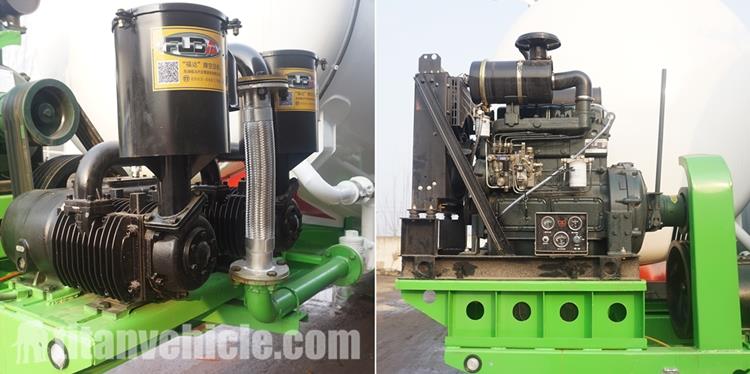

Details of 60CBM Bulk Cement Tanker Truck Trailer

3. Brake and its operating device: The 4 axle 60cbm bulk cement tanker trailer adopts a dual-pipe pneumatic braking system. The service brake system mainly consists of palm joints, air supply pipelines, control pipelines, emergency maintenance valves, gas storage cylinders, energy storage brake chambers and wheel brakes.

4. The parking brake is controlled by the semi-trailer energy storage spring brake system and the wheel brake doubles as the parking brake. This device is used when parking or parking on a slope.

5. ABS braking system: It is an electronic system that controls and monitors the speed of the vehicle during braking. It can improve the active safety of the 4 axle 60cbm cement tanker trailer.

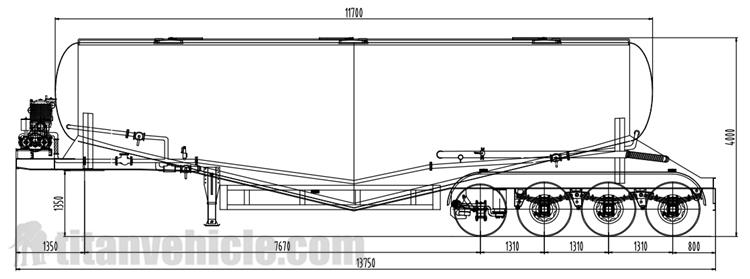

Drawing of 4 Axle 60CBM Bulk Cement Tanker Trailer

You can download video,you can learn about different types of bulk cement tanker trailers, such as 3 axle dry bulk tanker trailer, 30-ton fly ash tanker, 50cbm silo trailer for sale, and process, testing, packaging and customer feedback, etc.

Bulk Cement Tanker Trailers Video

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
