4 Axle U Shaped Dump Trailer FOB Price: 18000 USD
4 Axle U Shaped Dump Trailer FOB Price: 18000 USD
| 4 Axle U-Shaped Dump TrailerFOB Price: 18,000 | |||
|---|---|---|---|
| Shipping Note: Actual ocean freight costs vary depending on the destination country and shipping route. | |||
| Volume: 38CBM | Delivery Time: 3-5 days (In Stock) | |||
| Specification | Details | Specification | Details |
| Product Name | U-Shaped Dump Trailer | Hydraulic Cylinder | TITAN 214 Complete Set (with quick-connect pipes & factory pre-installed) |

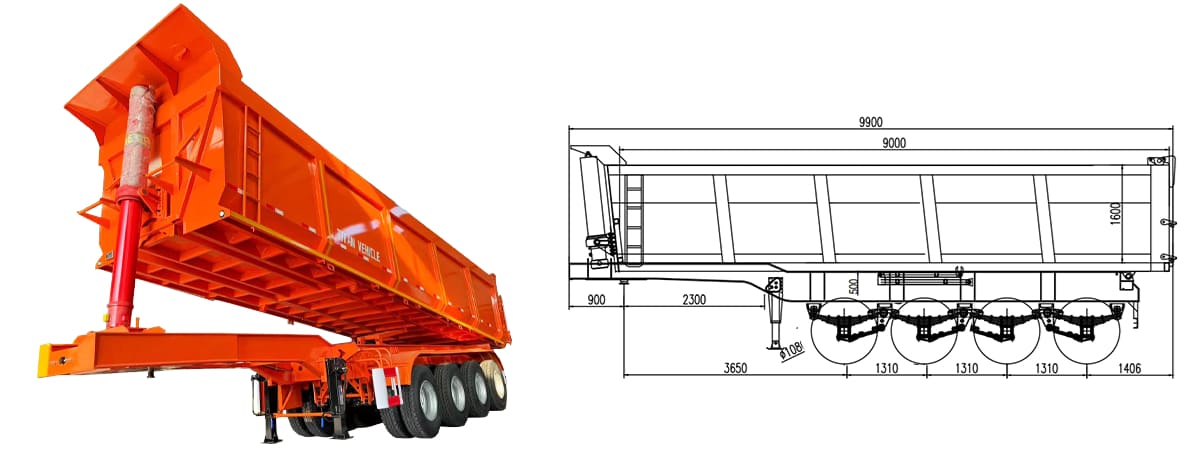

| External Dimensions | 9500mm x 2500mm x 1600mm | Cargo Box Thickness | Bottom: 8mm / Side Edge: 6mm |
| Main Beam (Longitudinal) | Height 500mm; Upper Plate 20mm; Lower Plate 20mm; Web Plate 10mm | Structure Reinforcement | Rear 3-axle double web reinforcement; No-hole front/rear plates; High-strength square tubes |
| Axles Configuration | zy 13 Ton Axles * 4 units (TITAN) | Suspension & Springs | 8mm Mechanical Suspension, 10 leaves * 16mm thickness |
| Tires & Wheels | Golden Shield 12R22.5 Tires / Thickened Rims * 17 units | Traction Pin | #50 for Installation / #90 for Trailing |
| Braking & Valve | Dual Circuit Braking System with WABCO Synchronization Valve | Landing Gear | TITAN 28 Ton Heavy Duty |
| Side & Upper Beams | Thickened High-Strength Bending Side Beams / Enlarged & Reinforced Upper Beam | Co-Driver/Passenger Side | 8*14 High-Strength 6mm Tube; Upper Beam: H 280mm, W 80mm, T 6mm |
| Anti-Rollover System | Rear tilting 4-bracket (Thickened) with High-Strength Square Tube Balance Bracket | Electrical & Box | 24V Standard 7-pin plug / 1 unit Concealed Lock Style Toolbox |
| Mudguards & Shields | Thickened Iron Mudguards & Enlarged Tire Guard Plates | Spare Tire Carriers | 2 units with front windshield, lifting points & 2 chain hoists |

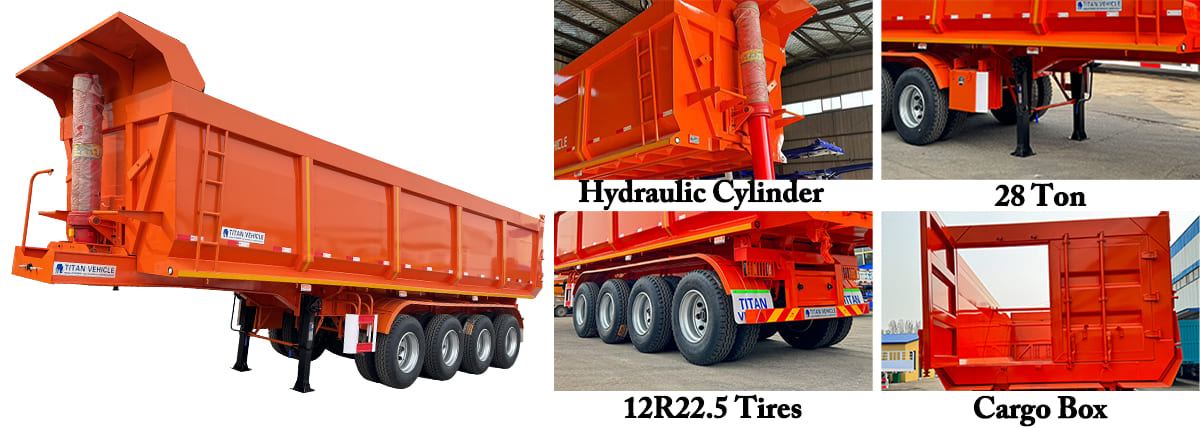

This customized 4 Axle U-Shaped Dump Trailer is specifically engineered for severe mining conditions and heavy-duty aggregate hauling. The specialized U-shaped aerodynamic structure provides cleaner unloading, lower center of gravity, and optimal payload stability. Powered by a complete TITAN 214 front-end hydraulic lifting system, the trailer guarantees stable tipping operations even under extreme loads.
Structural durability is unmatched: features include 500mm heavy main beams with double web plates, a reinforced passenger side configuration, and a 4-bracket rear tilting mechanism complete with an anti-rollover balance bracket. The rear door lifting lugs have been thickened and pins are factory welded in place to prevent accidental detachment during extreme discharge angles.

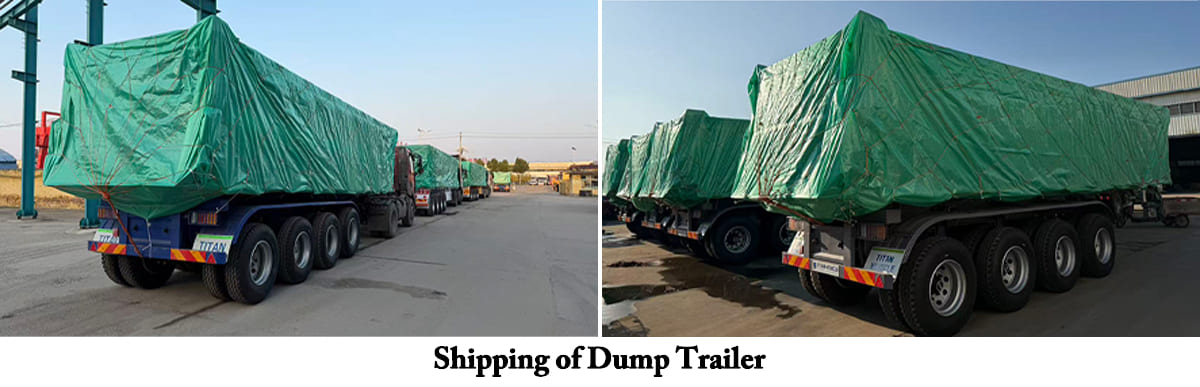

Logistics Optimization: To reduce transit volume and ocean freight costs, the modified rain awning will be carefully disassembled before departure and securely placed inside the cargo box. Extended rear guide plates and integrated dual-side climbing ladders come pre-fitted for operations.
Premium Protection: Every single unit undergoes automated full-vehicle sandblasting followed by advanced electrostatic powder baking coating for ultimate rust resistance. A heavy-duty wax coating is fully applied prior to vessel loading.
