Since 2014
Ten Years of Reliability Your Trusted Partner

Customer Feedback

40 foot Tri Axle Trailer will be sent to Algeria

40 foot Tri Axle Trailer for Sale In Algeria40 foot Tri Axle Trailer for Sale In Algeria

The Algerian customer has been using the tri axle trailer for 3 years. Recently, the customer urgently ordered 40 foot tri axle trailers due to business expansion. Customers trust us so much that they contact us again.

Customers put forward higher transportation requirements for semi trailers. While they continue to improve transportation efficiency, they also need to transport heavier cargo. So how to choose a more suitable flatbed semi trailer is very important for customers. So we recommend the 40 foot tri axle trailer, which can carry 60 tons of cargo. 40 foot tri axle trailer Most customers mainly use it to transport containers.

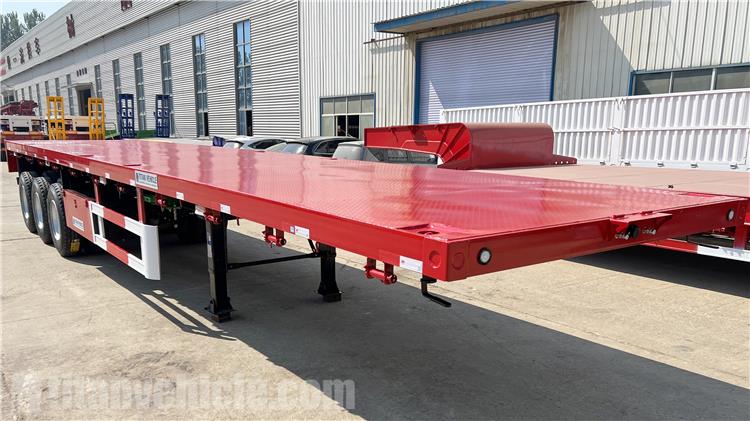

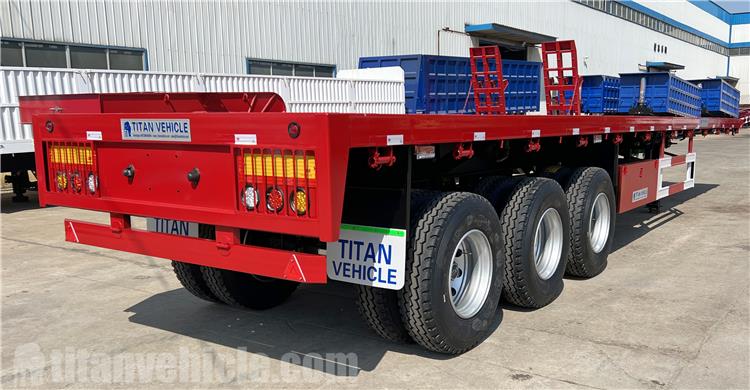

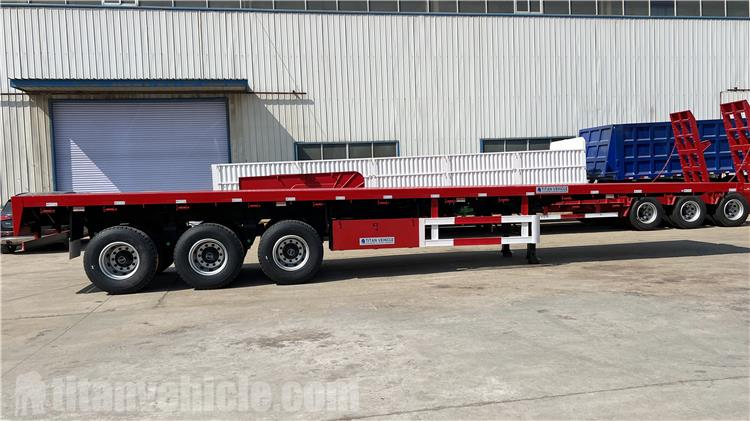

Below is the 40 foot tri axle trailer that will be shipped soon.

40 foot Tri Axle Trailer for Sale In Algeria40 foot Tri Axle Trailer for Sale In Algeria

40 foot Tri Axle Trailer Main Assembly Introduction

Suspension system (rigidity): transfer load, absorb vibration

Axle and hub system: There are single, two and three axle assemblies with the same structure under the suspension system. The tire and rim assembly is fastened to the hub with tire bolts to support the weight of the 40 foot tri axle trailer.

Outrigger lifting mechanism: In order to make the 40 foot tri axle trailer park reliably after detaching from the tractor, there are two linkage or single-action outriggers at the front end of the frame. It is composed of screw transmission mechanism, bevel gear transmission mechanism, two-speed reduction box, transmission rod, operating handle and so on.

40 foot Tri Axle Trailer for Sale In Algeria40 foot Tri Axle Trailer for Sale In Algeria

When the handle is pushed in, it can be raised and lowered at a high speed by turning it, and when the handle is pulled out, it can be raised and lowered at a low speed by turning it. When the outrigger touches the ground, only low gear can be used for lifting and lowering.

Traction pin and guide plate/frame: There is a traction pin and a traction pin connection plate connected to the saddle of the tractor at the lower part of the front end of the frame. The traction pin is mainly used to transmit the traction force of the tractor and the braking force during braking

The pneumatic components of the brake system of the 40 foot tri axle trailer for sale realize emergency braking when the inflation pipeline of the 40 foot tri axle trailer is damaged or the air intake is considered cut off, shortening the braking lag time and quickly releasing the brake, replacing the original half Brake valve, distribution valve, accelerator valve, quick release valve in the trailer brake system.

40 foot Tri Axle Trailer for Sale In Algeria40 foot Tri Axle Trailer for Sale In Algeria

Electronic control system for monitoring and controlling the speed of 40 foot tri axle flatbed trailer during braking, including ABS solenoid valve, ABS wiring harness, ABS probe, ring gear and other components.

Cooperate with the relay valve to perform the service braking function; to prevent the brake from locking, the wheel end speed is detected by the probe, and when the speed drops to 0, the signal is fed back to the solenoid valve, and the solenoid valve adjusts the air pressure to reduce the braking force and prevent braking Locking, increase driving safety factor.

You can learn about different types of flatbed semi trailer, such as 2 axle flatbed semi trailer,3 axle container semi trailer,4 axle 40ft flatbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
