60 Ton Lowbed Trailer will be sent to Rwanda

60 Ton Lowbed Trailer for Sale In Rwanda with Best Price60 Ton Lowbed Trailer for Sale In Rwanda with Best Price

A customer from Rwanda customized a 60 ton low bed trailer. This customer searched for lowbed trailer products on Google, clicked into our website many times, downloaded the quotation form on the website and left his email address.

Then our sales contacted the customer, and the customer said they wanted a 60 ton lowbed trailer. According to the customer’s request, the sales sent to the customer the pictures and details of the 3 axle lowbed trailer for a variety of models. After the customer determined the size and other details of the cimc trailer, the factory completed the production of the cimc trailer within the specified time. The style is as shown in the text, and it will be shipped soon.

As one of TITAN company's most successful trailer ranges, our 60 ton lowbed trailer are widely recognized for their strength and durability. Models include the 30 Ton two axles to 100 ton four axles. Our company also manufactures multi axle low boy trailer to carry more than 100 tons which provides flexibility in transportation. TITAN trailer Company provides a comprehensive range of low bed trailers, to meet all heavy haulage requirements.

60 Ton lowbed trailer range has been designed primarily for heavy construction machines like bulldozers, excavators and cranes, but depending on user requirements can be adapted to suit commercial and agricultural vehicles when necessary.

60 Ton Lowbed Trailer for Sale In Rwanda with Best Price60 Ton Lowbed Trailer for Sale In Rwanda with Best Price

60 Ton low bed trailer main assembly introduction

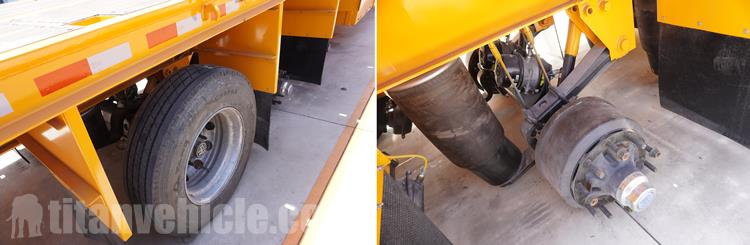

Suspension system (rigidity): transfer load and absorb vibration.

Axle and wheel hub system: Single, two and three axle assemblies with the same structure are installed under the suspension system. The tire and rim assembly are fastened to the hub with tire bolts to support the weight of the 60 ton low bed trailer.

Outrigger lifting mechanism: In order to make the 60 ton low bed trailer park reliably after being separated from the tractor, two outriggers, linked or single-acting, are provided at the front end of the frame. It is composed of a screw drive mechanism, a bevel gear drive mechanism, a two-speed reduction box, a transmission rod, and an operating handle.

When the handle is pushed in, it can be raised and lowered at a high speed by turning, and when the handle is pulled out, it can be raised and lowered at a low speed by turning. When the outriggers touch the ground, they can only be raised and lowered in low gear.

Traction pin and guide plate/frame: The lower part of the front end of the frame has a traction pin and a traction pin connecting plate connected to the saddle of the tractor. The traction pin is mainly used to transmit the traction force of the tractor and the braking force during braking.

60 Ton Lowbed Trailer for Sale In Rwanda with Best Price60 Ton Lowbed Trailer for Sale In Rwanda with Best Price

Semi-trailer braking system

It is composed of the trachea's air pipe joint, inflation pipe, operating pipe, air reservoir, brake chamber, relay valve, ABS valve, ABS sensor and wheel brake.

The inflation pipeline is connected to the tractor's air cylinder through a quick coupling; the control pipeline is connected to the tractor's brake valve through a quick coupling. When the 60 ton 3 axle low bed trailer brakes, each brake chamber acts at the same time.

Service brake: During the driving process, the service brake (foot brake) is generally used, which is convenient for decelerating and stopping during the forward process.

Parking brake: The parking brake is the brake used when the car is at a standstill. It is called the parking brake, also known as the "hand brake". Its main function is to prevent the car from sliding forward and backward.

Air-cut brake (emergency brake): The air-filled pipe is cut off or is seriously leaking, and the trailer brake system automatically executes the emergency brake behavior. The control pipe will not be executed, but the "foot brake" will fail.

60 Ton Lowbed Trailer for Sale In Rwanda with Best Price60 Ton Lowbed Trailer for Sale In Rwanda with Best Price

Importance: When the front air pump is damaged or the inflation tube is disconnected, and the air cylinder is seriously leaking, the vehicle's "foot brake" will fail or be ineffective. The air brake is an important guarantee for the safety of vehicles or personnel!

Emergency relay valve: The pneumatic components of the 60 ton 3 axle low bed trailer brake system can achieve emergency braking when the semi-trailer's air-filling pipeline is damaged or the air intake is cut off, shortening the braking lag time and quickly releasing the brake. It replaces the brake valve, distribution valve, accelerator valve and quick release valve in the original 60 ton 3 axle low bed trailer brake system.

ABS (Anti-lock brake system): The electronic control system that monitors and controls the speed of the vehicle during braking, including ABS solenoid valve, ABS wiring harness, ABS probe, gear ring and other components. Cooperate with the relay valve to perform the service brake function;

Prevent the brakes from locking, detect the wheel end speed through the probe, when the speed drops to 0, the signal is fed back to the solenoid valve, and the solenoid valve adjusts the air pressure to reduce the braking force and prevent braking Lock to increase the driving safety factor.

60 Ton Lowbed Trailer for Sale In Rwanda with Best Price60 Ton Lowbed Trailer for Sale In Rwanda with Best Price

You can download video, you can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder lowbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
