9 Axle Extendable Low Bed Trailer for Sale In Kazakhstan

This is the third time for a Kazakh customer to purchase TITAN 9 axle extendable low bed trailer. Of course, the customer also introduced his friends to buy TITAN 9 axle extendable low bed Trailer. Customers' trust has always been the driving force for our production.

The customer said: "I have been buying 9 axle extendable low bed Trailer in TITAN not only because of the good quality but also the service of the sales manager Jacky is also very good. I was a novice when I used it for the first time, and Jacky showed me how to use it through video and audio they also have detailed usage videos and user manuals."

Due to the expansion of the customer's business, it is necessary to upgrade and purchase a new 9 axle extendable low bed trailer. Our professional engineers designed a new 9 axle extendable low bed trailer combined with the customer's needs and Jacky's suggestions.

9 Axle Extendable Low Bed Trailer for Sale In Kazakhstan

9 Axle extendable low bed trailer is specially designed for Kazakhstan, because Kazakhstan stipulates that each axle can carry a maximum load of 8 tons, that is, each tire is 2 tons, and the first line of double axles is 16 tons, so this 9 Axle extendable low bed trailer uses pumping The way of pulling + splicing, the 9 bridges adopt the method of 4+3+2, according to the length of the transport tower, the length of the pulling cargo platform of the weight and the number of bridges, the vehicle mainly transports the round of the wind power tower and the pressure vessel.

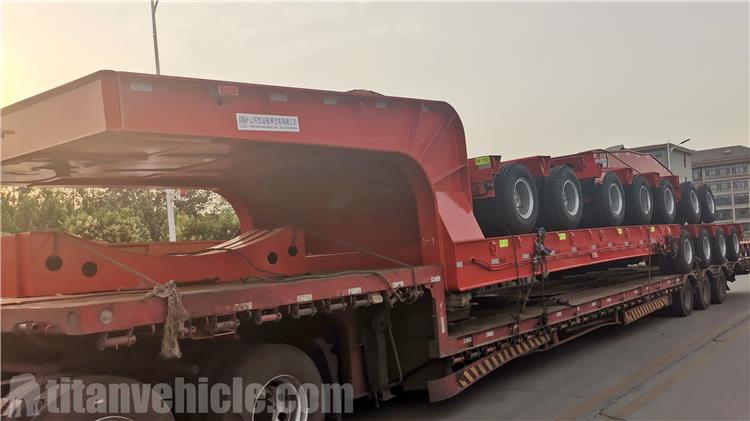

9 Axle extendable low bed trailer dimensions 22750-26750*3200*2150 (gooseneck height), 40+13*9 axles, 52 sets of tires 8.25R16, 52 sets of steel rings 6.5-16, pull 4000, A circular arc beam is designed in the middle of the girder, with a load capacity of 80-100 tons, 16 sets of coyote tires, and a tower and pressure vessel with a maximum diameter of 4919mm when the height limit is 5500mm.

9 Axle Extendable Low Bed Trailer for Sale In Kazakhstan

9 Axle extendable low bed trailer is a super long and indecomposable large object. It is technically difficult to protect safety protection equipment from damage and injury. Preventing rear-end collisions of vehicles driving behind is a safety difficulty in transportation.

In addition to windmill components such as the nacelle and wind tower sections, the wind blades are long and light, and fragile and fragile. How to transport these blades safely and efficiently is the purpose of our trailer.

If you want to transport your blades into the mountains or through narrow roads with U-turns, you may need a blade adapter to do the trick.

The purpose of the rear extension beam is to increase the overall length of the blade trailer. This is the most cost-effective modification to increase length.

9 Axle Extendable Low Bed Trailer for Sale In Kazakhstan

The steering system includes rear axle steering to help the 9 axle extendable low bed trailer navigate curvy roads due to the 62m trailer length. There are three types of steering structure configurations: hydraulic steering rack, turntable steering and shaft steering.

9 Axle extendable low bed trailer for sale is designed to allow elongation to meet different transportation needs. Since the total length of the windmill blade trailer required for this section is 62m, tough and strong materials with a yield strength of at least 460MPa were used.

This ensures that the beam does not sag during operation. In this section, the 9 axle extendable low bed trailer can be adjusted to the desired length to take on the task at hand.

The rear platform forms the rear of the 9 axle extendable low bed trailer. It can be a folding or pulling platform configuration. Therefore, users can choose 9 axle extendable low bed trailer according to these rear platform configurations.
