4 Axle Fence Trailer and 80T Tipper Trailer will be sent to Mauritania.

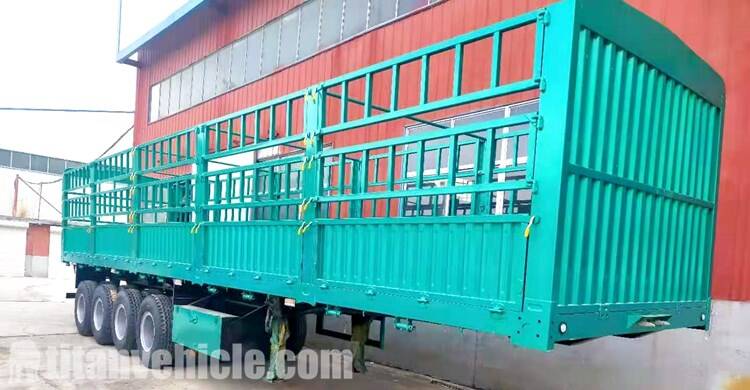

Types of Semi Trailer

Customers from Mauritania ordered TITAN’s 3 axle fence trailer and 80t tipper trailer. They mainly transport some bulk cargo. In 2019, the customer has purchased 2 units fence trailer from TITAN. The customer has expanded his business and is in urgent need of a semi-trailer, so he seeks our help. We recommended the most suitable 80T semi-trailer for the customer. Below is the semi-trailer that has been completed.

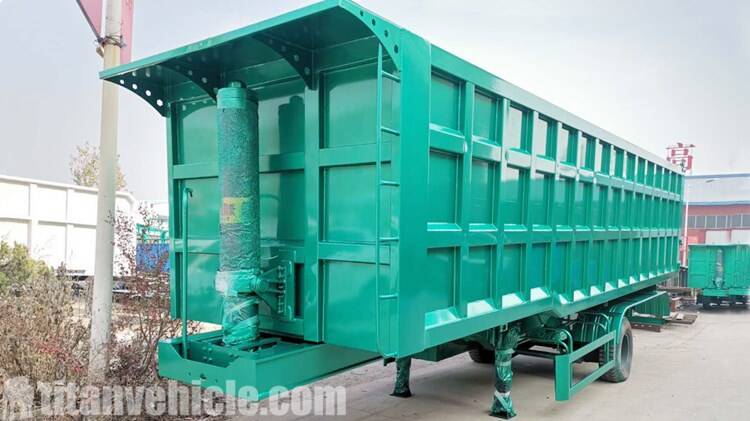

4 Axle Fence Trailer and 80T Tipper Trailer for Sale in Mauritania

The following briefly introduces fence semi trailer and end dump trailer.

Fence trailer is a semi-trailer designed with a fence structure for the loading part. Mainly used for the transportation of agricultural and sideline products and other light foam goods.

1. The frame of the 4-axle fence trailer is a beam-through structure, and the longitudinal beam adopts a straight type or a gooseneck type. The web height ranges from 400 to 500, the longitudinal beams are welded by automatic submerged arc welding, the frame is shot blasting, and the cross beams penetrate the longitudinal beams and weld the whole.

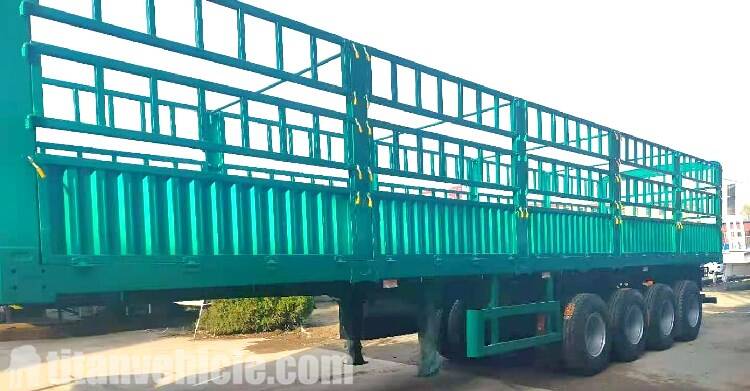

Tri Axle Fence Trailer for Sale Price

2. Suspension system: adopts a new type of suspension system of 4 axle fence trailer with high strength and strong impact resistance; the load of each axle is balanced, and the system tie rod angle is reasonably designed to reduce the friction slip distance between the tire and the ground during frequent turbulence. Effectively reduce tire wear, and at the same time, adjust the tie rod and adjust the wheelbase, effectively avoiding the phenomenon of partial running-in of the tire.

3. The car model and fence structure design process is combined with the user's cargo category and rationally designed to fully reduce the weight of the carriage under load. The structure is simple and applicable, and it is convenient to disassemble, reduce investment costs for users and create more profit value.

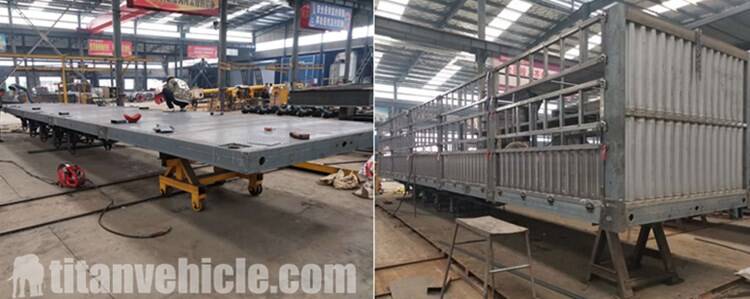

Factory Show of Cargo Trailer

4. Frame: A space frame structure formed by welding longitudinal beams and integral cross beams. It can balance the strength, rigidity and toughness of the frame, with strong bearing capacity and no permanent deformation.

80T tipper trailer is suitable for the transportation of bulk cargo such as coal, ore, building materials, etc. Dump trailers can be divided into two categories according to their uses: one type of heavy-duty and super-heavy dump trailers for off-road transportation are mainly used for transportation tasks such as large-scale mines and engineering, and are usually used with excavators. The other type of light, medium, and ordinary dump trailers for road transportation are mainly responsible for the transportation of loose goods such as sand, soil, and coal, and are usually used in conjunction with loaders.

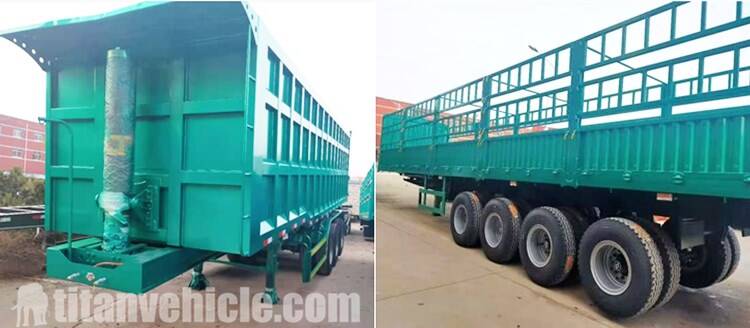

Fence Trailer and Tipper Trailer Manufacturer

1. The carriage adopts side-turning and back-turning self-unloading methods, which can effectively improve the transportation efficiency of the loading and unloading machine to transport the bulk cargo.

2. Both the frame and the longitudinal beam of the carriage are welded with high-quality manganese plates, and the cargo box has two types: dustpan and rectangle. It has high strength, strong lifting force, good rigidity, toughness, strong bearing capacity and no permanent deformation.

3. Sophisticated technology: the main components are processed with advanced equipment, the longitudinal beams are fully automatic submerged arc welding, and the assembly machine is used for precise assembly of the axle and steel plate spring.

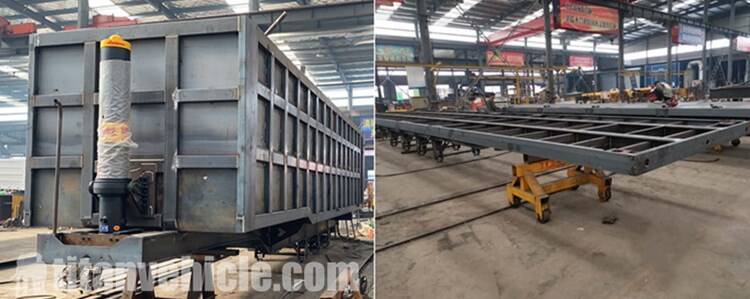

Factory Show of 80T Dump Trailer

You can download video, you can learn about different types of fence semi trailer for sale(like 3 axle fence trailers, 4 axle stake trailer and fence full trailer).And the process, testing, packaging and customer feedback, etc.

Side Wall Semi Trailers Video

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
