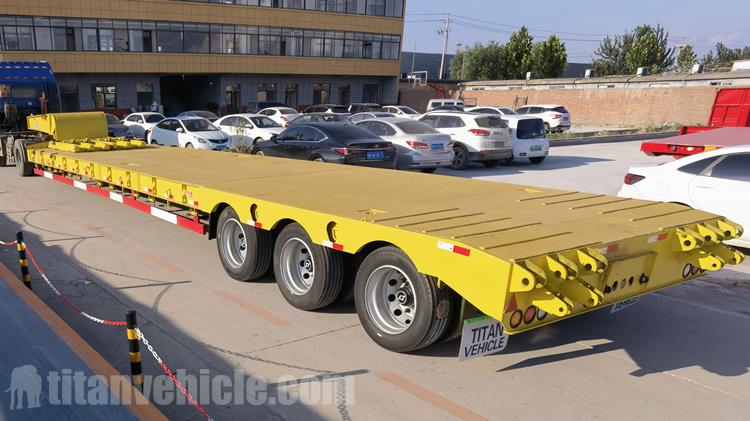

Tri Axle 50 Ton Low Bed Semi Trailer for Sale In Nigeria Lagos

Nigerian customer purchased 5 units tri axle 50 ton low bed semi trailer, the customer likes our low bed semi trailer very much, and helped the customer to solve the very difficult transportation problem during the first cooperation. Customers now mainly transport large equipment such as excavators. Very much hope that we recommend a low bed semi trailer that suits him. Barry, the sales manager, recommended him to use a 50 ton low bed semi trailer. It is very suitable for his transportation needs.

Tri Axle 50 Ton Low Bed Semi Trailer for Sale In Nigeria Lagos

Low bed semi trailer maintenance:

1. Before the Low bed semi trailer is used for the first time, it should be checked according to the "Instruction Manual", and all external bolts and nuts should be tightened.

2. Within 300 kilometers before the new low bed semi trailer, its parts are in running condition. During this period, the weight of the trailer must not exceed 80% of the rated capacity and must not be driven on muddy roads.

3. After driving for 30-50 kilometers with the Low bed semi trailer, check whether the wheels and suspension bearings are hot or noisy. If any abnormality is found, find out the cause in time and eliminate it.

4. After driving 300-500 kilometers for the Low bed semi trailer, all bolts and nuts should be tightened.

Tri Axle 50 Ton Low Bed Semi Trailer for Sale In Nigeria Lagos

Tri axle 50 ton low bed semi trailer features

1. The tri axle 50 ton low bed semi trailer has flat plate, concave beam and exposed tire structure, and the longitudinal beam is straight beam or gooseneck beam. The frame is stepped, and the longitudinal beam section is I-shaped. It has the characteristics of high rigidity and high strength.

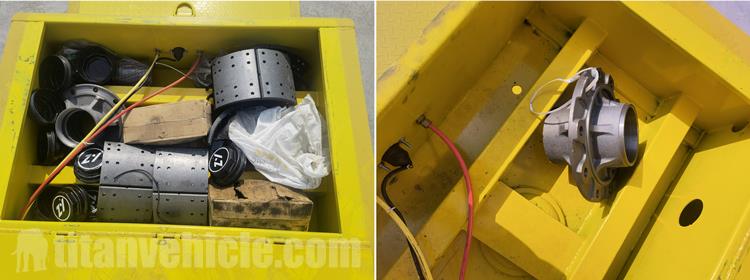

2. Other accessories of tri axle 50 ton low bed semi trailer include tool box, spare tire rack, etc., as well as some small accessories such as tight rope, rope hook, etc., which are very practical accessories, you need to choose according to your own product type .

3. The main plane of the frame and the cargo platform is low, which ensures the stability of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel.

4. The tri axle 50 ton low bed semi trailer protection device consists of side protection and rear protection to protect pedestrians and other vehicles.

5. The electrical system of tri axle 50 ton low bed semi trailer consists of seven-core sockets, cables, gas circuits, various lamps, etc., which are used for lighting, safety warning, and brake gas supply.

6. The tri axle 50 ton low bed semi trailer support device is mainly used to support the low bed trailer when it is separated, and it consists of outriggers and connecting brackets.

Tri Axle 50 Ton Low Bed Semi Trailer for Sale In Nigeria Lagos

How to transport excavator with tri axle 50 ton low bed semi trailer

Choose a suitable location to park and apply the handbrake. Loosen the fixing bolts of the ladder and pull down the ladder.

Guide the construction machinery vehicle to climb the ladder slowly and smoothly into the load-bearing platform, and ensure that the parking position of the heavy vehicle is basically the same as the distance between the two sides of the tri axle 50 ton low bed semi trailer. Plug the wheels of the loaded vehicle with triangular logs.

Rotate the bucket of the excavator to the rear of the vehicle and land on the support plate of the bucket. Clear dirt from the ladder. Raise the ladder and bolt it on.

Depending on the road conditions of the route, bind the machine with nylon straps if necessary

Tri Axle 50 Ton Low Bed Semi Trailer for Sale In Nigeria Lagos

You can download video, you can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder lowbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
