Tri Axle Side Wall Truck Trailer will be sent to Nigeria
Customers in Nigeria found us through Google. Customer was skeptical about buying a trailer overseas, but William helped him with peace of mind in making my purchase. It took his over 1 year to make this purchase after extensive research and looks like our customer made the right decision. So far after a few months of using it, he is very satisfied with this purchase and the price is low compared to African market.
TITAN sales manager William is quick to reply to questions and he is very satisfied with our customer service thus far. If you want to get into a trailer this is the tri axle side wall truck trailer for you.

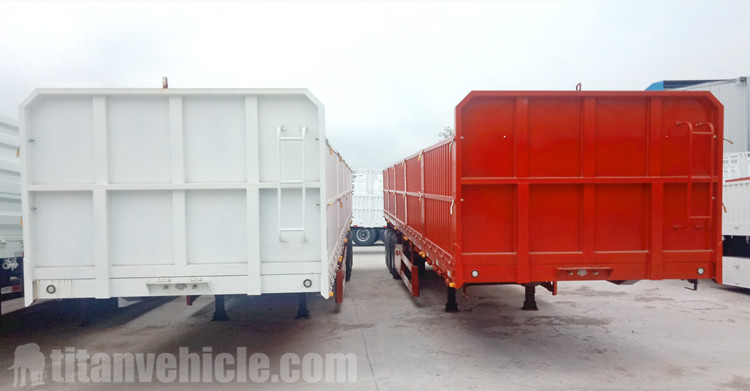

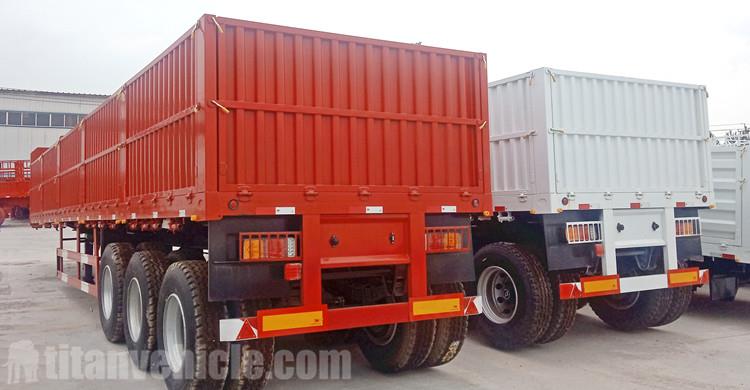

2 units side wall truck trailers ready to ship
TITAN is one of the leading manufacturers of side wall trailer and its trailers are designed keeping the road conditions and the drivers in mind who expect the highest standards of performance and international quality. It has gained immense accolades among its customers with its best efforts, hard-work of its professionals to relish the success as a leading manufacturer of Side Wall Trailers.
As the cost of fuel, parts, labour, and general maintenance increases you need to maximize your equipment's pay load per mile. With TITAN side wall trailer you can do just that.

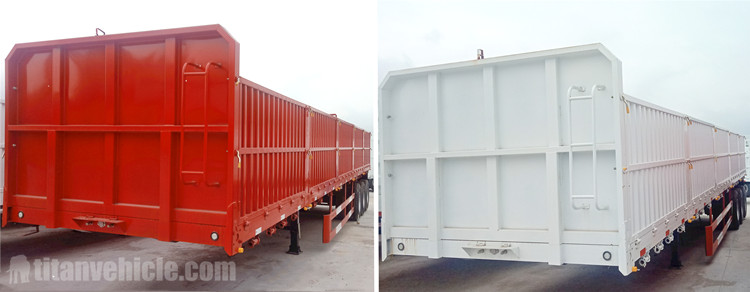

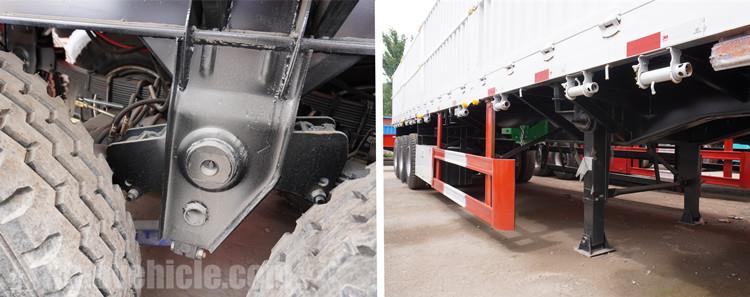

TITAN side wall truck trailer details display
1. TITAN offers an extensive range of high-quality Side Wall Trailers with the valuable assistance of a skilled-team of professionals. Side sall trailers are manufactured using optimum quality raw materials and the latest production technologies in order to ensure its strength.
2. TITAN side wall trailers are robustly designed and built, last longer and require minimum maintenance with an amazing low unladen weight.
3. Whether you are loading cement, steel, any construction materials, etc, TITAN side wall truck trailer is engineered with robust capacity you can rely on.
4. The construction is composed of a one-piece high-quality steel main beam, a strong floor with sidewall frame and many more components that provide very beneficial weight savings to its customers.
Tri Axle Side Wall Truck Trailer for Sale in Nigeria
Tare Weight: About 7.6T

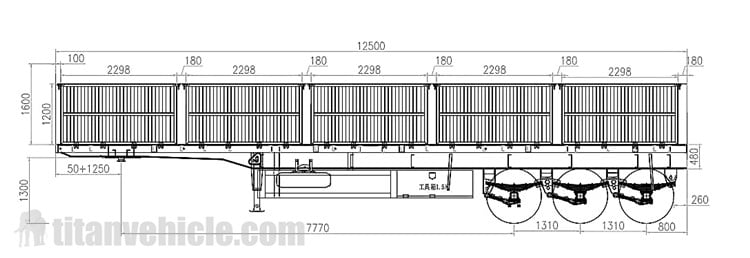

Dimension(mm): 12500x2500x3350mm
Loading capacity(ton): ≤60T side wall truck trailer for sale
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 13 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Trailer Sides: 600-2000mm, or box type sides
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
You can download video, you can learn about different types of side wall semi trailers(like 3 axle sidewall trailers, 4 axles high side trailer, grain hopper trailer, aluminum alloy side board trailer, 2 axle side wall semi trailer with bogie suspension, dropside drawbar trailer). And the process, testing, packaging and customer feedback, etc.
This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
