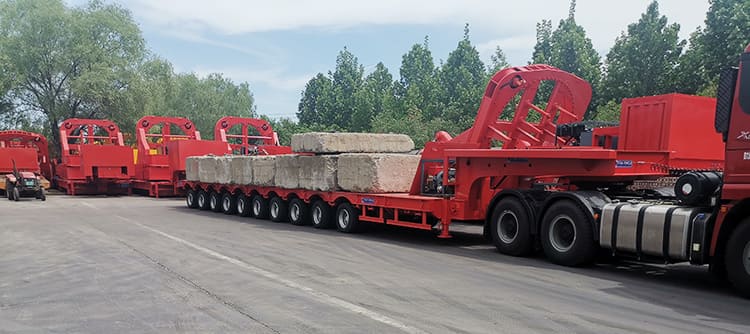

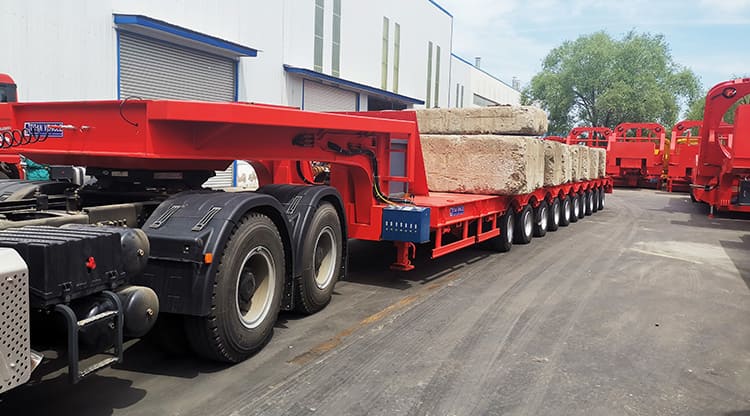

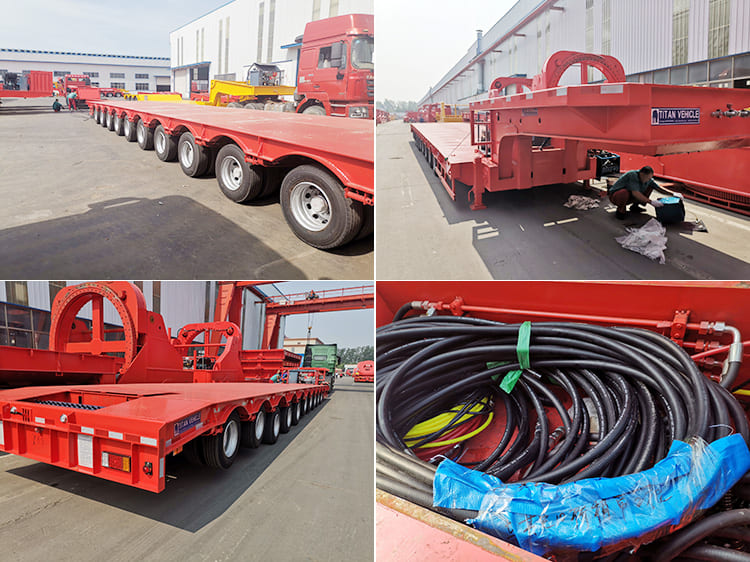

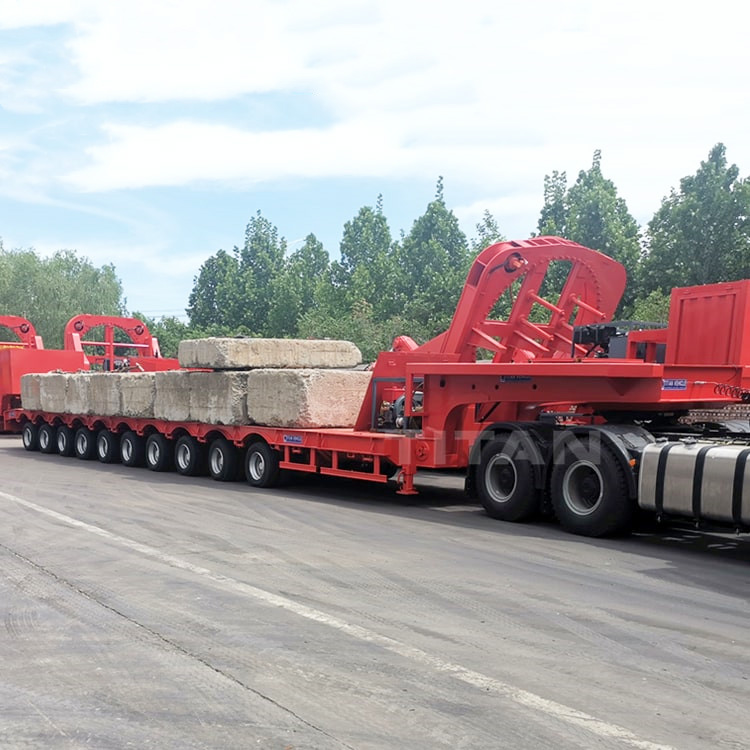

10 Axle Extendable Trailer

Video of 10 Axle Extendable Trailer for Sale in Vietnam



10 Axle Extendable Trailer Description:

This design of the extendable trailer is the newest, making the most extended length of the trailer. The trailer’s most significant feature is that the three extensions are in the front of the trailer. The single-beam can reduce the telescopic beam’s weight to the most and lightweight the trailer in a good way.

10 Axle Extendable Trailers for Sale with Lower Price in Kazakhstan Kzshu

10 Axle Extendable Trailers for Sale with Lower Price in Kazakhstan Kzshu

10 Axle Extendable Trailers for Sale with Lower Price in Kazakhstan Kzshu

10 Axle Extendable Trailer Specification：

Dimension(L*W*H): 18,500mm X 2,990mm X 950mm ( closed state)

33,500mm X 2,990mm X 950mm ( extension state)

Deadweight without ramps: 28.5 Ton

Deadweight with ramps: 29.5 Ton

Frame: HG60 high strength steel frame

Loading capacity: 90 Ton

Length: 18,500mm at closed state; 33,500mm after total extended

Width: 2,990mm + 2 X 250mm side swing bracket

Height: 200mm+/-90mm

Axle: 10 Axles

Maximum steering angle: +/-25°

Tyre: 40 units, 215/75R17.5

Gooseneck: Hydraulic gooseneck

Suspension: Hydraulic lifting suspension (only for adjusting the platform levelling needed)

Hydraulic power station: 1 set,12Kw diesel engine

Loading Ramps: 1 set, detachable ramps

Landing gear: JOST C200

Operation 2 wireless remote control: + 1 control valve panel

10 Axle Extendable Trailer Advantage:

1. 250mm wideners are equipped on both sides of the load-bearing platform; the length of the load-bearing platform is 14.5m, with a 2-level tensile structure, which can stretch 7500x2 to meet the requirements of 29m after the freight platform is stretched;

2. The gooseneck is a power gooseneck, with a device for adjusting the height of the cargo platform and setting the steering part of the axle;

3. The suspension is hydraulic suspension, with lifting function, the force between the axles is balanced by the suspension cylinder, and it has the function of lifting the axle independently;

4. This car has 10 axles, and the axles include 8 active steering axles, 4 in the front and 4 axles in the back; The tires are 235/75R17.5;

5. The active steering axle is controlled by hydraulic cylinders.
