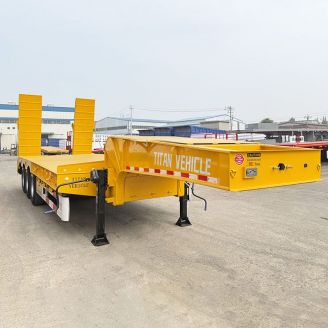

100 Ton Low Bed Truck Trailer Price

Product description:

100 Ton Low Bed Truck Trailer is widely used, mainly for medium and long-distance freight transportation. Its frame is a beam-through structure, and the longitudinal beam adopts a straight and live gooseneck type.

There are many tonnages of 100 Ton Low Bed Truck Trailer we can provide, such as 2/3/4/5/6 axle lowbed trailer, 30,40,60,80,100,120,150,200 ton low bed truck trailer. We can provide customized services according to the actual situation of transportation.

Heavy Duty 100 Ton Low Bed Truck Trailer Price in Dominica

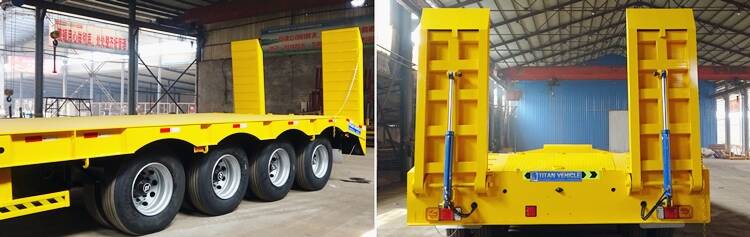

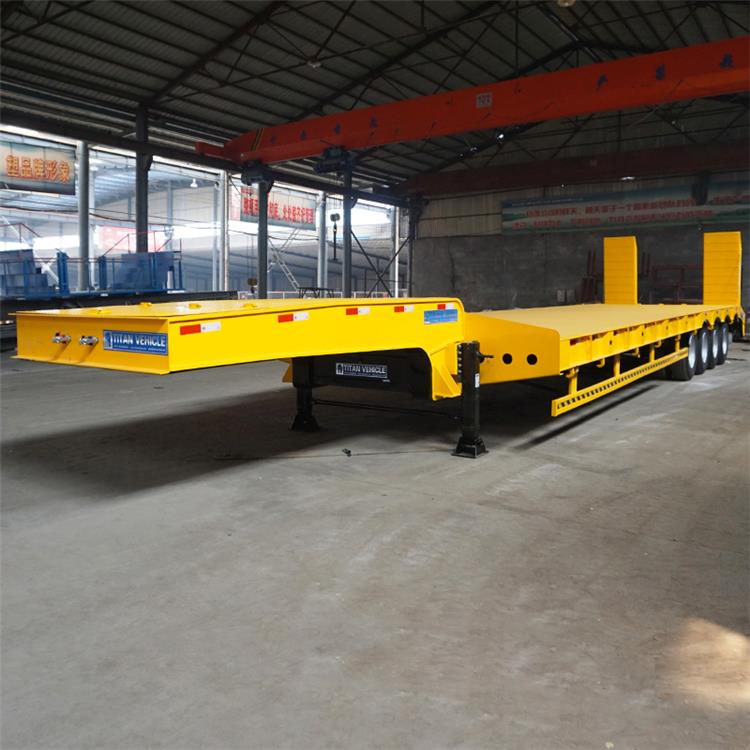

4 Axle Low Bed Truck Trailer Price

Specification：

Overall dimension: 15800mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Lowbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
