100 Tonne 6 Axle Heavy Haul Trailer

100 Tonne 6 Axle Heavy Haul Trailer Price

TITAN mainly produces the 100 Tonne 6 Axle Heavy Haul Trailer and the other various heavy haul trailers, including 2 line 4 axle, 3 line 6 axle, 4 line 8 axle, these heavy haul trailers have a better bearing capacities because of the number of axles and tyres. TITAN also produces the 2 axle, 3 axle heavy haul trailers for sale, these trailers ia a more lighter typed of the heavy haul trailer, the loafing capacity ia about 30ton-80ton

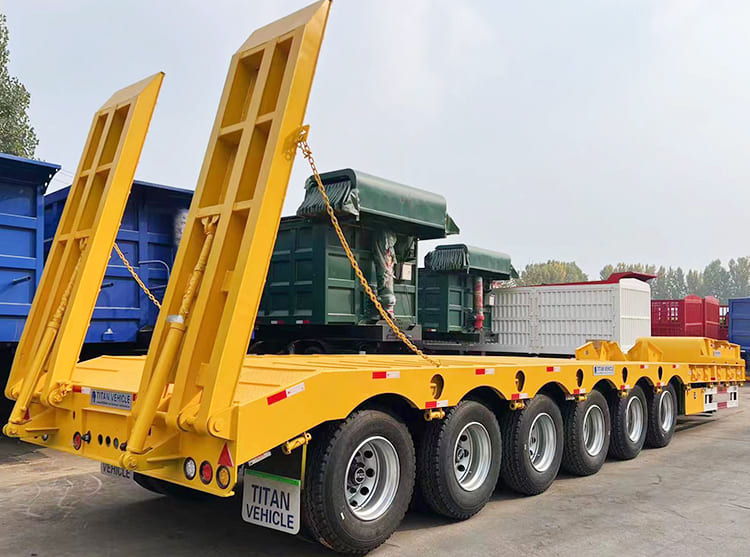

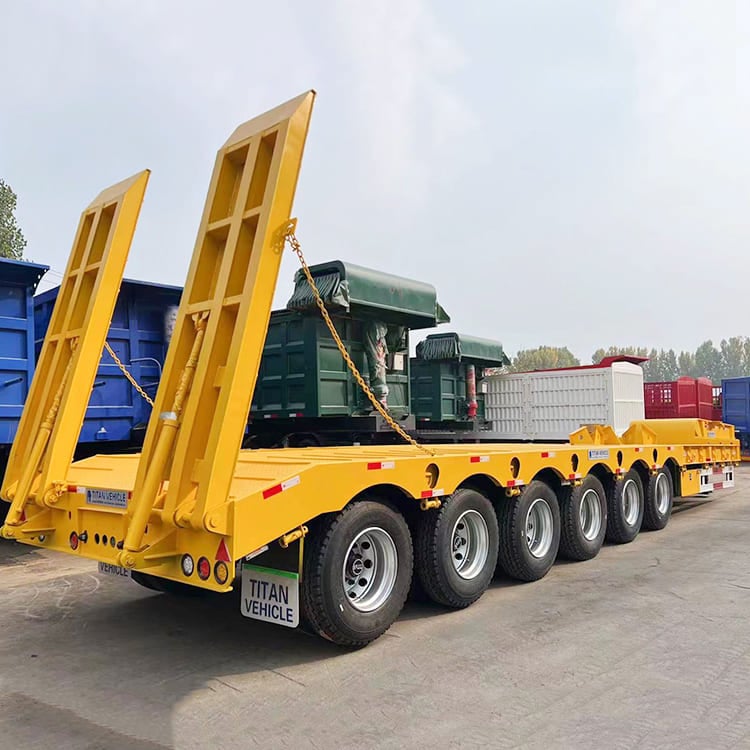

This 100 tonne 6 axle heavy haul trailer for sale loading capacity is above 100 tons, this heavy haul trailer price ramp is made of HG60 steel material, it is very strong, and the ramp of this 6 axle heavy haul trailer is hydraulic ramp, it is very easy for one person to operate.

100 Tonne 6 Axle Heavy Haul Trailers for Sale Price in Tanzania

100 Tonne 6 Axle Heavy Haul Trailers for Sale Price in Tanzania

100 Tonne 6 Axle Heavy Haul Trailers for Sale Price in Tanzania

6 Axle Heavy Haul Trailer Specification

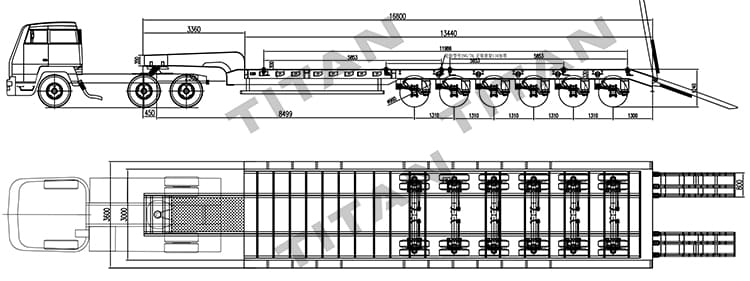

Overall dimension: 16800mm * 3600mm *3700mm

Loading capacity(T): 100 tons

Axle:  6 axle,  13T/16T, FUWA / BPW  Brand

Rim: 8.0-20

Tire: 24units, 11.00R20

Suspension: Airbag suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

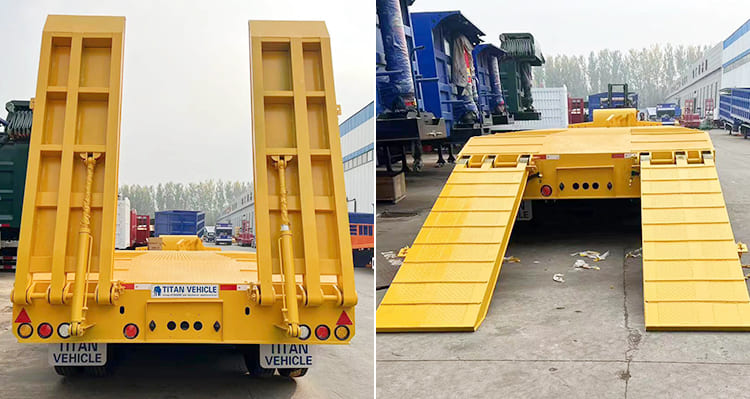

Ramp: Hydraulic ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

Shipping Terms: By bulk cargo, RORO or 40HQ containers

100 Tonne 6 Axle Heavy Haul Trailers for Sale Price in Tanzania

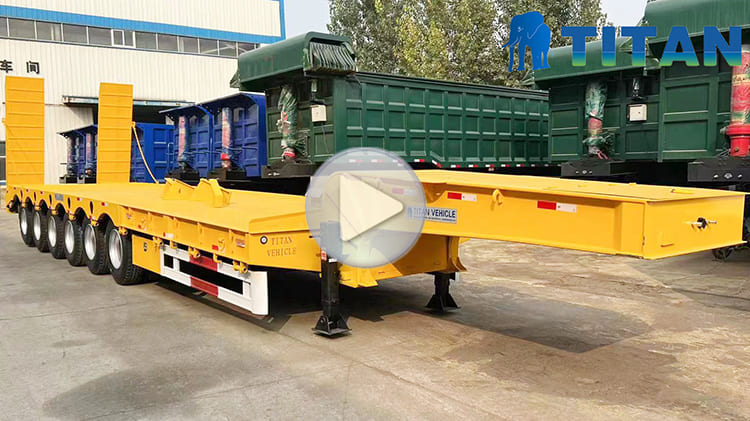

Video of 6 Axle Heavy Haul Trailer

Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
