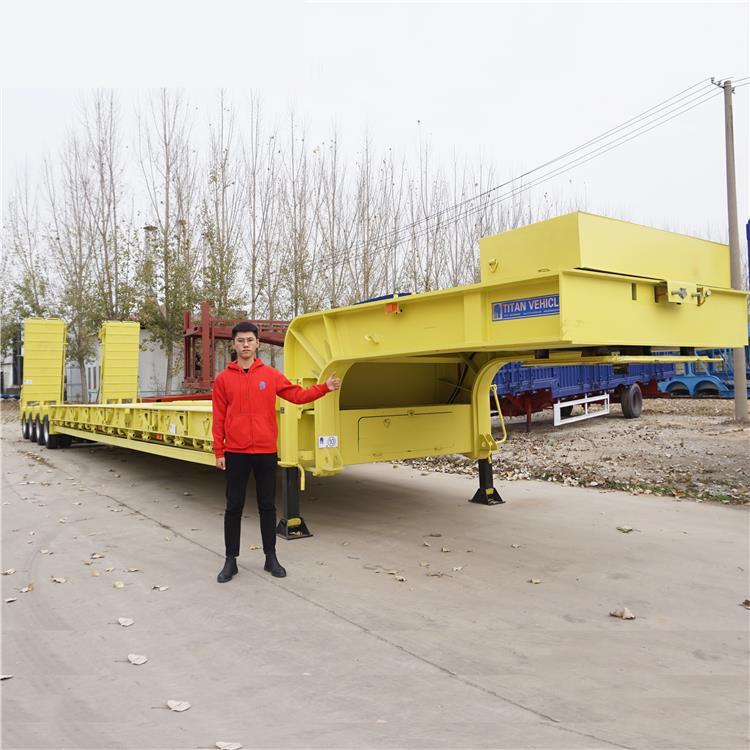

120 Tonnes Low Bed Semi Trailer

Product description:

120 Tonnes Low Bed Semi Trailer adopts 500mm main beam, effectively increase 10% loading capacity than the normal heavy load trailer for sale which uses 450mm main beam, and ensure the main beam resistance to twisting forces, shock and bump, meet load requirements on a bad road.

Low Bed Semi Trailer also can transport all categories of heavy loads. such as finished products from these industries are packed in containers and stacked on lowboys for transportation. The transporters can move stacks of heavy containers without toppling over. So, we also usually choose 120 Tonnes Low Bed Semi Trailer to transport heavy goods.

120 Tonnes Low Bed Semi Trailer for Sale in Guinea

4 line 8 axle Low Bed Semi Trailer for Sale

Specification：

Overall dimension: 15800mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)
