130T Removable Gooseneck Trailer

25000 USD

A 130T removable gooseneck trailer, also known as a double drop or lowboy, is ideal for hauling large equipment.

SKU: TITAN9409150
GTIN: 6975766116521
MPN: TITAN9409150
Brand: TITAN

130T Removable Gooseneck Trailer Product Description:

A 130T removable gooseneck trailer, also known as a double drop or lowboy, is ideal for hauling large equipment.  Heavy equipment hauling can be cumbersome and difficult. For those of you who have shipped large equipment in the past, you know how technical the process can be. That is why the removable gooseneck semi trailer was created. With an removable gooseneck semi trailer you can hold heavy equipment lower to the ground and avoid issues with height permits and constraints.

130T Removable Gooseneck Trailer for Sale in Kenya

130T Removable Gooseneck Trailer for Sale

130T Removable Gooseneck Trailer for Sale in Kenya

3 Line 6 Axle Removable Gooseneck Trailer for Sale

130T Removable Gooseneck Trailer for Sale in Kenya

3 Line 6 Axle Removable Gooseneck Trailer for Sale

130T Removable Gooseneck Trailer



Specification:

Overall dimension:17000mm * 3000mm *2500mm

Loading capacity(T): 50-150T

Axle: 3 line 6 axle

Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

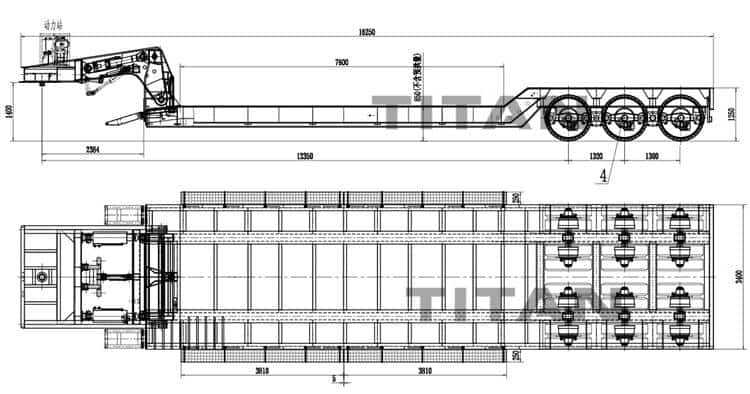

130t Gooseneck Trailer drawing

Advantage:

1. The lower working platform height for the transport of high and voluminous loads.

2. TITAN lowboy trailer is with high tensile structure steel with tensile and durable construction.

3. Main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition.

4. The loading ramps are made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

5. The suspension ensure its have high loading capacity, and increase its capacity to twisting forces, shock, bump.

6. World famous brand spare part, ensure high quality and save costs.
