150T Low Bed Gooseneck Trailer

150T Low Bed Gooseneck Trailer Product Description:

150T Low Bed Gooseneck Trailer offers a smooth behind the wheel experience when hauling intense loads. Since these trailers attach to the rear axle area of towing vehicles, this configuration promotes better weight distribution during transit. Gooseneck trailers give you the opportunity to make narrow turns, stay balanced when driving on uneven terrains and carry heavier loads.

The biggest advantage of a gooseneck trailer over a bumper pull is its stability. Since the tongue weight of the trailer is over the truck’s rear axle instead of at the back of the frame, the potential of the trailer to sway is minimized. This increased stability also means gooseneck trailers can accommodate more weight and be larger than a bumper pull trailer. Goosenecks have more room for living quarters if you want them, as well as more room for any cargo you haul.

150T Low Bed Gooseneck Trailer for Sale

150T Low Bed Gooseneck Trailer for Sale

150T Low Bed Gooseneck Trailer for Sale

150T Low Bed Gooseneck Trailer , Low Bed Gooseneck Trailer for Sale , 4 Axle Low Deck Gooseneck Trailer, Fudeng Trailer, Fudeng Low Bed Gooseneck Trailer

Specification:

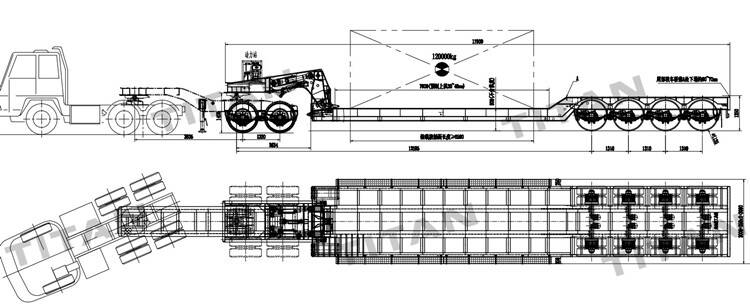

Overall dimension：17900mm * 2500+250*2mm *2200mm(platform 800mm)

Loading capacity:  150 ton

Axles：4 axles with 2 axles dolly

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

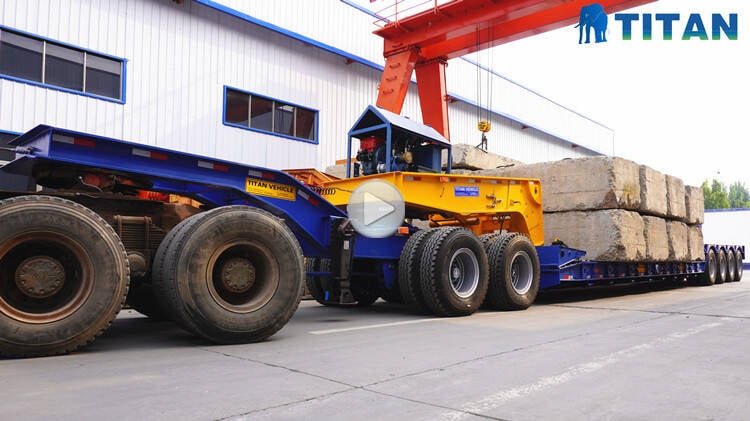

4 axle 150 ton detachable gooseneck lowboy trailer testing video display150T Low Bed Gooseneck Trailer , Low Bed Gooseneck Trailer for Sale , 4 Axle Low Deck Gooseneck Trailer, Fudeng Trailer, Fudeng Low Bed Gooseneck Trailer

Please click " TITAN Lowboy Trailer" to get the detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
