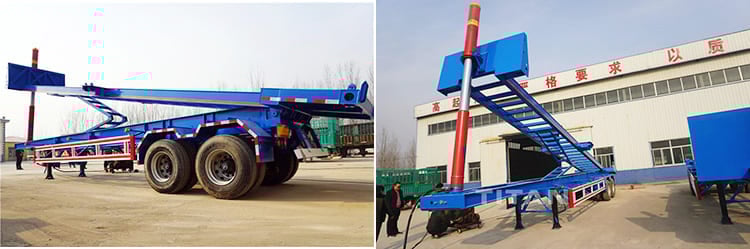

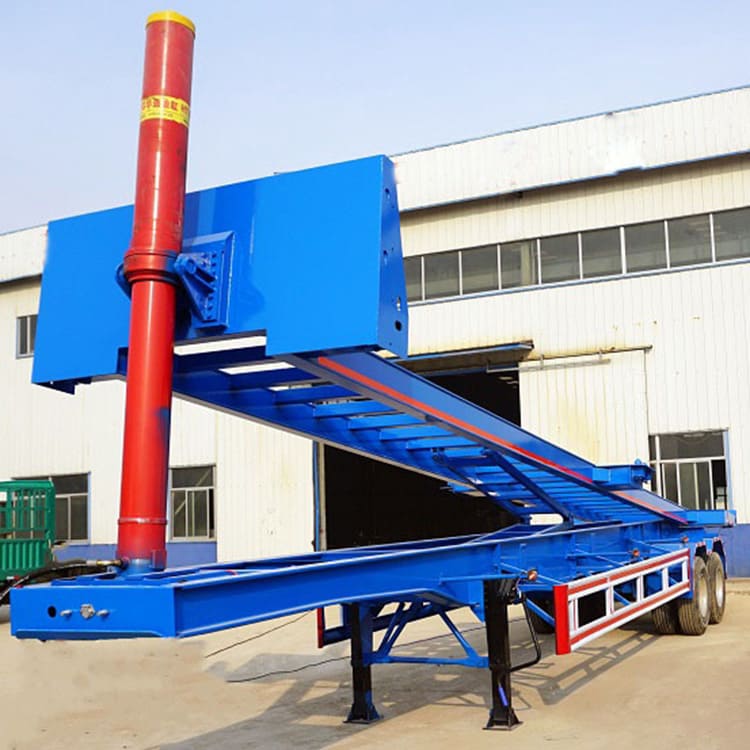

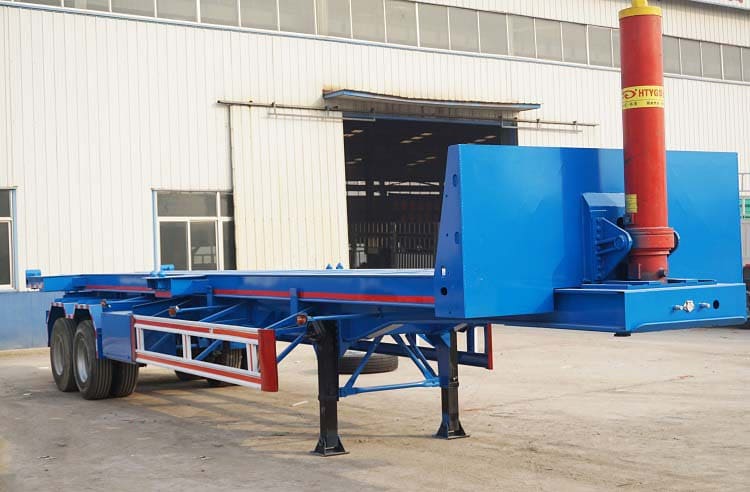

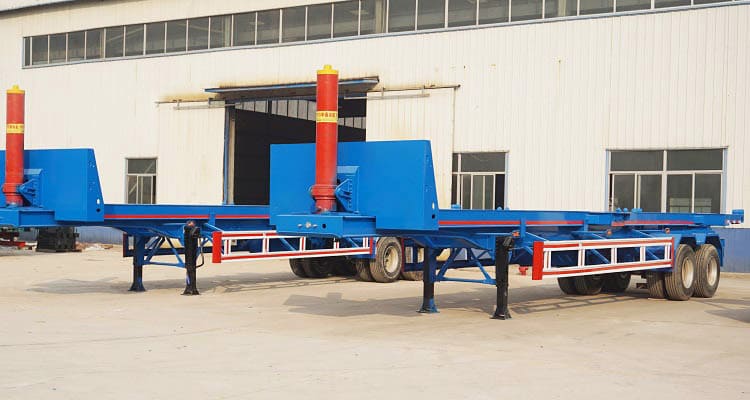

2 Axle 40 Ft Container Tipper Chassis Trailer

2 Axle 40 Ft Container Tipper Chassis Trailer Description：

The 2 axle 40 ft container tipper chassis trailer comes with a hydraulic lifting cylinder that contracts longitudinally to facilitate loading and on the other hand, they extend in an outward manner to enhance the offloading process.

TITAN adopts high strength steel, offering all the durability of high-tensile-strength steel and unique structure design to maximize payload to increase your profitability. Main parts, especially the stress point, 40ft Container Tipping Chassis for Sale adopt the reinforced design.

The 2 axle 40 ft container tipper chassis trailer could bear the bad road conditions. We reinforce the sides with high tensile strengthening rip and the channel steel reinforced enclosure shape design. The sides are welding molding which increasing the loading capacity. This type of trailer could be used for nearly 10 years.

2 Axle 40 ft Container Tipper Chassis Trailer for Sale Price

2 Axle 40 ft Container Tipper Chassis Trailer for Sale Price

2 Axle 40 ft Container Tipper Chassis Trailer for Sale Price

2 Axle 40 Ft Container Tipper Chassis Trailer Specification:

Overall dimension: 13000mm * 2500mm *2900mm

Loading capacity:  40T

Suspension：Heavy duty mechanical suspension

Tipping system: 196 hydraulic cylinder

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set
