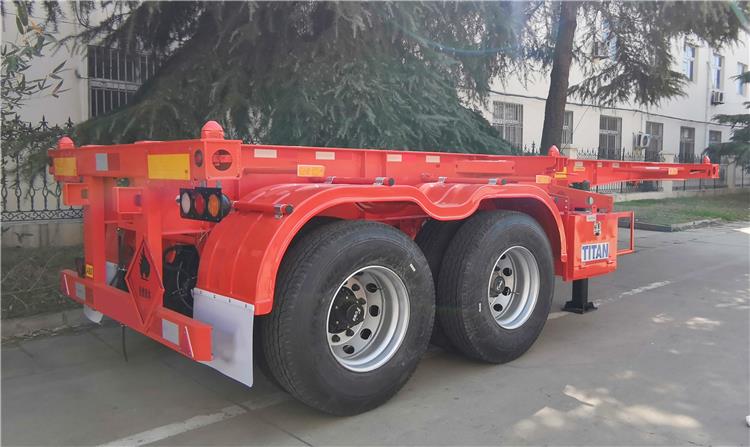

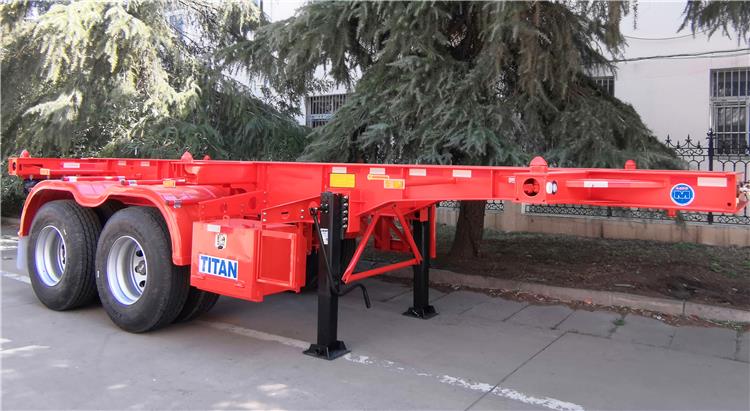

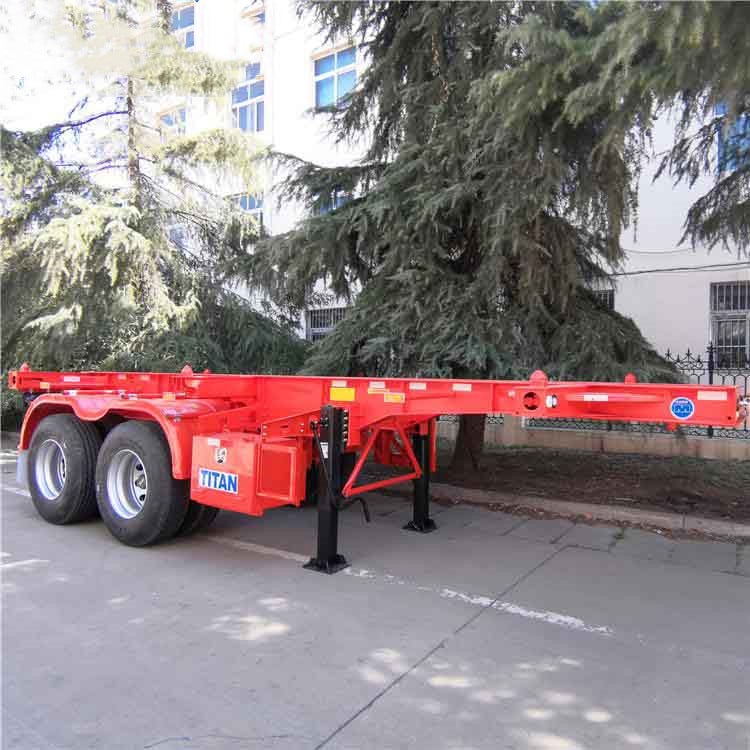

20ft Container Chassis for Sale

Product Description:

20ft Container Chassis for Sale to transfer goods, which can be directly packaged in the consignor’s warehouse, and then transported to the consignee’s warehouse for unloading. There is no need to remove the goods from the packing box and replace them during replacement or midway transportation.

TITAN container Chassis for Sale can be customized to 20/40/45/53 feet container chassis. We also provide customers with different options: 2 axles, 3 axles, 4 axles container chassis trailer, airbag suspension, spring steel suspension.

20ft Container Chassis for Sale near me in Mauritania Nouakchott

Container chassis Specifications:

Dimension(mm): 6200x2500x1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 13 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension or Air suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.
