17 meters 120 tons Lowboy Trailer
17 meters 120 tons Lowboy Trailer

17 meters 120 tons Lowboy Trailer

27000 USD

Different Parameters, Different Price. Price Reference Only.


3 line 6 axle lowboy trailer with the capacity of 120 ton for transport excavator and construction equipment, large machinery transportation.

SKU: 17 meters 120 tons Lowboy Trailer
GTIN: 06975766110369
MPN: TITAN9409005
Brand: TITAN

Product Description:

TITAN 3 Line 6 Axle Gooseneck Lowboy Trailer for transport excavator and construction equipment, large machinery transportation. We can make the 2/3/4/5/6 axles lowboy trailers, with the capacity of 60/80/100/120 ton.

With the low loading platform and voluminous loads trailers are in great demand, TITAN Front loading lowbed trailer the best solution for your transportation needs. TITAN detachable lowboy trailer are noted for their highly robust structure steel and high loading capacity from 60 ton load capacity to 150 ton load capacity.

To meet your transport needs and your local regulations, we can customize different configuration Hydraulic removable detachable gooseneck lowboy for you.

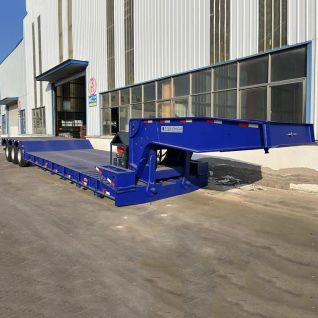

120T Detchable goosneck Trailer For Sale

120T Detachable gooseneck Trailer For Sale

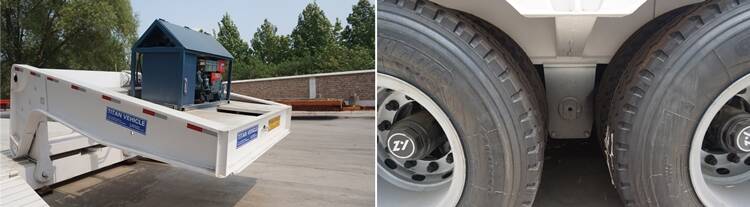

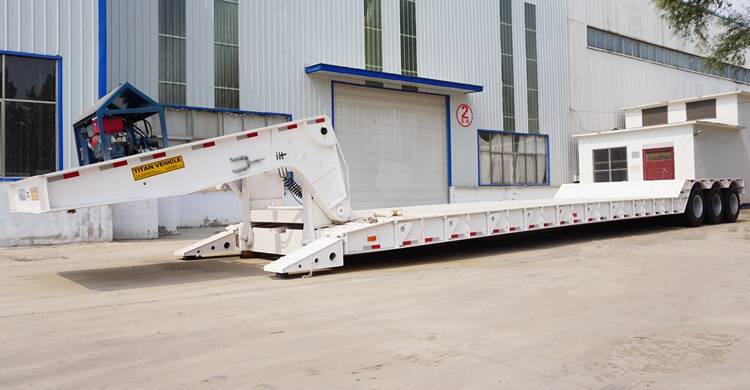

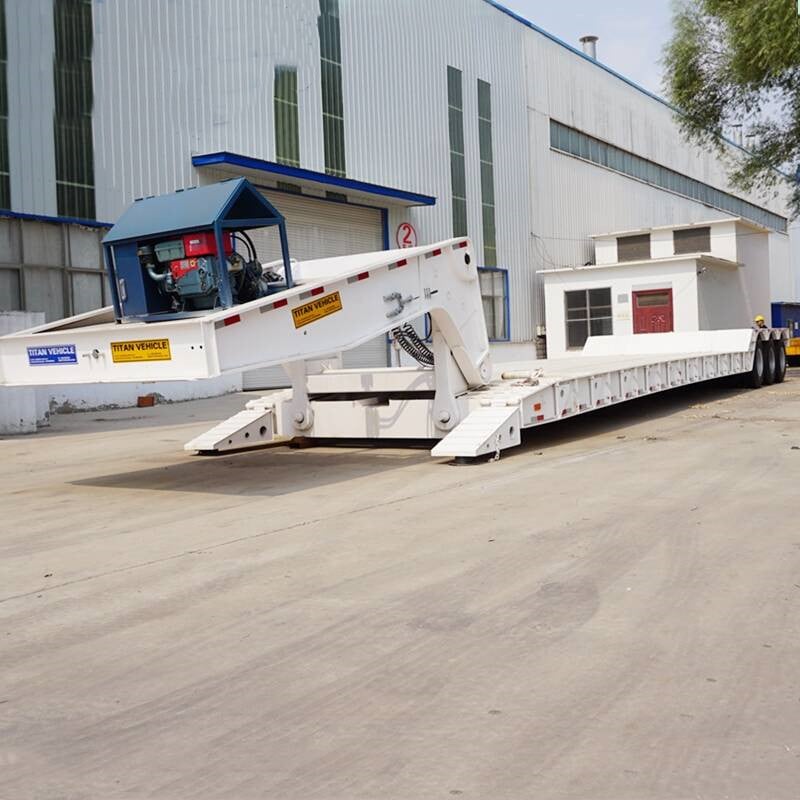

3 Line 6 Axle Gooseneck Lowboy Trailer

3 Line 6 Axle Gooseneck Lowboy Trailer

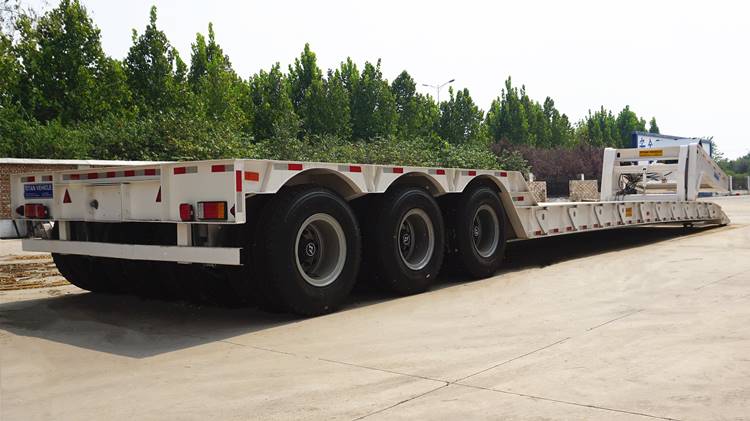

Details of Lowboy Gooseneck Trailer Price

Details of Lowboy Gooseneck Trailer Price

Drawing of Detachable Trailer



Overall dimension:17000mm * 3000mm *2500mm

Loading capacity:  120-150 ton

Axles:3 lines 6 axles

Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust



1. The lower working platform height for the transport of high and voluminous loads.

2. TITAN lowboy trailer is with high tensile structure steel with tensile and durable construction.

3. Main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition.

4. The loading ramps are made by high strength steel, with high loading capacity, will not happen to the deformation when carrying heavy equipment.

5. The suspension ensures it have high loading capacity, and increase its capacity to twisting forces, shock, bump.

6. World famous brand spare part, ensure high quality and save costs.


17 meters 120 tons Lowboy Trailer Display Video

17 meters 120 tons Lowboy Trailer

Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Lowboy semi trailer

Please click "TITAN Lowboy Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
