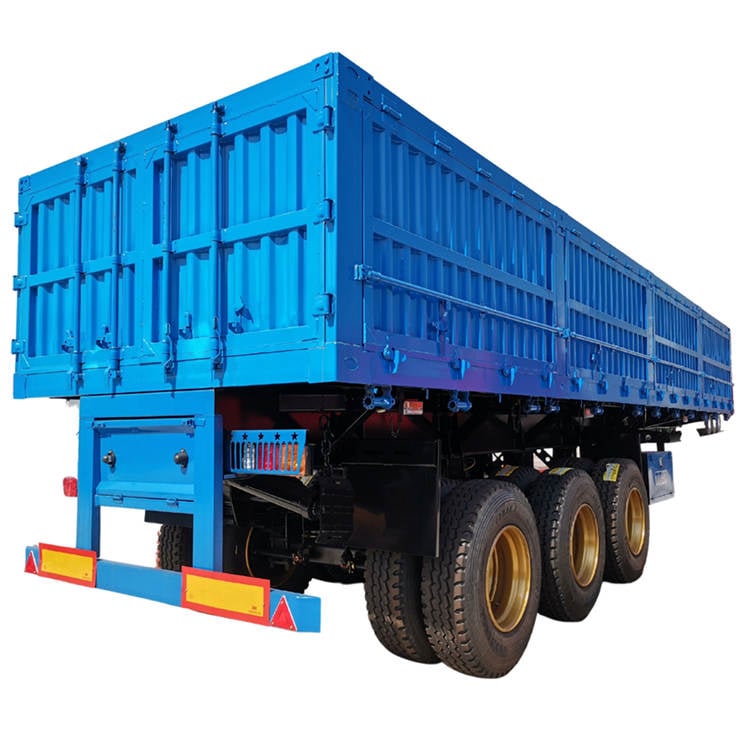

3 Axle Side Tipper Trailer

Product description:

3 Axle side tipper trailer can be used in many other fields such as construction, agriculture, etc. They have different shapes and types, which are divided into 3 axle side tipper trailer and rear tipping trailer. you can use side dump trailer to help save space. The load capacity of the side dump trailer may be greater than that of the rear tractor tipper trailer.

3 Axle side tipper trailer suitable for large workplaces, 3 axle side tipper trailermaximum carrying capacity can reach 80-100tons. Dropside side tipper trailer for sale is another type of dump truck, and it allows goods to be unloaded from the side. The main types of cargo transported by this semi-trailer are building materials, such as stone, sand, etc.

3 Axle 34 Ton Side Tipper Trailer for Sale with Low Price

34 Ton Side Tipper Trailer with Best Price

Details of Tri Axle 34 Ton Side Tipper Trailer

Specification:

Dimension: 11000mmx2500mmx3200mm

Lifting System: Lifting cylinder 5x130 bore, a shift cylinder

Axle: 3 axle 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 16mm, Material: T700 steel.

ABS: Optional

Valve: WABCO valve

Light: LED light (especially intended for overseas markets)

Voltage: 24V

Accessories: One standard toolbox, one rocker handle, one Shaft wrench

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of topcoats.

3 Axle Side Tipper Trailer Video

Through these videos, you can learn about different types of tipper semi trailer, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Tipper Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
