3 Axle 35CBM Tipper Dump Trailers
3 Axle 35CBM Tipper Dump Trailers

3 Axle 35CBM Tipper Dump Trailers

17500 USD

Different Parameters, Different Price. Price Reference Only.



3 Axle 35CBM Tipper Dump Trailers can transport the goods through the self-unloading function, and is widely used in the transportation of bulk and scattered goods such as coal, ore, and construction materials.

SKU: 3 Axle 35CBM Tipper Dump Trailers
GTIN: 06975766111250
MPN: TITAN9404004
Brand: TITAN

Dump Trailer Description:

TITAN 3 Axle Tipper Trailer's leaf spring is widened and thickened, the shock absorption effect is good, the suspension is widened, and the king pin is wider, which makes the vehicle more stable during driving.

TITAN 35CBM End Dump Truck Trailer for sale also adopts 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

3 Axle 35CBM Tipper Dump Trailers for Sale in Nigeria Apapa Near Me

3 Axle 35CBM Tipper Dump Trailers for Sale in Nigeria Apapa Near Me

3 Axle 35CBM Tipper Dump Trailers for Sale in Nigeria Apapa Near Me

3 Axle 35CBM Tipper Dump Trailers for Sale in Nigeria Apapa Near Me

3 Axle 35CBM Tipper Dump Trailers for Sale in Nigeria Apapa Near Me

3 Axle 35CBM Tipper Dump Trailers for Sale in Nigeria Apapa Near Me



Dump Trailer for Sale Specification:

Dimension: 9300mmx2500mm x3700mm (inside dimension)

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 38 ton

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set



Tipper Trailer Advantage:

1. Double-plate main beam for tipper semi trailer, which have a stronger carrying capacity, it is not easy to damage.

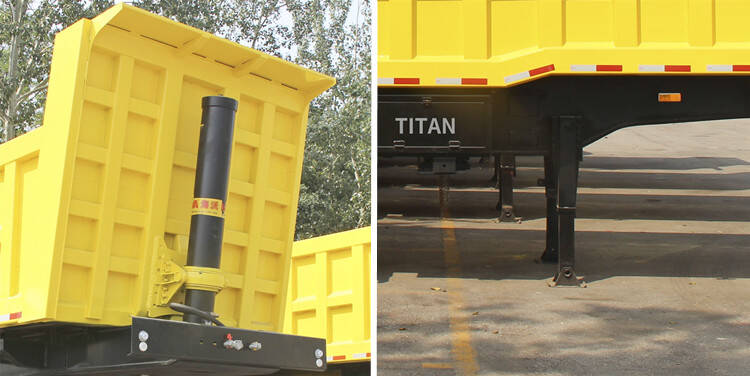

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.



Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.



tipper trailer



Please click " TITAN Tipper Semi Trailer" to get detailed videos!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!

Review

Chacuamba from Mozambique - 2022-04-19T15:04:24+0800
All aspects of delivery and transportation went smoothly. After receiving the 3 axle 35cbm tipper dump trailer, I checked it again and found no problems.
VICENT from Tanzania - 2022-03-31T17:03:16+0800
TITAN tipper trailer is very efficient at helping me transport and unload coals. It equipped with reliable hydraulic HYVA cylinder. Very stable when raising and lowering.
