3 Axle 40ft Skeletal Semi Trailer

3 Axle 40ft Skeletal Semi Trailer Product Description:

Container skeletal trailer is a special transport semi trailer used to transport containers.The container semi trailer determines the size of the loading position according to the size of the standard container, and is set at the position relative to the four corners of the bottom end of the container. Twisting and locking device for fixing containers, specially used for transport semi trailers for transporting containers.

The container skeletal trailer is a semi trailer that can transport containers and non-dangerous goods tank containers. It is mainly used in the logistics system of ships and multimodal transportation to support ports, routes, highways, transfer stations, bridges and tunnels.

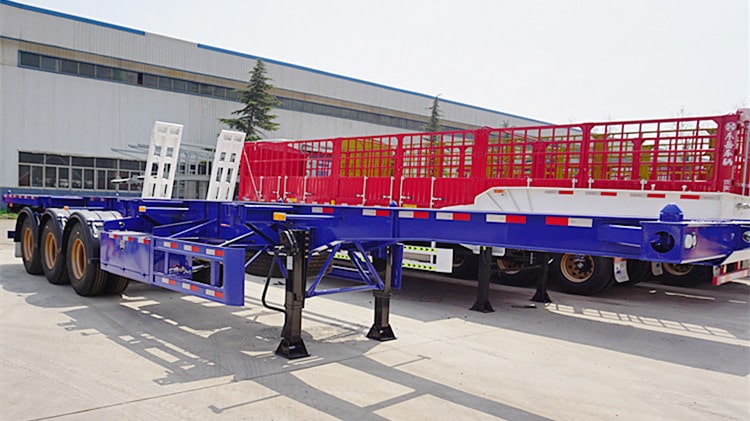

3 Axle 40ft Skeletal Trailer for Sale

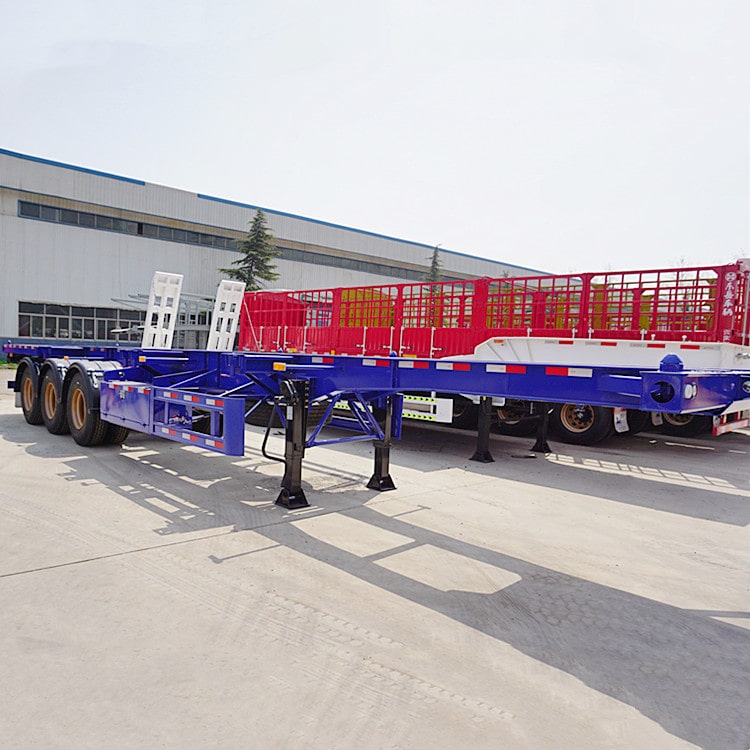

3 Axle 40ft Skeletal Trailer for Sale

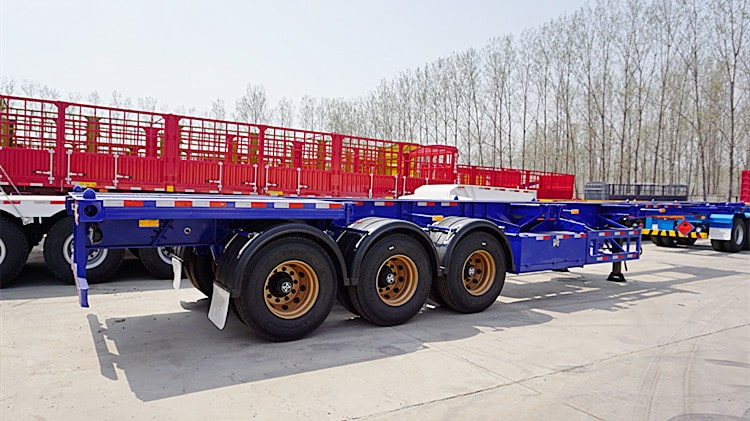

3 Axle 40ft Skeletal Trailer for Sale

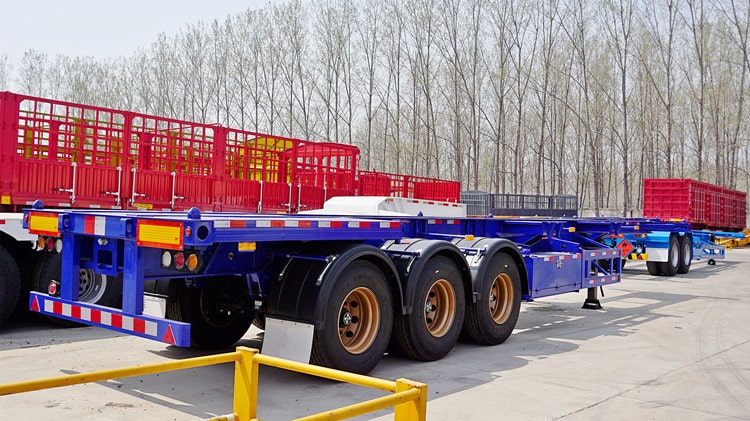

3 Axle 40ft Skeletal Trailer , 40ft Sekelal Semi Trailer , Skeletal Trailer for Sale

Specifications:

Dimension(mm): 12400x2500x1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 13 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension or Air suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container

3 Axle 40ft Skeletal Trailer , 40ft Sekelal Semi Trailer , Skeletal Trailer for Sale,

Through these videos, you can learn about different types of skeletal trailer etc.

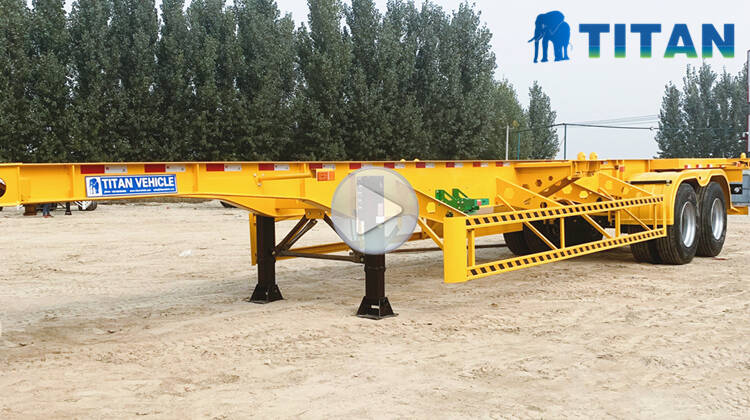

Please click " TITAN Container Skeleton Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
