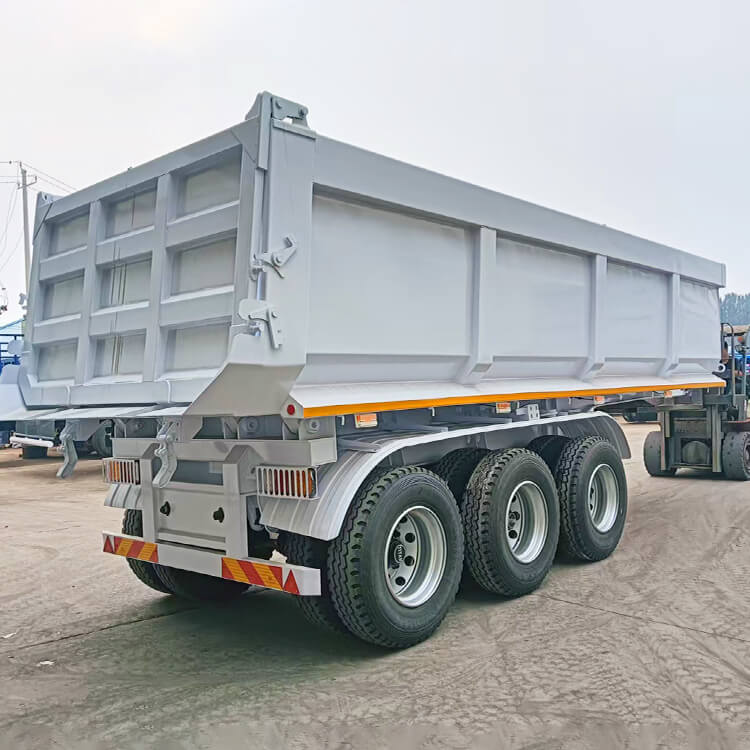

3 Axle Dump Semi Trailer

Video of Dump Semi Trailer

Description of Dump Semi Trailer

The Titan 3 axle dump semi trailer for sale in Chad is custom-engineered for high-intensity unloading operations involving large-particle ores, gravel, and construction materials. Built with high-strength wear-resistant steel and a heavy-duty chassis design, the trailer is paired with a multi-cylinder hydraulic lifting system to ensure exceptional structural stability and maximum operational uptime during long-distance haulage and frequent unloading cycles.

As an experienced heavy-duty semi-trailer export manufacturer, we deeply understand the demanding requirements that Chad's inland transport places on dump semi-trailer durability and ocean freight anti-corrosion protection. From welding and painting to rigorous pre-factory wax spraying and waterproof wrapping, we provide full-process photo and video updates. This allows customers to gain a clear, transparent view of our trailer production process, giving them complete confidence in their purchase.

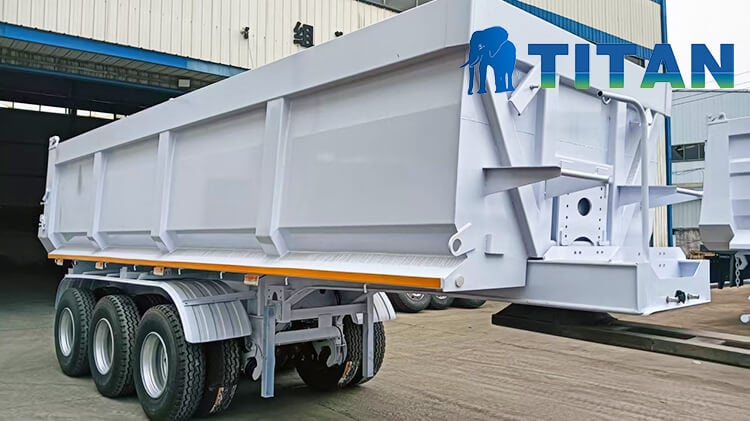

 Titan 3 Axle Dump Semi Trailer for Sale in Chad

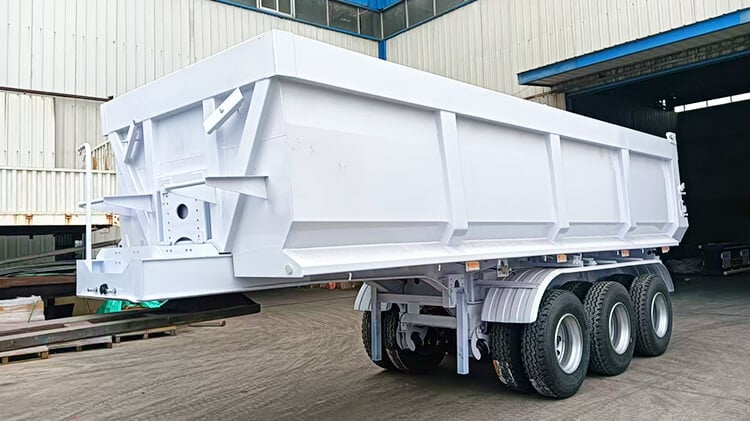

 Titan 3 Axle Dump Semi Trailer for Sale in Chad

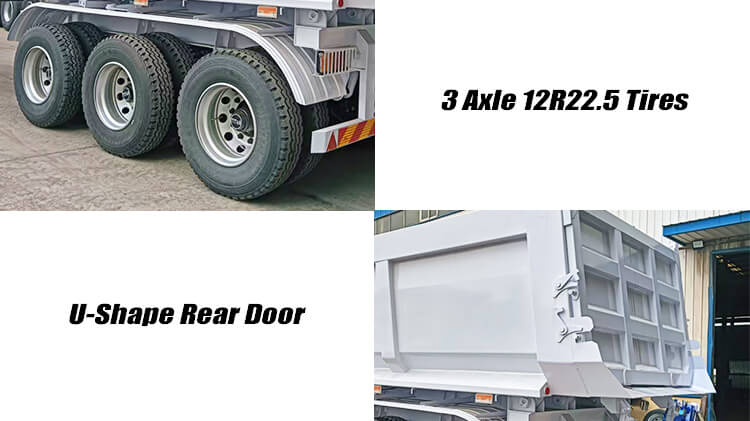

 Titan 3 Axle Dump Semi Trailer for Sale in Chad

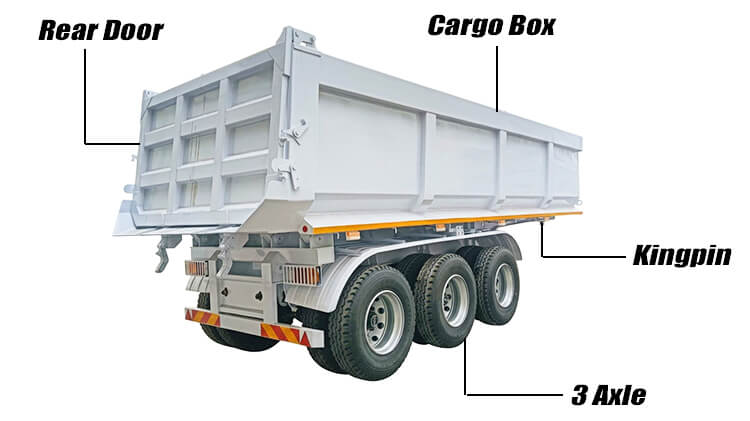

 Titan 3 Axle Dump Semi Trailer for Sale in Chad

Specification of Dump Semi Trailer

Dimension: 9300mmx2500mm x3482mm

Total volume: 30CBM

Lifting System: TITAN lifting cylinder

Axle: 3 Axle, 13T,BPW Brand

Tire: 12R22.5

Suspension: Mechanical suspension

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: 28 ton Landing Gear

Advantages of Dump Semi Trailer

1. The cargo box of this Titan 3 axle semi dump trailers for sale in Chad features a U-shaped high-strength wear-resistant structure. Constructed primarily from premium wear-resistant steel, both the side walls and bottom plate are thickened and reinforced. The U-shaped structure not only lowers the center of gravity and prevents material residue during dumping, but also effectively absorbs the impact of large ores, significantly extending the service life of the box body.

2. The chassis main beams of this Titan 3 axle semi dump trailers for sale in Chad utilize a heavy-duty dual-longitudinal beam and reinforced crossmember layout design, endowing the entire vehicle with exceptional bending and torsional rigidity. Even when fully loaded on Chad's rugged, unpaved mining roads, the frame maintains outstanding structural integrity.

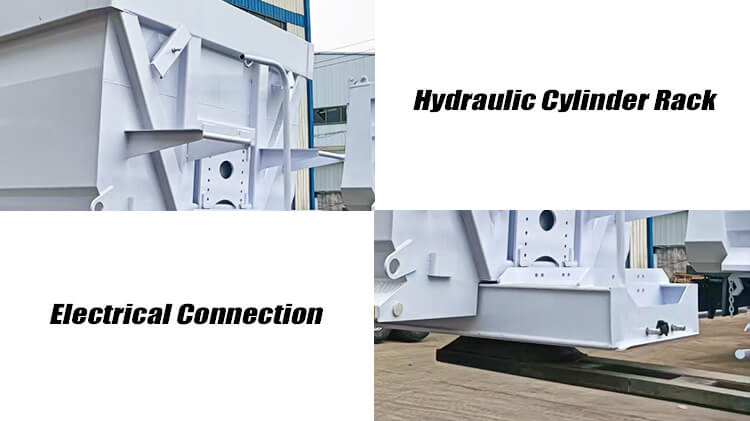

3. This Titan 3 axle semi dump trailers for sale in Chad can be equipped with a genuine HYVA hydraulic lifting cylinder, delivering powerful, stable lifting force and ultra-fast unloading speeds. The lifting process is smooth and stable; paired with multiple safety protections such as anti-explosion valves and limit valves, it effectively prevents sudden slippage or rollover accidents during discharge.

4. This Titan 3 axle semi dump trailers for sale in Chad adopts a combination of three 13-ton heavy-duty axles and a mechanical suspension, providing superior load capacity and ground adaptability. Paired with a four-circuit braking system and wide-profile tires, it ensures excellent braking performance and handling safety on muddy, bumpy roads, as well as during heavy-load downhill runs.

5. The rear tailgate of this Titan 3 axle semi dump trailers for sale in Chad is equipped with a dual-locking mechanism that eliminates dust and granular material leaks during transit. The trailer surface undergoes shot blasting for rust removal, followed by multi-layer anti-corrosion primers and high-adhesion topcoats. This enables it to effortlessly withstand high-humidity, high-salt ocean freight environments and Chad's intense ultraviolet radiation, greatly enhancing the trailer's anti-scratch and anti-corrosion performance.
