3 Axle Low Bed Trailer

Video of Titan 3 Axle Low Bed Trailer

Description of Titan 3 Axle Low Bed Trailer

Our titan 3 axle low bed trailer for sale in Tanzania features a high-strength, lightweight structural design that significantly reduces chassis weight while maintaining excellent overall load-bearing capacity. This scientific weight-reduction design not only reduces fuel consumption and tire wear when the trailer is empty, but also legally increases the effective payload capacity, helping logistics companies and engineering contractors achieve higher transportation efficiency.

Our titan 3 axle low bed trailer for sale in Tanzania incorporates a wide gooseneck layout, extendable/expandable devices, and container locking, realizing a multi-purpose transportation concept. The ultra-low platform combined with the widened gooseneck structure results in a lower center of gravity and greater stability when cornering. It can easily carry heavy construction machinery such as excavators and bulldozers, and can also safely transport oversized equipment and ISO standard containers, perfectly handling various complex and harsh road conditions.

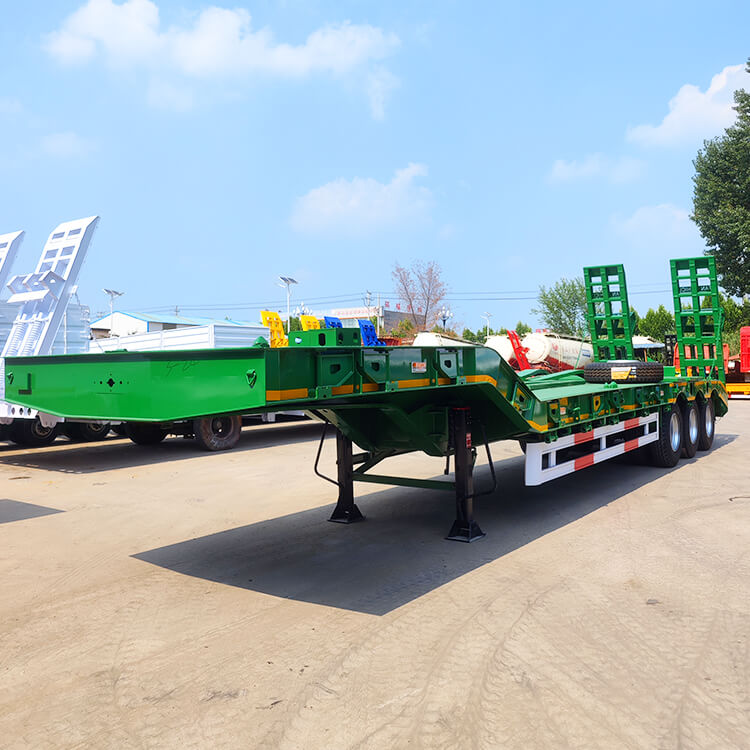

Titan 3 Axle Low Bed Trailer for Sale in Tanzania

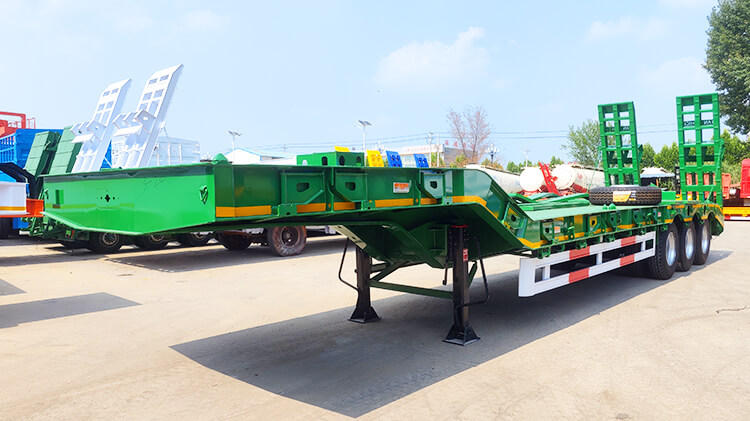

Titan 3 Axle Low Bed Semi Trailer for Sale in Tanzania

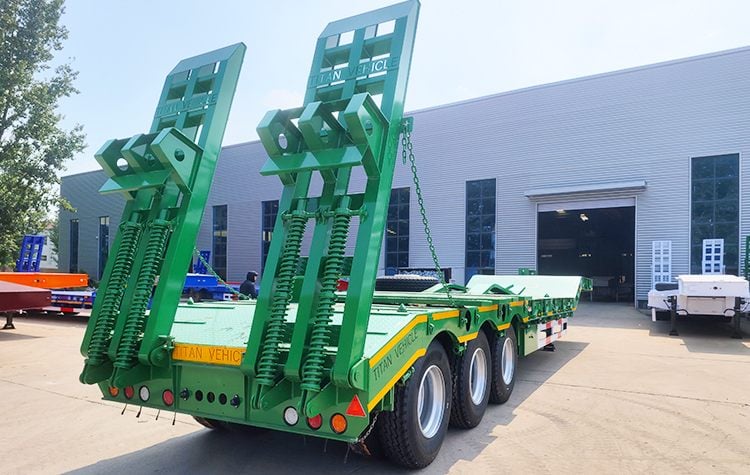

Titan 3 Axle Low Bed Semi Trailer for Sale in Tanzania

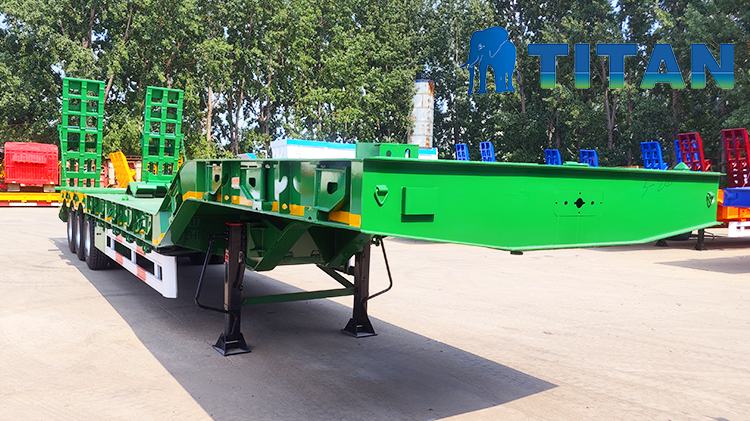

Titan 3 Axle Low Bed Semi Trailer for Sale in Tanzania

Specification of Titan 3 Axle Low Bed Trailer

Loading capacity: 40 ton

Dimension: 13600mm * 2600mm *3768mm

Axles: 3 axles, TITAN Brand

Tire: 12 units,

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Landing gear: 28 ton

Ramp: Spring Ramp

Kingpin: JOST brand 2.0 or 3.5 inch

Valve: WABCO valve

Light: LED light

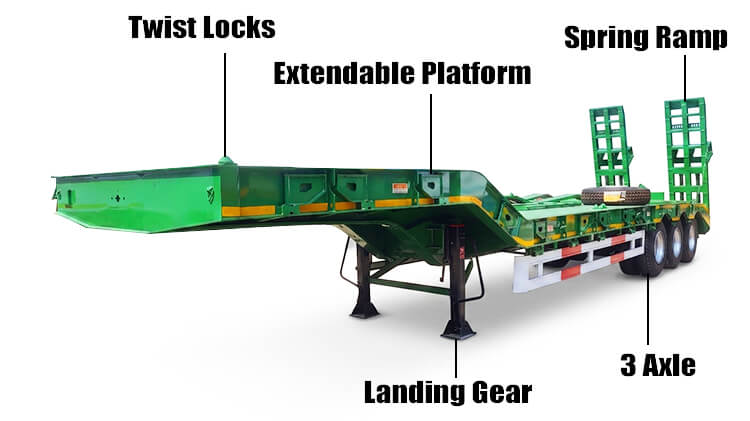

Advantages of Titan 3 Axle Low Bed Trailer

1. The main beams and key load-bearing components of this Titan 3 axle low bed trailer for sale in Tanzania are constructed from high-quality, high-strength steel, integrally formed through CNC cutting and automated submerged arc welding. While maintaining strong bending and torsional resistance, it reduces the trailer's weight, achieving a perfect blend of lightweight design and high durability, remaining robust and undeformed even under long-term high-load conditions.

2. This Titan 3 axle low bed trailer for sale in Tanzania utilizes a widened gooseneck structure, significantly increasing the effective load-bearing area and lateral support above the gooseneck, resulting in a more even load distribution when the tractor and trailer are connected. The gooseneck section can also serve as an additional cargo stacking platform, greatly increasing the cargo carrying area.

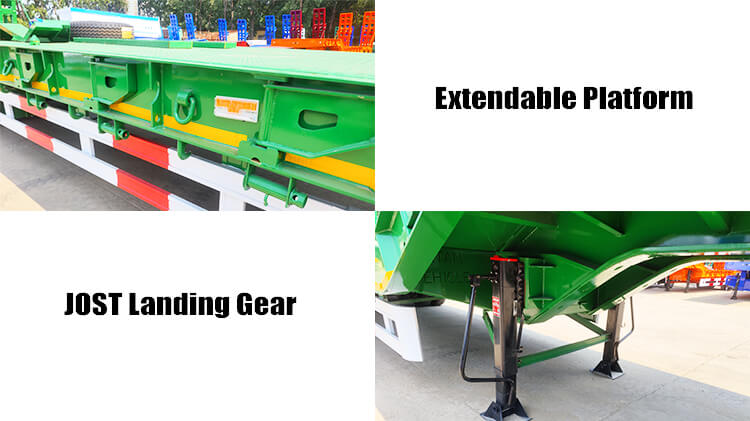

3. This Titan 3 Axle Low Bed Trailer for Sale in Tanzania features a heavy-duty expandable support platform on both sides. When transporting extra-wide construction machinery or large structural components, the platform width can be instantly expanded by deploying the expansion device and laying the accompanying steel plates. It can then be retracted to return to the standard width, greatly enhancing operational flexibility.

4. This Titan 3 axle low bed trailer for sale in Tanzania features multiple concealed container turnlocks strategically integrated around its platform. This design allows the trailer to quickly switch to container transport mode when not transporting machinery, securely securing 20-foot or 40-foot standard ISO containers, preventing empty trips and significantly improving overall equipment operational efficiency.

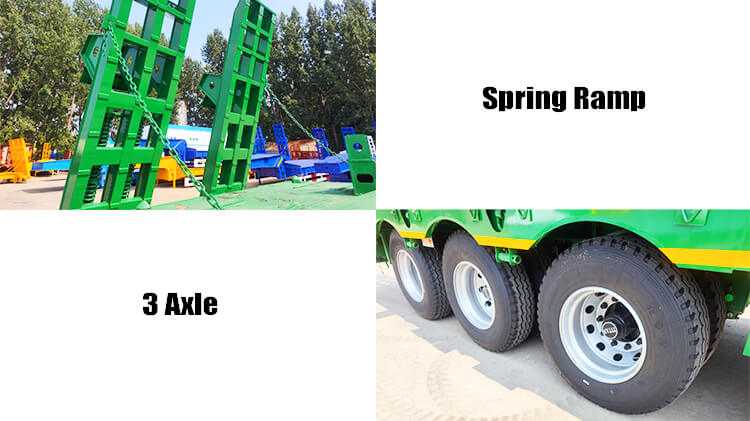

5. This Titan 3 axle low bed trailer for sale in Tanzania is equipped with three 13T heavy-duty axles, providing exceptional load-bearing capacity. The rear features a heavy-duty machinery ladder with built-in high-elasticity double springs, easily maneuverable by one person. The ramp design with anti-slip material ensures safe and smooth loading and unloading of tracked and wheeled heavy machinery.
