3 Axle Side Wall Trailer
3 Axle Side Wall Trailer

3 Axle Side Wall Trailer

10000 USD

Different Parameters, Different Price. Price Reference Only.



TITAN Vehicle adopts high strength steel material to manufacture the side wall trailer, it can make the trailer have a higher loading capacity and a longer service life.

SKU: 3 Axle Side Wall Trailer
GTIN: 06975766110260
MPN: TITAN9404025
Brand: TITAN

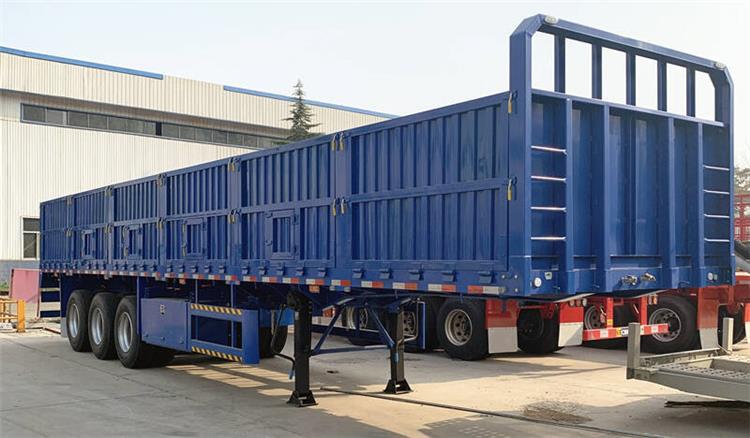

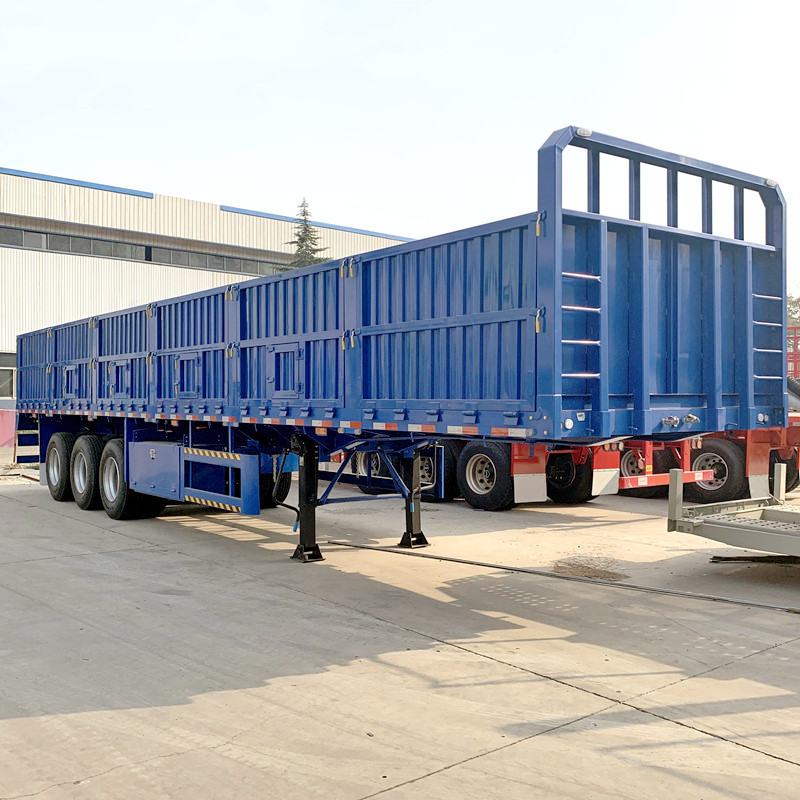

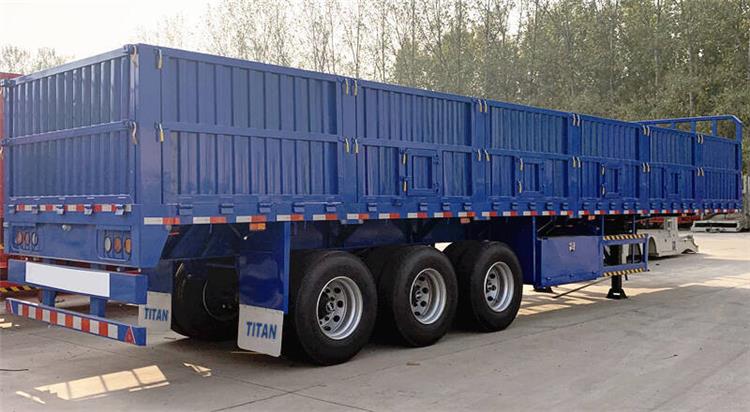

Product Description:

China side wall trailer was popular by logistics companies as its multipurpose application.It use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.

TITAN Vehicle adopts high strength steel material to manufacture the 3 axle side wall trailer, it can make the trailer have a higher loading capacity and a longer service life. And trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

China 3 Axle Side Wall Truck Trailer for Sale - TITAN Vehicle

China 3 Axle Side Wall Truck Trailer for Sale in Zambia - TITAN Vehicle

China 3 Axle Side Wall Truck Trailer for Sale - TITAN Vehicle

China 3 Axle Side Wall Truck Trailer for Sale in Zambia - TITAN Vehicle

China 3 Axle Side Wall Truck Trailer for Sale - TITAN Vehicle



Specifications:

Tare Weight: About 7.6T

Dimension(mm): 12500x2500x2750mm

Trailer Sides: 1200mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

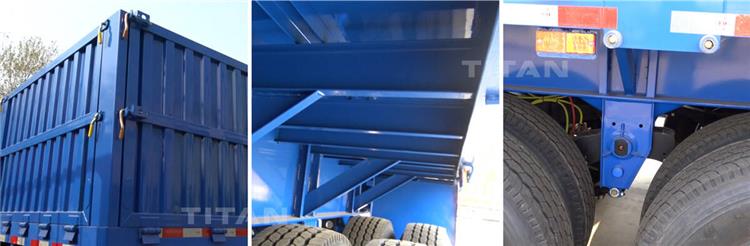

Advantages:

1. TITAN Vehicle adopts high strength steel material to manufacture the side wall semi trailer, it can make the sidewall trailer have a higher loading capacity and a longer service life.

2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

3. The cross beam and the side beam are enhanced, the down plate of the main beam and the bottom plate are all reinforced, it can ensure there is no curling during the using procedure.

4. The distance between two tilted supports is less than 50 centimeters, it can help the main beam have a better loading capacity.

5. Hight quality side wall, make sure the stable and safety of the loads.



Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.



Please click "TITAN Sidewall Semi Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!

Review

Edmore Mavhiya - 2021-06-21T09:06:06+0800
Best 3 axle side wall trailer i have ever bought. Good quality cuts and Cost-effective. Will Highly recommend again.
